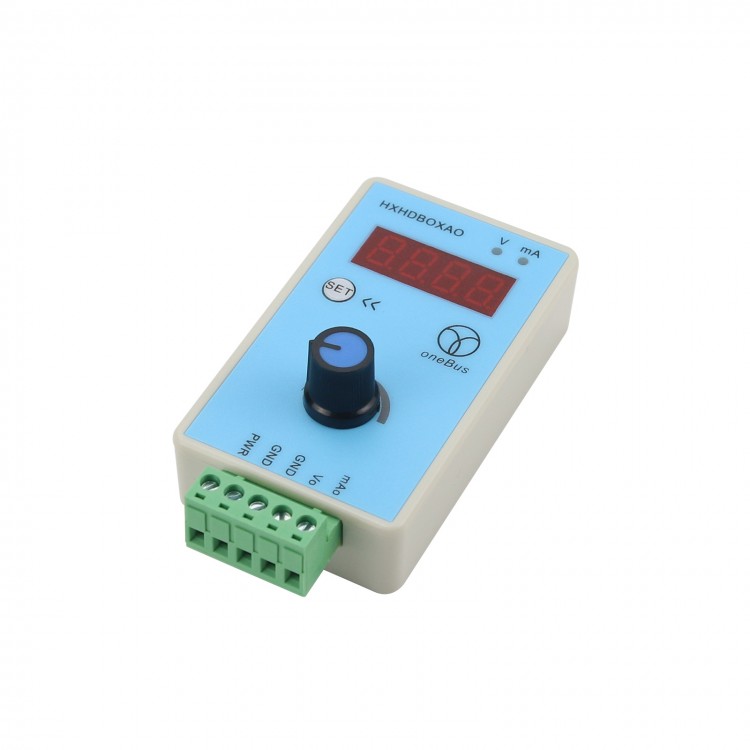

Handheld Signal Generator Current Voltage Simulator 0-10V/2-10V 0-20mA/4-20mA Analog Output
Features:
1. Terminal port power supply, also can use MICRO USB port power supply.
2. Terminal port power supply voltage range: DC 5~25V, anti-reverse connection and surge protection, maximum power consumption: 24V/50mA.
3. MICRO USB port supply voltage range: DC 4~6V, maximum power consumption: 5V/250mA; can use mobile phone charger, computer USB, power bank for power supply.
4. 1 channel analog output, optional voltage type (output range 0/2-10V) or current type (output range 0/4-20MA).
5. Voltage-type output load impedance requirements ≥2KΩ, current-type output impedance requirements ≤500Ω.
6. Voltage-type output, current-type output and display can be switched via SET button; adjust analog signal via knob.
7. Size: 85*50*22mm
Indicator Description:
V (red) is bright, output is 0-10V voltage signal; flashing, output is 2-10v voltage signal.
mA (green) is bright, output is 0-20mA current signal; flashing, output is 4-20mA current signal.
Port Description:
MICRO USB: power supply voltage range: DC 4~6V, can use mobile phone charger, computer USB, power bank for power supply
PWR: connect to DC 15-27V supply positive
GND: power and signal ground
GND: power and signal ground
V0: voltage-type analog output interface
mA0: current-type analog output interface

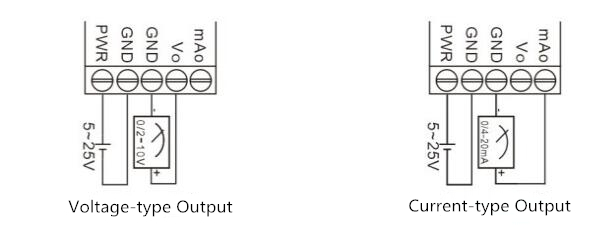

Wiring diagram of terminal port power supply (when the USB port is powered, the terminal port power supply is cancelled)
Package List:
1 x Signal Generator
