HANMATEK DOS1104 Standard Set Digital Oscillator 110MHz 4-Channel 1GS/s Oscilloscope with 7-inch TFT Screen
Specification:
- Model: DOS1104
- Bandwidth: 110MHz
- Rise time: <= 3.5ns
- Horizontal scale: 2 ns/div - 1000 s/div, step by 1 - 2 - 5
- Sample rate (real time): 1GS/s
- Display: 7-inch colored LCD, 65536 colors, 800 x 480 pixels
- Channel: 4 channels
- Max record length: 10K
- Sampling rate / relay time accuracy: ±100ppm
- Input coupling: DC, AC, GND
- Input impedance: 1Mohm±2%, in parallel with 20pF±5pF
- Max input voltage: 400V (DC + AC, PK - PK)
- DC gain accuracy: ±3%
- Vertical sensitivity: 5mV/div ~ 5V/div
- Trigger type: Edge, Video
- Trigger mode: Auto, Normal, Single
- Line/field frequency (video): support standard NTSC, PAL and SECAM broadcast systems
- Waveform math: +, -, x, /, FFT
- Waveform storage: 16 waveforms
- Communication interface: USB 2.0, USB flash disk storage
- Power supply: 100 - 240 VACRMS, 50/60Hz, CAT II
- Fuse: 2A, T class, 250V
- Host weight: 1.1kg

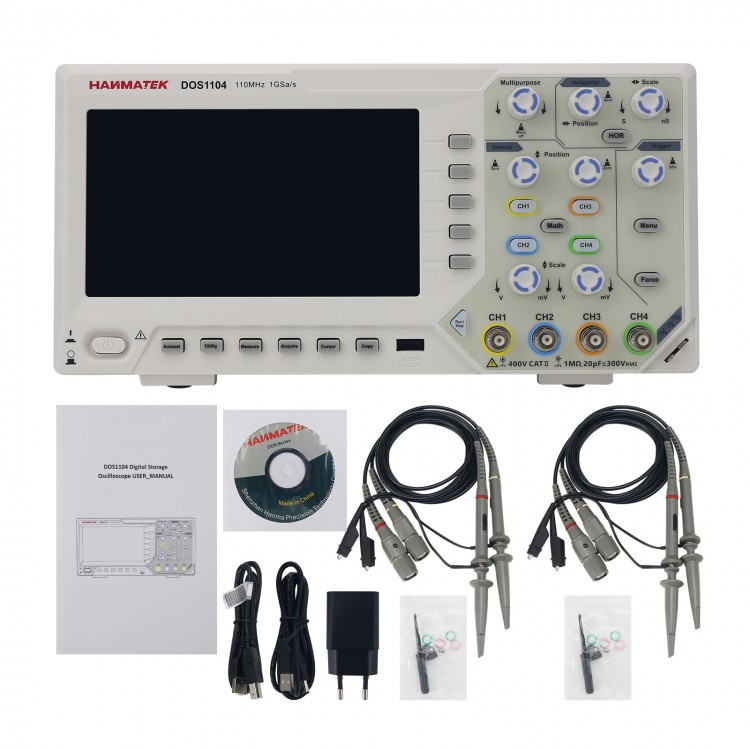

Package Included:
- 1 x Oscilloscope Set
