Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $227.59 | $222.94 | $215.97 | $206.68 | Contact US |

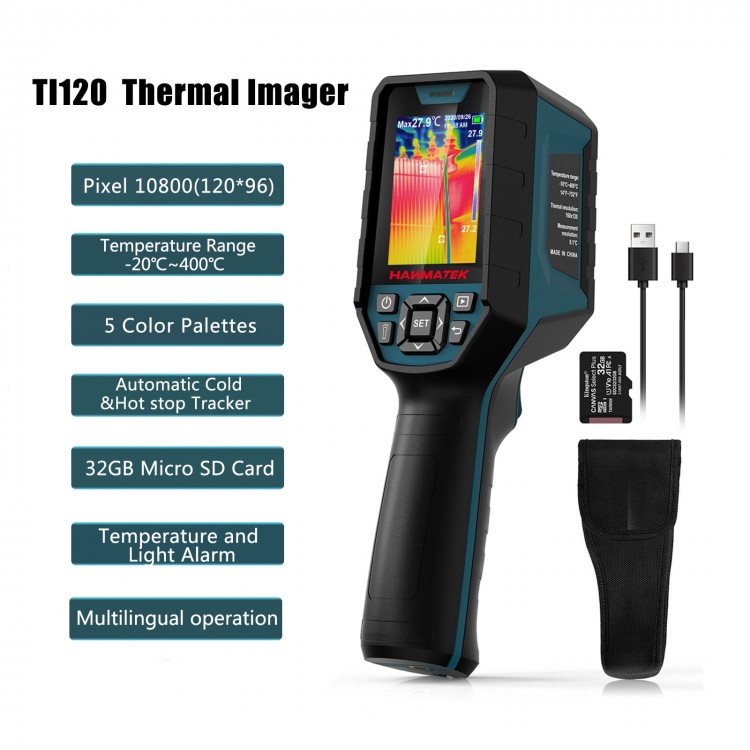

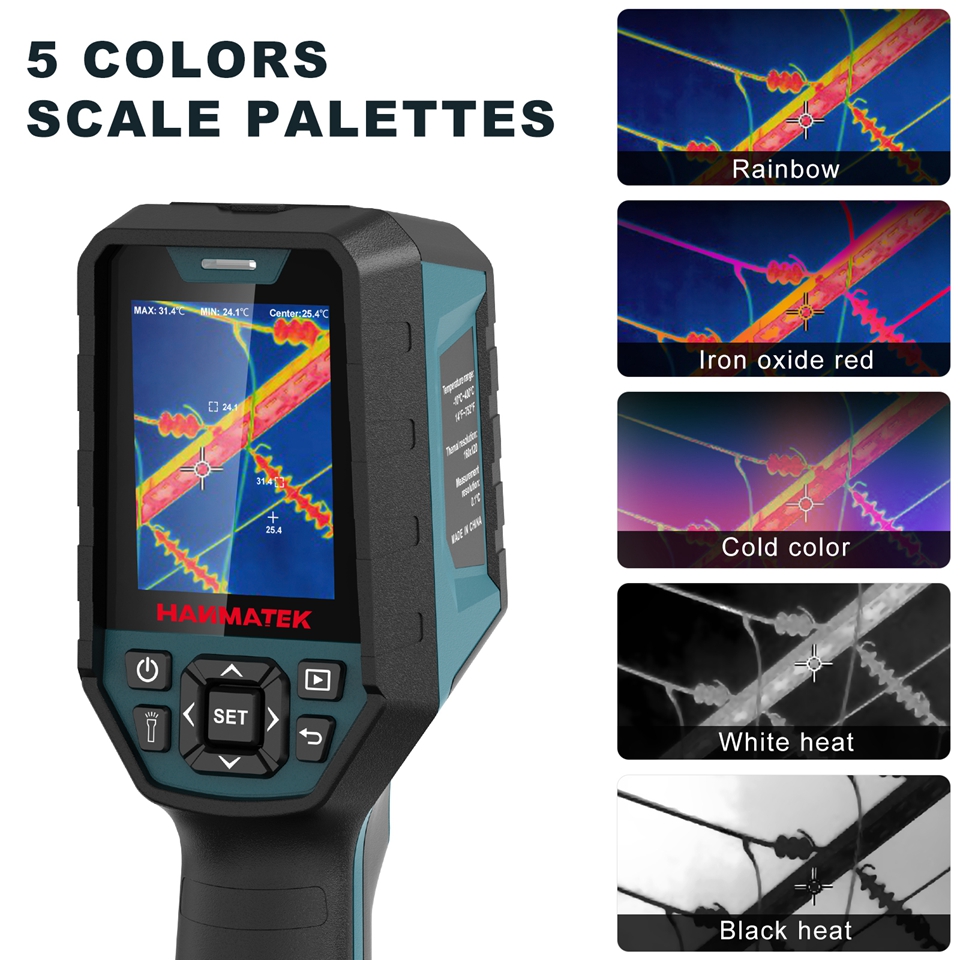

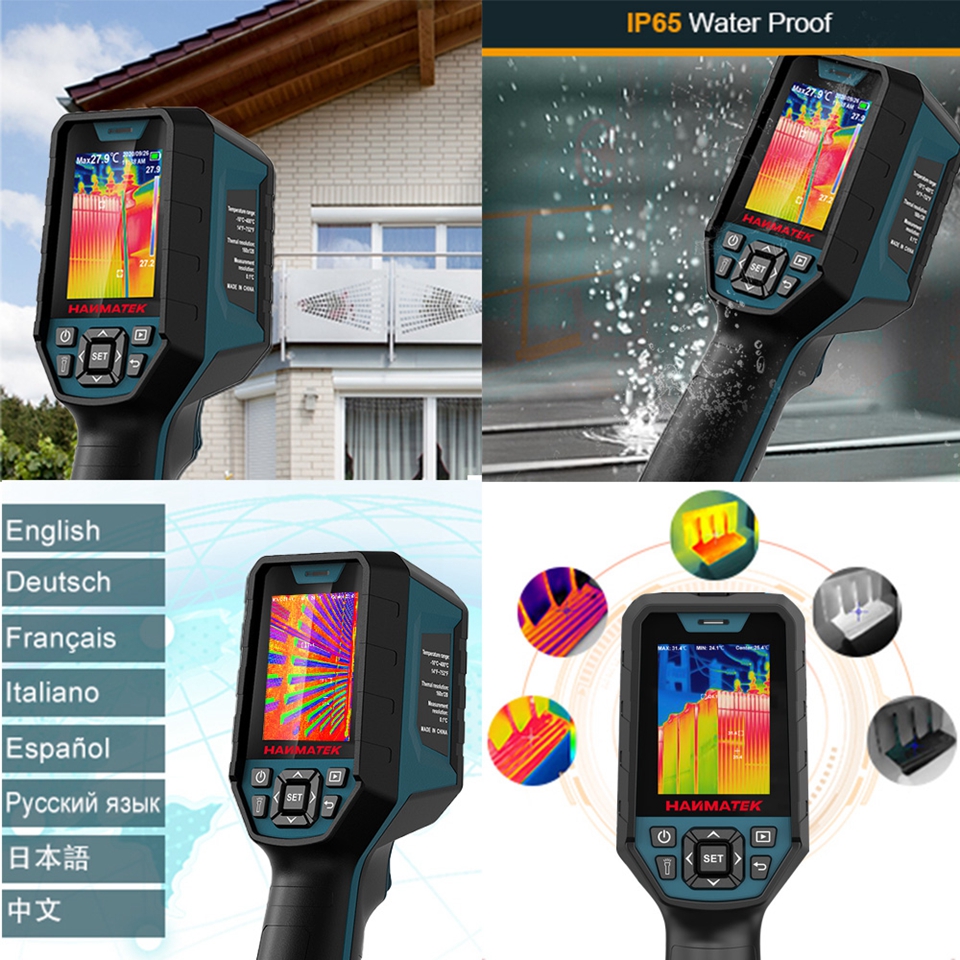

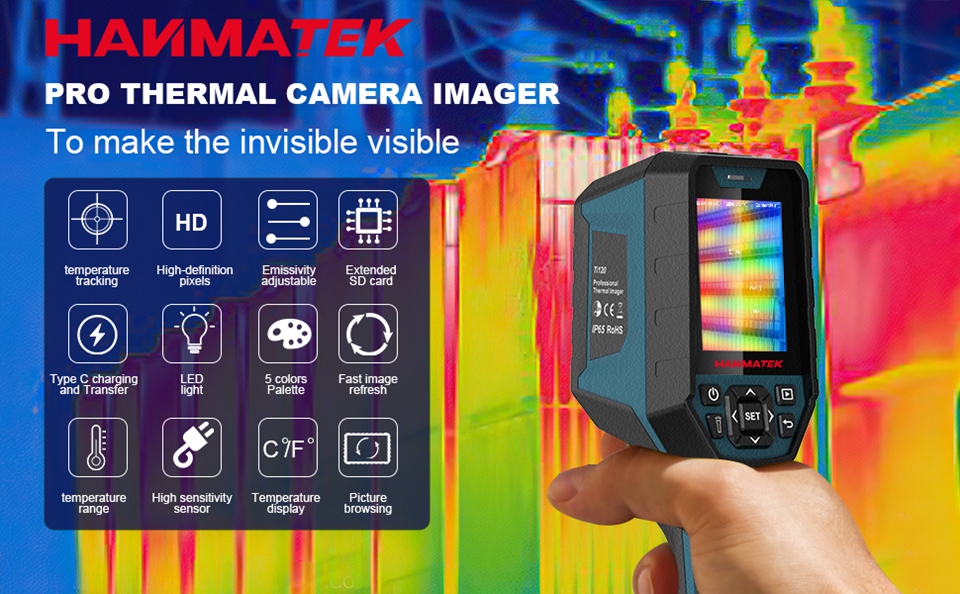

HANMATEK TI120 Thermal Imager with 5 Colors Scale Palettes for Temperature Tracking Thermal Imager Camera
Features:
- This product is versatile, rugged and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes.
Parameter:
- Infrared spectral bandwidth: 8~14um
- Thermal imaging pixel: 10800 (120 x 90)
- Thermal imaging sensitivity: ≤60mk
- Field of view angle (FOV): 50°(H) x 38°(V)
- Frame rate: ≤25Hz
- Accuracy: -10℃~400℃, the accuracy is ±2C or 2%: take the maximum value (normal temperature 25℃)
- Resolution ratio: 0.1℃
- Temperature measurement response time: ≤500ms
- Display type: 2.8’’ TFT LCD
- Display resolution: 320 x 240
- Image format: BMP
- Visible light lens: Yes

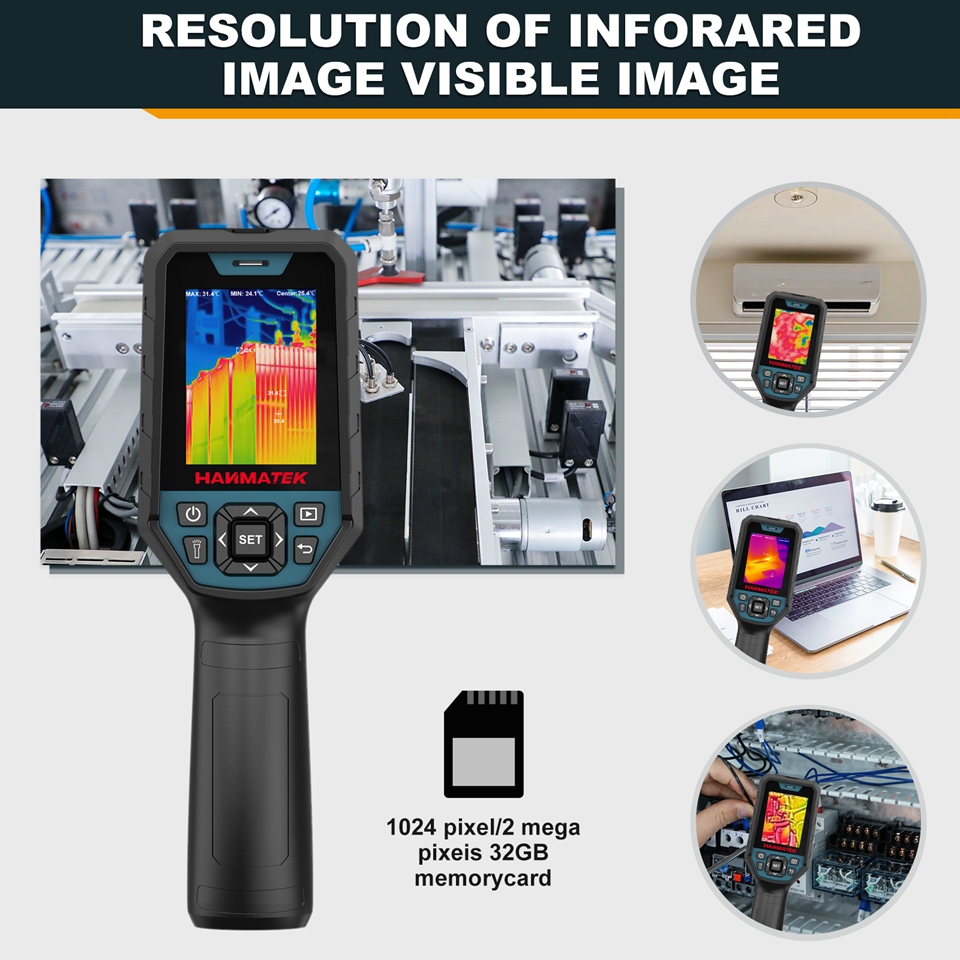

- Visible light resolution: 640 x 480
- Field of view angle (FOV): 8 degree
- Data communication: Type-C USB
- Battery: Li-ion 3.7V/5000mAh
- Service time: not less than 6 hours
- Charging time: ≤5 hours
- Charging voltage / Current: 5V/2A
- Storage temperature: -20~60℃ (-4~140°F)
- Working temperature: 0~50℃ (32~140°F)
- Working humidity: 90%RH (non-condensing)

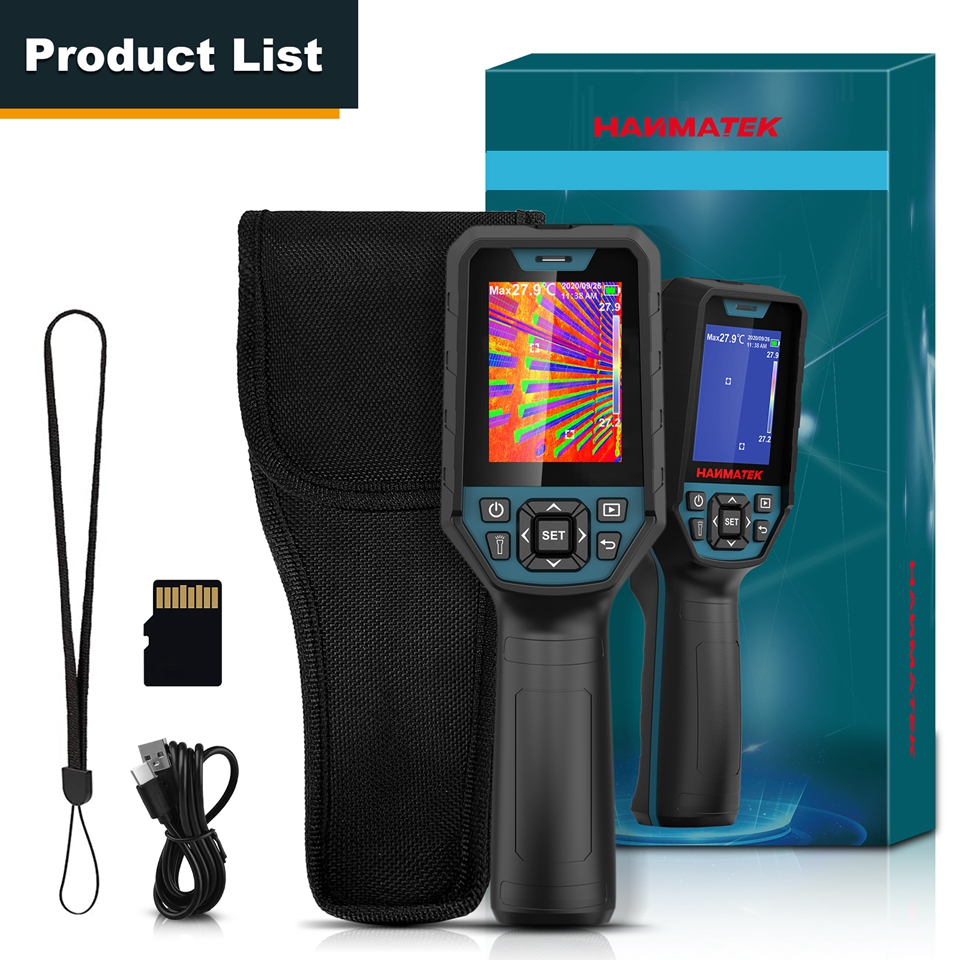

Package Included:
- 1 x Host
- 1 x USB Cable
- 1 x Storage Card
- 1 x Carrying Bag
- 1 x Lanyard
