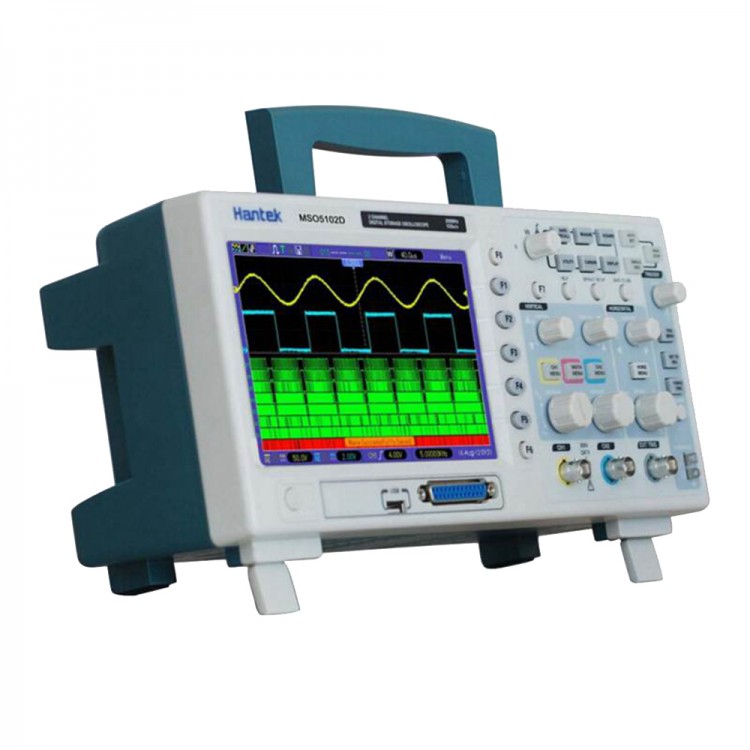

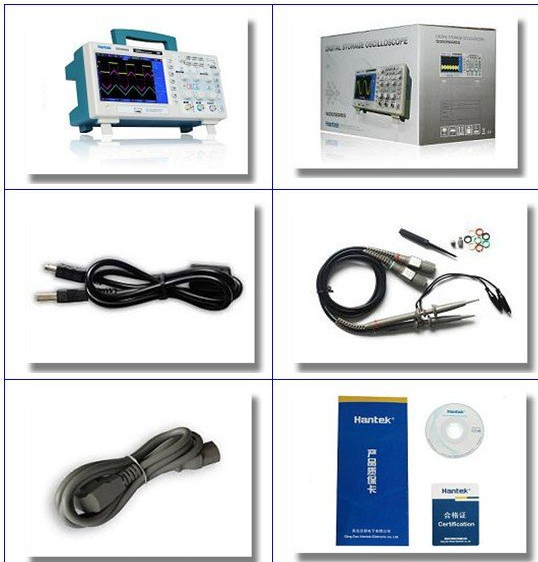

Hantek 100MHz MSO5102D Mixed Signal Digital Oscilloscope 16 Logical Channels+2 Analog Channels + External Trigger Channel
Feature
- MODEL: DSO5102B
- 16 channels logic analyzer + 2 channels oscilloscope + external trigger.
- Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
- 1GSa/s real time sampling rate.
- USB host, support flash memory card storage and USB interface system upgrade.
- Ultrathin design, handy volume, easily portable.
- VGA Optional
Oscilloscope Function
- Bandwidth 100MHz.
- Each channel record length up to 1M.
- Real time sampling rate up to 1GSa/s.
- Powerful trigger function.
- 32 kinds of automatic measurement function.
Logic Analyzer Function
- 16 channels divided into 2 groups which is able to setup threshold level individually.
- Real time sampling rate up to 500MSa/s.
- Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.
Specification
- Model MSO5102D
- Bandwidth 100MHz
- Channel 2
- Real-Time Sample 1GSa/s
- Equivalent Sample 25GSa/s
- Memory Depth 1M
- Rise Time 3.5ns
- Time Base Accuracy ±50ppm
- Time Base Range 8ns/div-40s/div
- Input Impendance 1MΩ
- VOLTS/DIV Range 2mV/div~5V/div
- A/D Converter 8 bit
- Position Range ±50V(5V/div), ±40V(2V/div~500mV/div),
- ±2V(200mV/div~50mV/div),±400mV(20mV/div~2mV/div)
- DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
- ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
- Bandwidth Limit 20MHz
- Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative,Code-type, Duration, Queue, Repeat
- Trigger Source CH1, CH2, EXT, EXT/5, AC Line
- Math +,-,x,÷,FFT
- Cursor Measurement Voltage difference between cursors: V;
- Time difference between cursors: T;
- Reciprocal of T in Hertz (1/ΔT);
- Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-- 2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH,FRF, - FFR, LRR, LRF, LFR, LFF
- Display 7"TFT 16K Color LCD, 800*480 dots
- Size 313mm x 108mm x 142mm
- Weight 2.08KG
- Standard Probe PP150x2
- Operating system:Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
