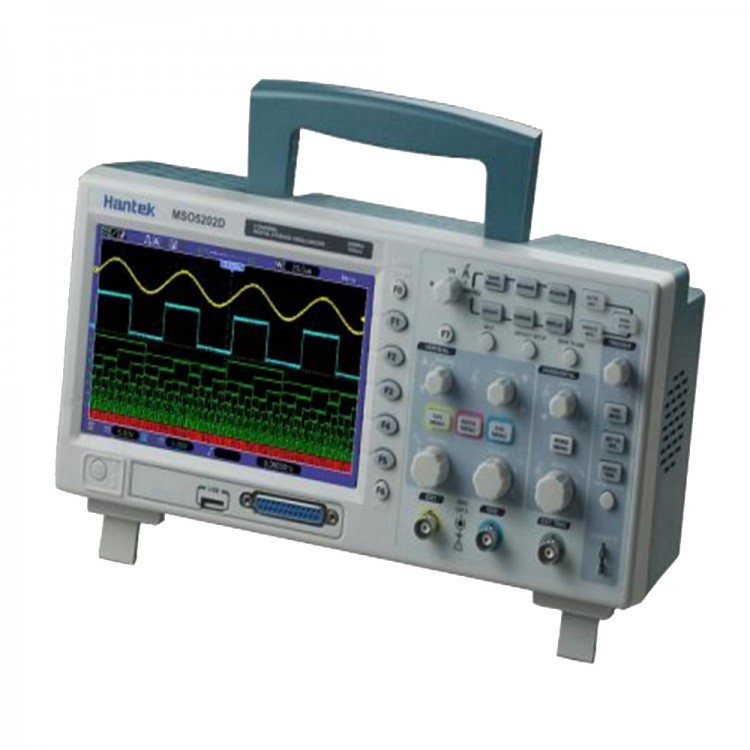

Hantek 200MHz MSO5202D Mixed Signal Digital Oscilloscope 16 Logical Channels+2 Analog Channels + External Trigger Channel
Feature
- 16 channels logic analyzer + 2 channels oscilloscope + external trigger.
- Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
- 1GSa/s real time sampling rate.
- USB host, support flash memory card storage and USB interface system upgrade.
- Ultrathin design, handy volume, easily portable.
- VGA Optional
Oscilloscope Function
- Bandwidth 200MHz.
- Each channel record length up to 1M.
- Real time sampling rate up to 1GSa/s.
- Powerful trigger function.
- 32 kinds of automatic measurement function.
Logic Analyzer Function
- 16 channels divided into 2 groups which is able to setup threshold level individually.
- Real time sampling rate up to 500MSa/s.
- Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.
