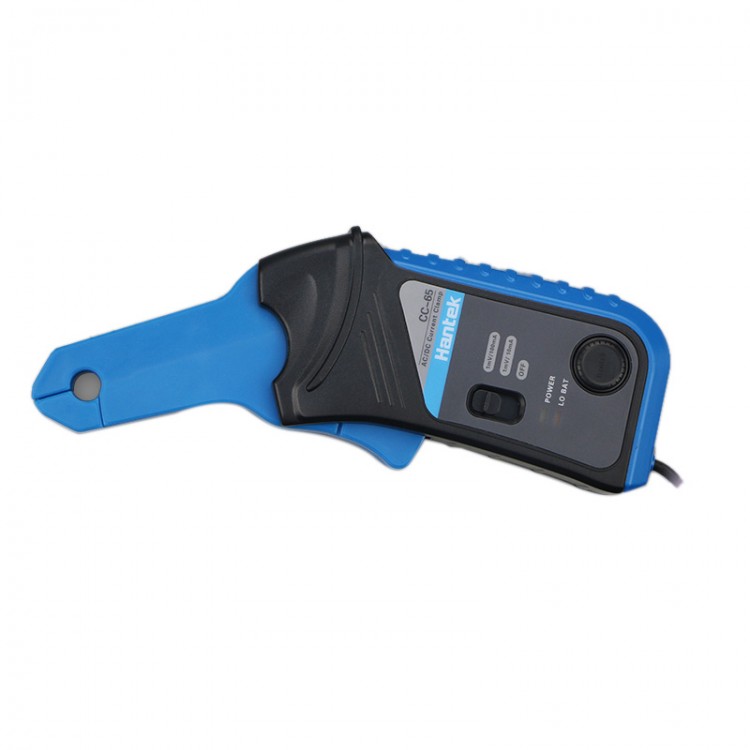

Hantek CC-65 400Hz 20mA-65A AC/DC Current Clamp Digital Multimeter with BNC Connector
Description:
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. When measuring AC/DC Current with the Current Clamp, a multimeter or scope can directly measure the current up to 65A, with a frequency uo to 20KHz. In this method, there is no need to break a circuit or to affect the isolation to measure the current.
Features:
- AC/DC frequency range: up to 20KHz.
- Effective measurement range: 20mA to 65A DC.
- Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
- Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.
- If connectting to an oscilloscope by BNC type connector, you're able to observe the current waveforms.
Application:
- Power circuit measurement and malfunction analysis;
- Motor drive of frequency converter (or other electronics) measurement;
- Power electronics equipment measurement.
Package included:
- 1 x Current Clamp
