Hantek DSO1202E 200MHz 1GSa/s 5in1 Oscilloscope Recorder DMM FFT Spectrum Analyzer Frequency Counter Digital Multimeter

Availability: In stock, usually dispatched in 1 business day

  • Price:$713.58
  • Price in reward points: 7136 Reward Points: 71
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $699.31 $685.04 $663.63 $635.09 Contact US
Quantity:

Hantek DSO1202E 200MHz 1GSa/s 5in1 Oscilloscope Recorder DMM FFT Spectrum Analyzer Frequency Counter Digital Multimeter

DSO1000E Series:

Five in one: Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter. IP-51 rated for dust, drip and shake proof to withstand harsh environments. Large fuse confirms to European Safety Standard. Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself. Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness. Replaceable BNC safety joints, and additional one set of joints. 1GSa/s sample rate, 2M Memory depth, 6000 counts DMM. Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)

Features:
- Five in one: Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter.
- IP-51 rated for dust, drip and shake proof to withstand harsh environments.
- Large fuse confirms to European Safety Standard.
- Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
- Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.
- Replaceable BNC safety joints, and additional one set of joints.
- High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
- 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer

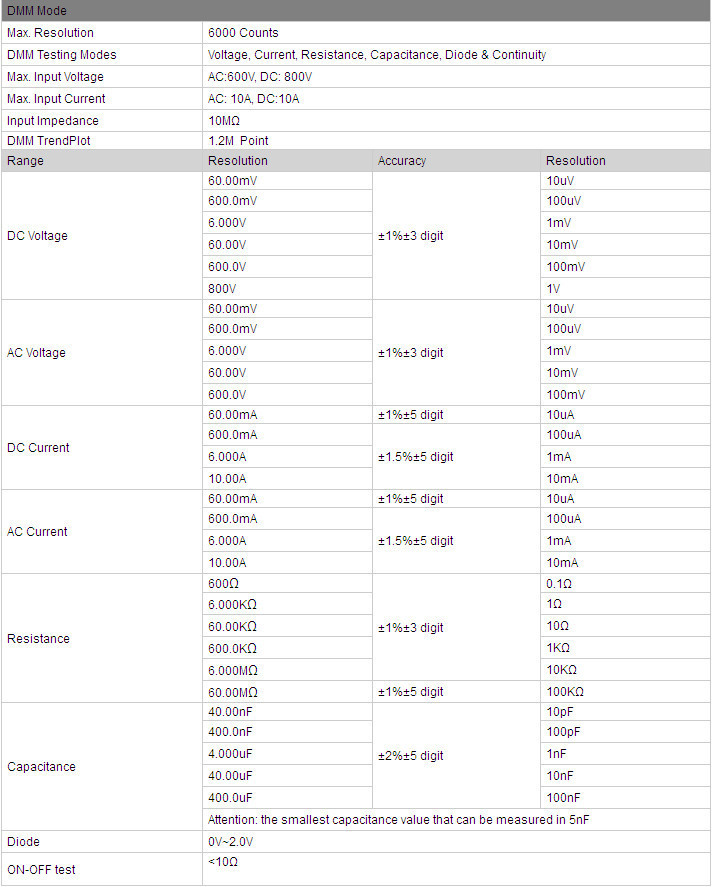

- 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
- FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.
- Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
- Record and replay of more than 1000 waveforms.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
- USB Host/Device 2.0 full-speed interface; support removable disk;  WIFI/LAN Option, easy to control by PC or long-distance.
- Waveform data can be output in WORD,EXCEL, BMP, JPG as time and voltage.
