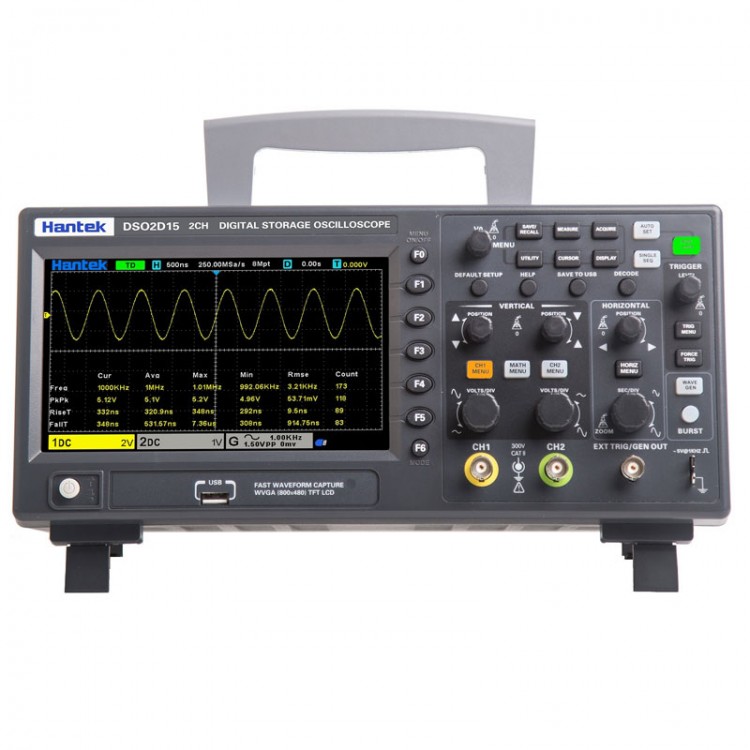

Hantek DSO2D15 Digital Storage Oscilloscope 2 Channel 150MHz 1GSa/S With 1CH AWG Signal Generator

Hantek DSO2D15 Digital Storage Oscilloscope 2 Channel 150MHz 1GSa/S With 1CH AWG Signal Generator

Model Comparison:


Features:
1) 2 channels are respectively controlled by independent knobs
2) 100MHZ or 150MHZ analog channel bandwidth
3) Sampling rate up to 1GSa/s
4) 8M memory depth
5) Vertical range 2mV/div ~ 10V/div
6) Built-in 1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output (only for DSO2D10, DSO2D15)
7) Vertical resolution: 8bit
8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
12) 32 kinds of automatic measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13) 2 sets of digital voltmeters
14) Support threshold testing, free measurements within the screen
15) Abundant SCPI remote command control
16) USB Host/Device

32 kinds of automatic measurements with statistics


Can save 10 sets of reference waveforms, CSV waveforms and settings. The USB one-click screenshot function.


2 sets of DVM, 3-digit digital voltage meter and 6-digit hardware frequency indicator functions


Serial bus trigger and decode, with the protocol monitoring function


8M memory depth, reducing waveform distortion and restore real waveforms


PASS/FAIL


Mathematical operation and FFT


X-Y format and display in dual windows


Technical Parameters:





Package Included:
- 1 x Set of Oscilloscope
