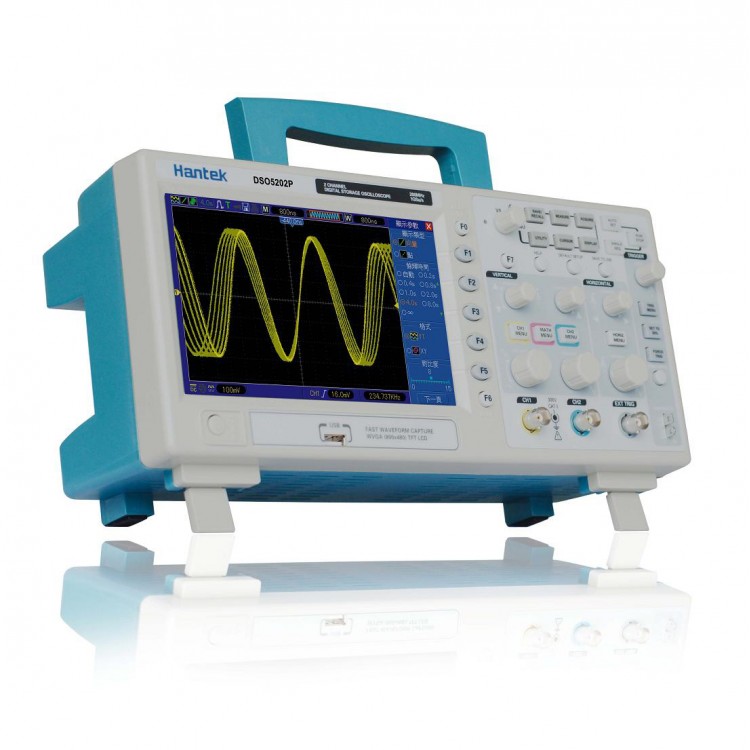

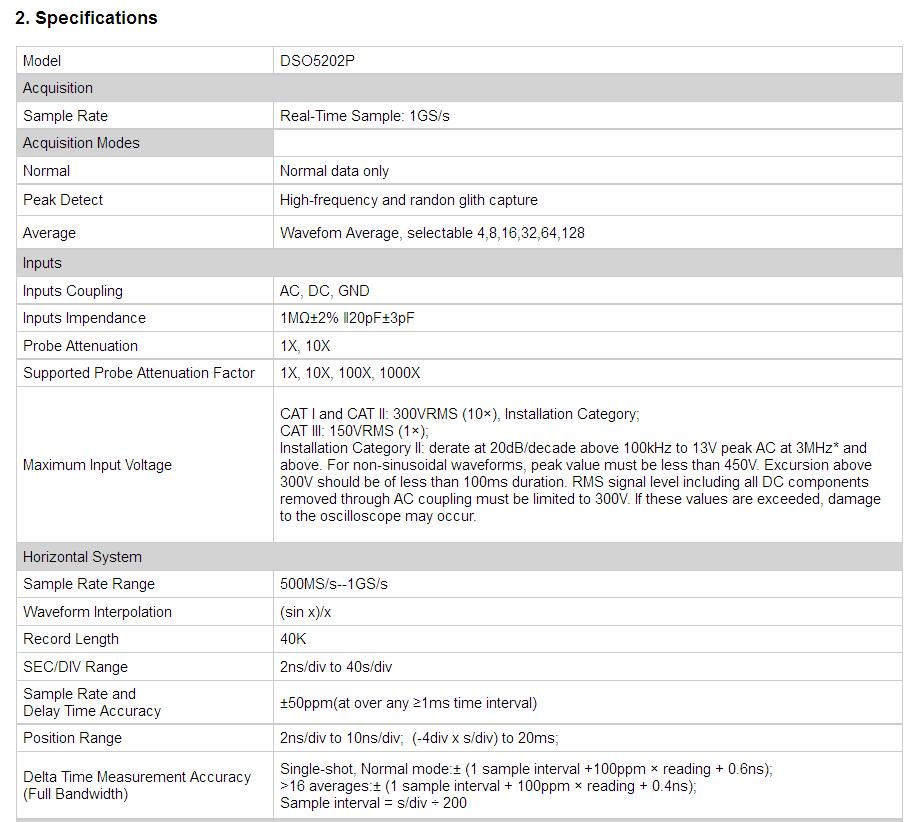

DSO5202P Description:
- Bandwidth:200MHz;
- 1GSa/s real time sample rate;
- Large (7.0-inch) color display, WVGA(800x480).
Feature:
- 200MHz bandwidths
- 1GSa/s Real Time sample rate
- Large (7.0-inch) color display,WVGA(800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- Provides software for PC real-time analysis
- VGA Optional

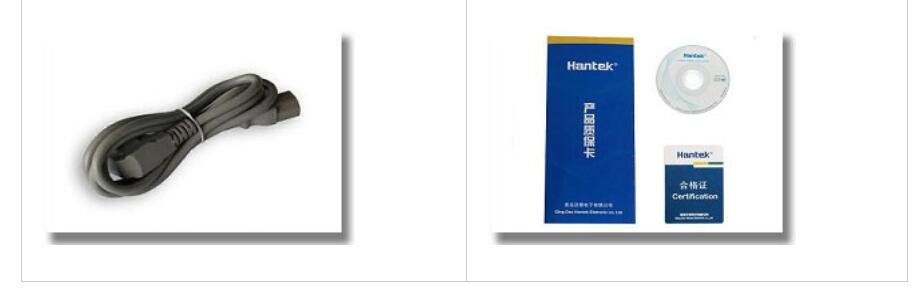

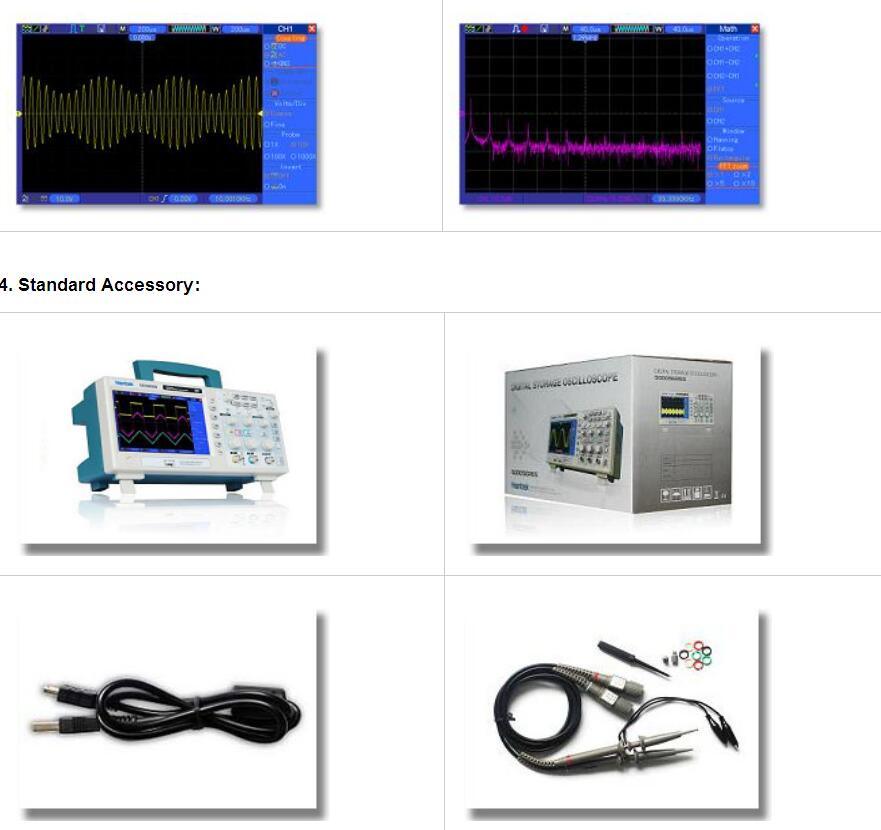

Package included:
- 1 x DSO5202P Digital Oscilloscope
