Hantek DSO8060 5 in 1 Handheld Oscilloscope DMM Spectrum Analyzer Frequency Counter Arbitrary Waveform Generator Multimeter

Hantek DSO8060 5 in 1 Handheld Oscilloscope DMM Spectrum Analyzer Frequency Counter Arbitrary Waveform Generator Multimeter

DSO8000 Series
- Five-in-one mobile laboratories: oscilloscope/arbitrary source/frequency spectrum analysis/counter/multimeter.
- Large 5.7 inch TFT Color LCD Display, LED backlight, Display clearly.
- DSO8060 Five-in-one Handheld Oscilloscope. Oscilloscope/DMM/ Spectrum Analyzer/Frequency Counter/Arbtrary Waveform generator.
- High Bandwidth 60MHz Oscilloscope, and 6000 COUNTS high precision DMM. Seperated GND Reference. Hardware Frequency Counter.
- Arbitrary Waveform Generator: 25Mz arbitrary waveform output, (sine wave can deliver up to 75 Mz) 200 MSa/s DDS, 12 bits of vertical resolution.
- FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check, easy to use on production line.
- High refresh rate; High Real-time Sample Rate 150MSa/s-2GSa/s; 50GSa/s Equivalent-time Sample Rate.
- Multiform trigger mode, 2 separate time base in ALT trigger mode, easy to see 2 signal with different frequency.
- 1000 waveforms save and record.
- Excellent Industrial Design. Direct key for Each Channel, time base, Trigger and DMM, easy to operate.
- Large 5.7 inch TFT Color LCD Display, LED backlight, Display clearly.
- USB Host/Device 2.0 full-speed interface, support removeable disk, RS-232/LAN Option; Easy to control by PC or long-distance.
- Battery Power Operation (Installed) Industrial Design.
- Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
- Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
- Labview/VB/VC Second Design instance.

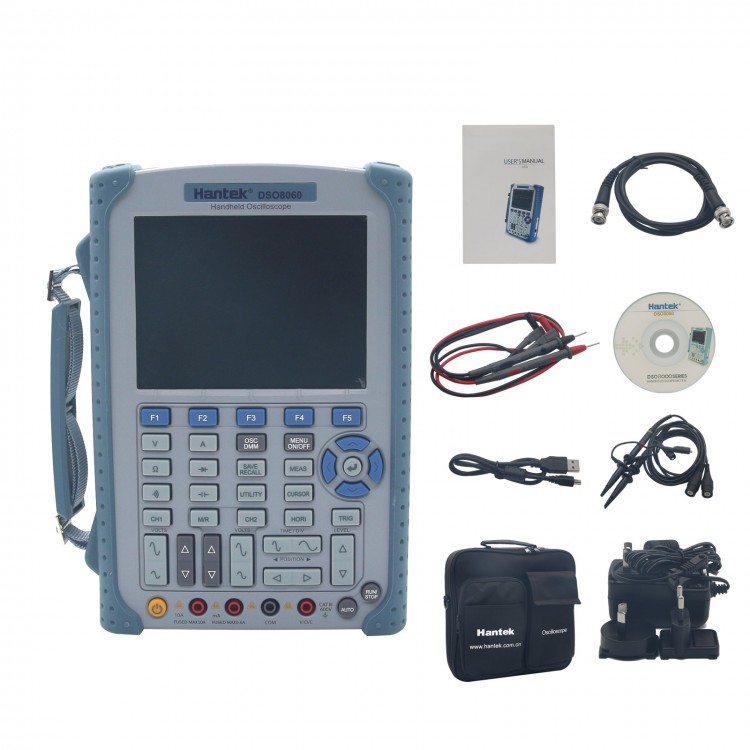

Package Includes:
- 1 x HANTEK DSO8060 HANDHELD DIGITAL OSCILLOSCOPE
- 2 x Probes
- 1 x USB cable
- 1 x User Manual
- 1 x Carrying Bag
- 2 x Multimeter Test Leads
- 1 x Power Adapter
- 1 x CD
- 1 x Cable
