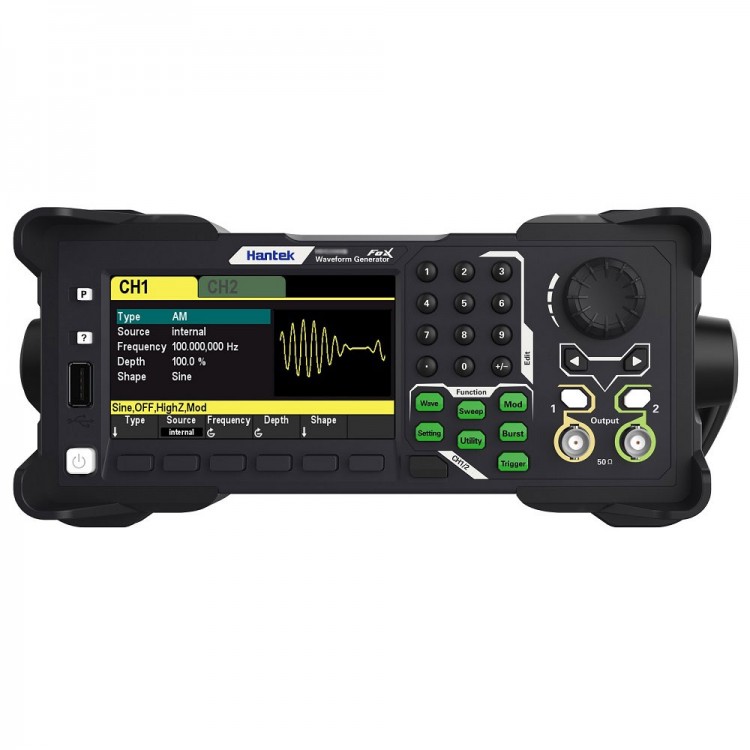

Hantek HDG3062B 2-Channel 5 In 1 Arbitrary Waveform Generator Frequency Meter 4.3-inch TFT LCD Screen
Description:
- HDG3000B series arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.
Features:
- Frequency range: 1uHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.
- Up to 300MSa/s sampling rate, no distortion of analog waveforms.
- 16-bit vertical resolution ensures the accuracy of waveform amplitude.
- Equip with dual channels with equal performance, equivalent to two independent signal sources.
- The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
- A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
- Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
- 1uHz frequency resolution: When the impedance is high, the amplitude range is 2mV ~ 20Vpp. When the impedance is 50ohm, the amplitude range is 1mV ~ 10Vpp.
- Built-in 80MHz high-resolution frequency meter.
- Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
- More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
- Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
Package Included:
- 1 x Host
- 1 x Certification
- 1 x USB Cable
- 2 x Red-Black Alligator Clip Cable
- 1 x Adapter Cable
- 1 x Power Cord
