Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $768.69 | $753.00 | $729.47 | $698.10 | Contact US |

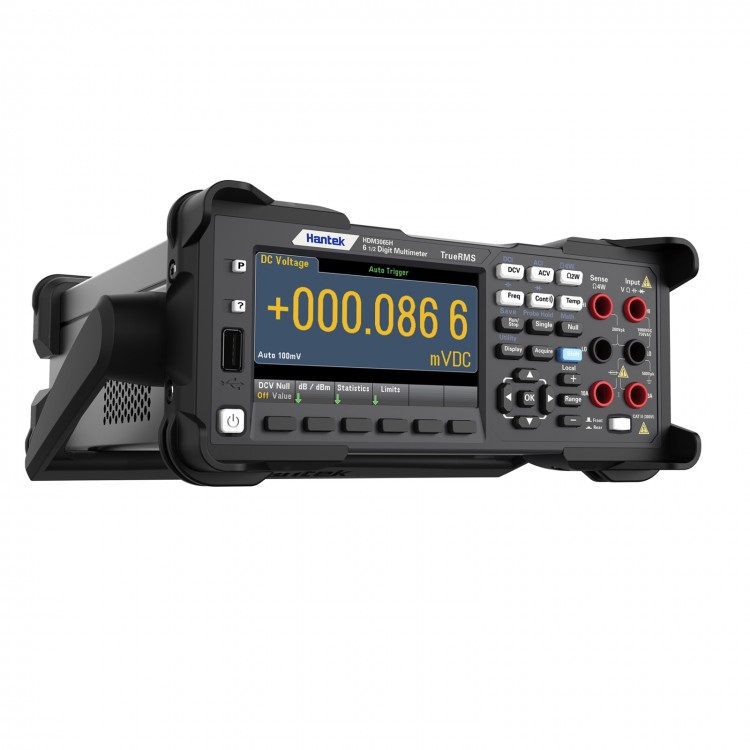

Hantek HDM3065B 6 ½ Digit Desktop Multimeter Tester TRMS 30K/S Sampling Frequency 4.3" Color LCD
Features:
- Real 6 ½ digit reading resolution

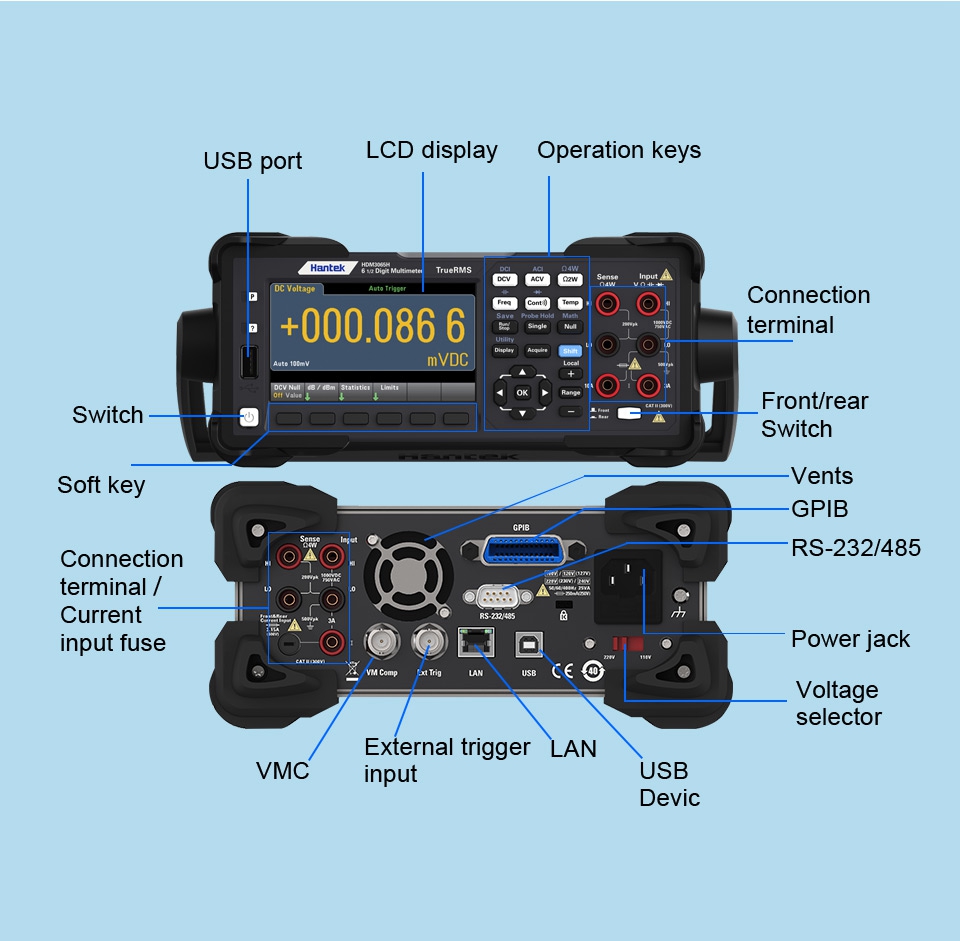

- Two sets of front and rear input ports of the multimeter to facilitate the wiring of the test system
- 30k/s high-speed acquisition, which is conducive to collecting transient signals

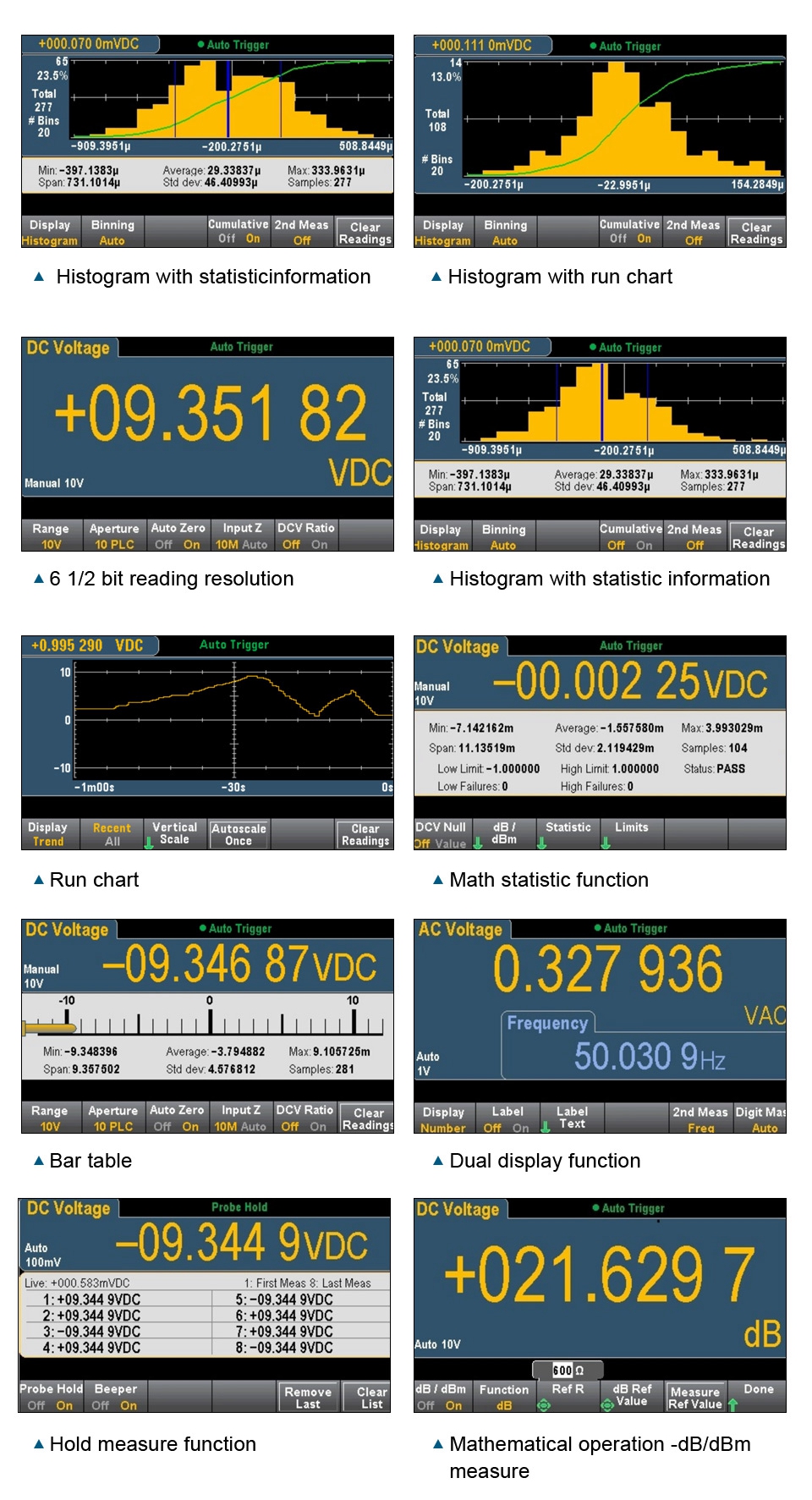

- Standard bar graph, histogram, trend graph and data statistics function
- Dual display measurement function. Can display voltage and frequency measurement values at the same time
- AC voltage TRMS and AC current TRMS measurement
- 0.1μV resolution, simple operation. Flexible setting of parameters
- Multiple measurement functions: DC voltage, AC voltage, DC current, AC current, 2-wire resistance, 4-wire resistance, capacitance, diode, connectivity, frequency, period, temperature, current range up to 10A
- 4.3" 64 K color TFT LCD screen
- Safety standard is CAT II 300 V
- Support SCPI remote control commands. Compatible with mainstream multimeter command sets on the market, and standard computer-side host computer control software
- Configuration interface: USB Device, USB Host, RS232/485, LAN (HDM3065B), GPIB (HDM3065H)
Package Included:
- 1 x Multimeter HDM3065B
- 1 x Pair of Test Leads
- 1 x USB Cable
- 1 x Power Cord
- 1 x Certificate of Calibration
