Hantek LA-4032L PC USB Virtual Logic Analyzer 32CH Bandwidth 150 MHz 2G Memory Depth Logic Analyzer

Availability: In stock, usually dispatched in 1 business day

  • Price:$184.87
  • Price in reward points: 1849 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $181.17 $177.48 $171.93 $164.53 Contact US
Quantity:

Hantek LA-4032L PC USB Virtual Logic Analyzer 32CH Bandwidth 150 MHz 2G Memory Depth Logic Analyzer

Description:

- Hantek4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one.
- It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics
development & electronic measuring engineers, and teaching and research work at college.
- It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
- The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
- It can set edge, level, bus, data width etc. Trigger mode, easy to use.
- Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
- The strong protocol secondary analytic capability is able to export files in CSV, TXT, DOC format, which facilitate
secondary analysis with other tools.
- Plug and play high speed USB 2.0 interface.
- Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.

Specification:
- Channel:32
- Input Impedance:200K(C=10p)
- Input Voltage Range:-6V~60V
- Voltage Threshold Range:-6V~6V
- Max. Sample Rate    :400MHz
- Max. Input Signal Bandwidth:150MHz
- Min Time Resolution:2ns
- Sample Depth:64M Sample
- Memory Depth:2G bits
- Compatible Input:TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
- Electrostatic Protected Area:15KV
- Interface:USB Port
- Voltage Range:4.5V~5.5V
- Power:Max. 3.5W
- Temperature Range:Operation: -10°C~60°C; Storage: -40°C~60°C
- Operating System    :WinXP/2000/Win7
- Size&Weight:207(D) x 37(H) x 123(W) mm, about 390g

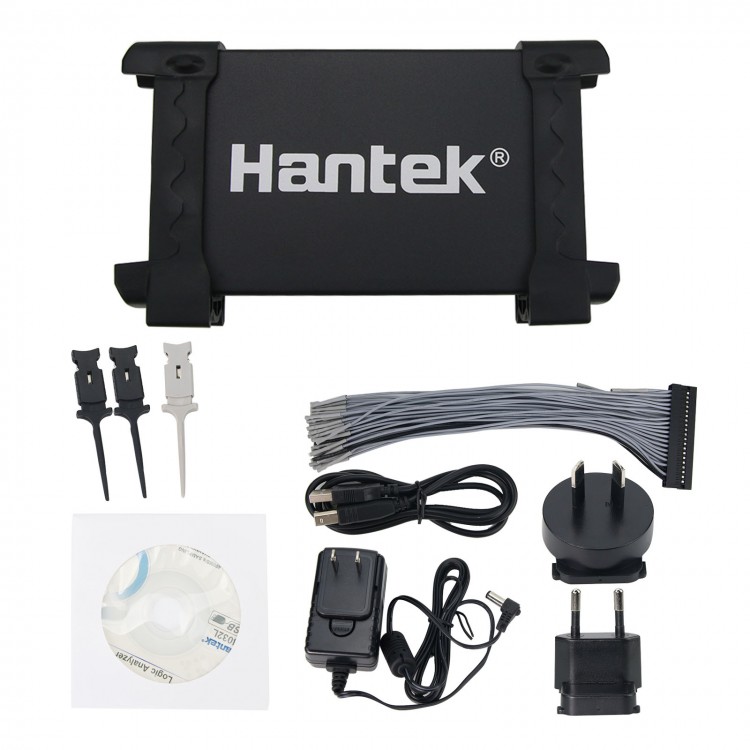

Package included :
- 1 x Logic Analyzer
- 1 x Cable
- 1 x USB cable
- 1 x Power adapter
- 1 x Test hook set
