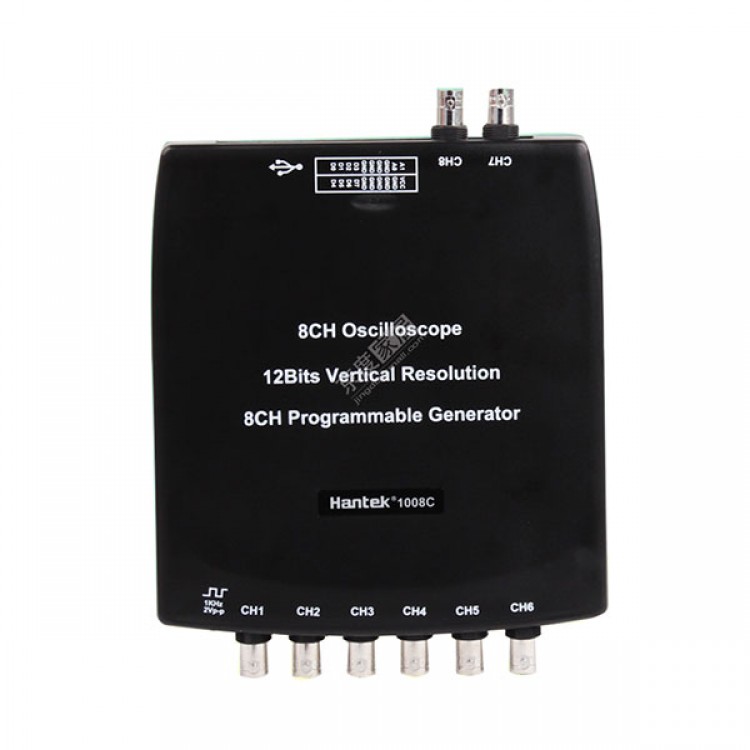

Hantek1008C USB 8CH Automotive Diagnostic Oscilloscope DAQ Program Generator
Description:
- Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
- Vehicle Testing
- First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
- Ignition: primary and secondary
- Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
- Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
- Performer: Petrol/Diesel
- Starter and charging circuits
Oscilloscope
- 8 channels oscilloscope, 2.4MSa/s real time sampling rate
- 12 bits vertical resolution, spectrum analysis function
Programmable Generator
- 8 channels programmable generator
- Can analog signals of crankshaft, camshaft etc.
Others
- USB 2.0 interface plug and play, and no need extra power supply;
- More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
- Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7;
Software Support
- Operating System: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7.
Specification:
Model
|
Hantek1008C
|
|
Oscilloscope Mode
|
||
Vertical
|
Analog Channel
|
8
|
Input Impedance
|
Resistance: 1MΩ
|
|
Input Sensitivity
|
10mV/div to 5V/div
|
|
|
Input Coupling
|
DC
|
Resolution
|
12 bits
|
|
Horizontal
|
Memory Depth
|
4K
|
Max. Input
|
400V (DC+AC Peak)
|
|
Real-Time Sampling Rate
|
2.4MSa/s
|
|
Time Base Range
|
1ns/div to 20000s/div(1-2-5 sequences)
|
|
Time Base Precision
|
±50ppm
|
|
Trigger
|
Source
|
CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
|
Mode
|
Edge
|
|
X-Y Mode
|
X-Axis Input
|
CH1
|
Y-Axis Input
|
CH2
|
|
Cursors and Measurement
|
Voltage Measurement
|
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
|
Time Measurement
|
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
|
|
Cursors Measurement
|
Horizontal ,Vertical, Track, Auto Measure Modes
|
|
Waveform Signal Process
|
|
+,- , x,÷, FFT, Invert
|
Voltage Range
|
|
10mV to 5V/div @ x 1 probe
|
100mV to 50V/div @ x 10 probe
|
||
10V to 5000V/div @ x 1000 probe
|
||
100V to 50000V/div @ x 10000 probe
|
||
200mV to 100V/div @ 20:1
|
||
Current Range
|
|
100mA to 50.0A/div @ CC65(20A)
|
1000mA to 500.0A/div @ CC65(65A)
|
||
1A to 100.0A/div @ CC650(60A)
|
||
10A to 1000.0A/div @ CC650(650A)
|
||
1A to 200.0A/div @CC1100(100A)
|
||
10A to 2000.0A/div @CC1100(1100A)
|
||
Cursor
|
|
Time/frequency difference, voltage difference
|
FFT
|
|
Rectangular, Hanning, Hamming, Blackman Window
|
Math
|
|
Addition, subtraction, multiplication, division
|
Programmable Generator
|
||
Channel
|
|
8
|
Output Level
|
|
LVTTL
|
Frequency Range
|
|
0-250kHz
|
Interface
|
|
USB 2.0
|
Power
|
|
No need extra power supply
|
Measurement
|
Size
|
185 x 150 x 27 (mm)
|
Weight
|
0.35kg
|
