Description:
An all-new hand-held oscilloscope Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 4 in 1 multifunctional tester: Automotive Diagnostic, oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspending stand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplify operation, easy to use.

With more than 80 kinds of car testing, and scan the QR code on the back of device can open video help files to show you how to test vehicles.

* First test projects: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
* Start & Charge: Charging circuit, current and voltage.
* Actuator: Gasoline / Diesel.
* Bus Detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
* Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position.
* Ignition: Primary/Secondary.

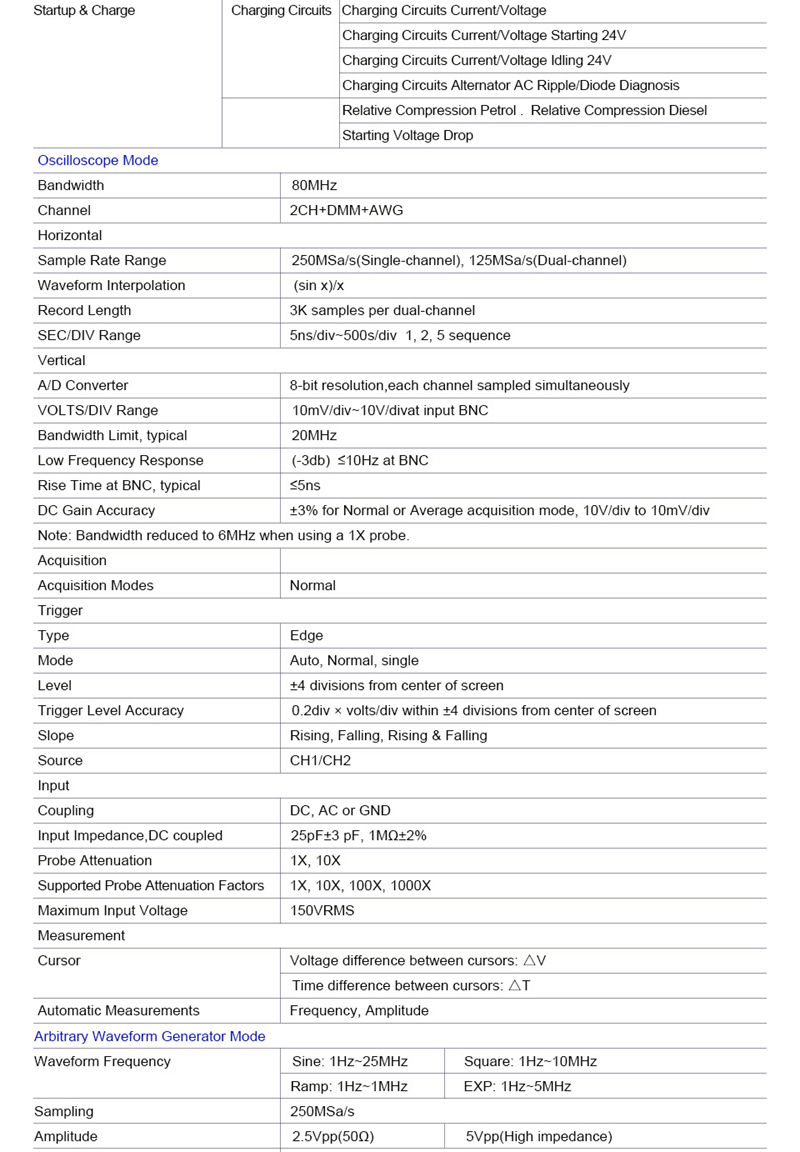

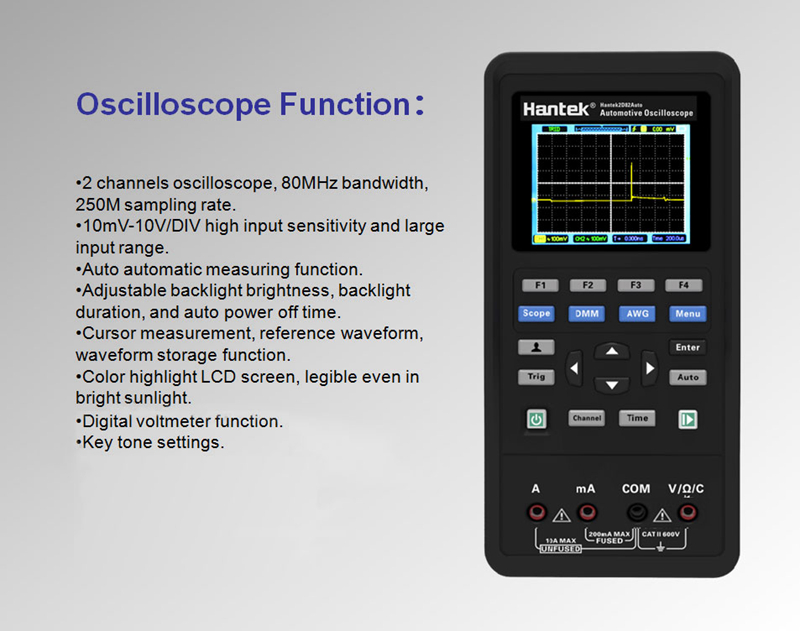

* Oscilloscope: 2 channels oscilloscope, 80MHz bandwidth, 250M sampling rate.
* Universal Multimeter function: voltage, current, resistance, diode, capacitor, on-off test;

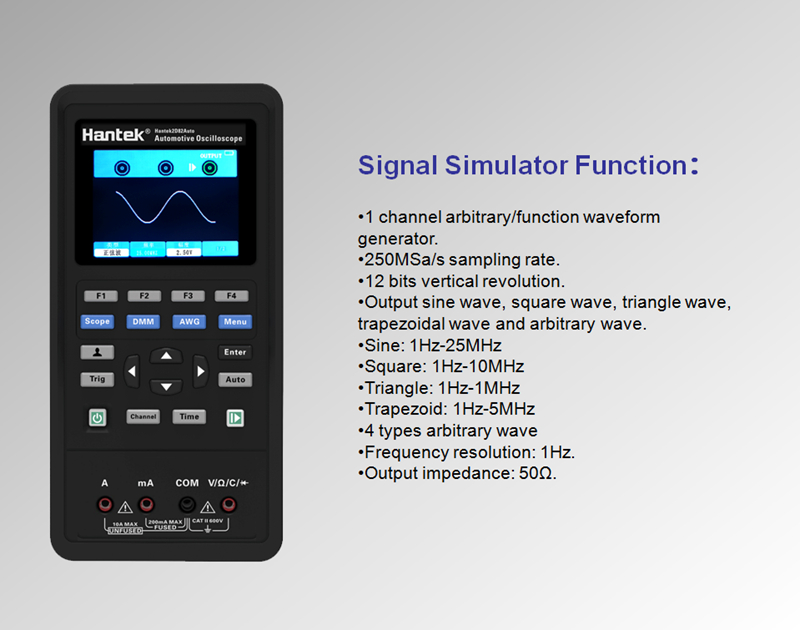

* Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;

Primary ignition voltage and crankshaft sensor test
Charging circuit current and voltage test
Primary ignition and secondary ignition test
Primary ignition current test
Secondary ignition test
Cylinder relative pressure test
Crankshaft and camshaft sensor test
ABS wheel speed sensor test

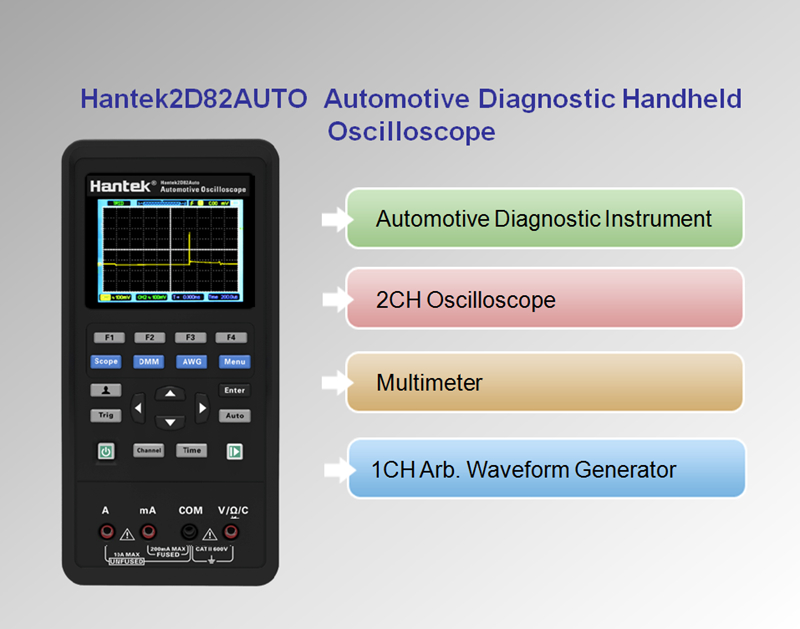

Automotive Diagnostic, 4 in 1

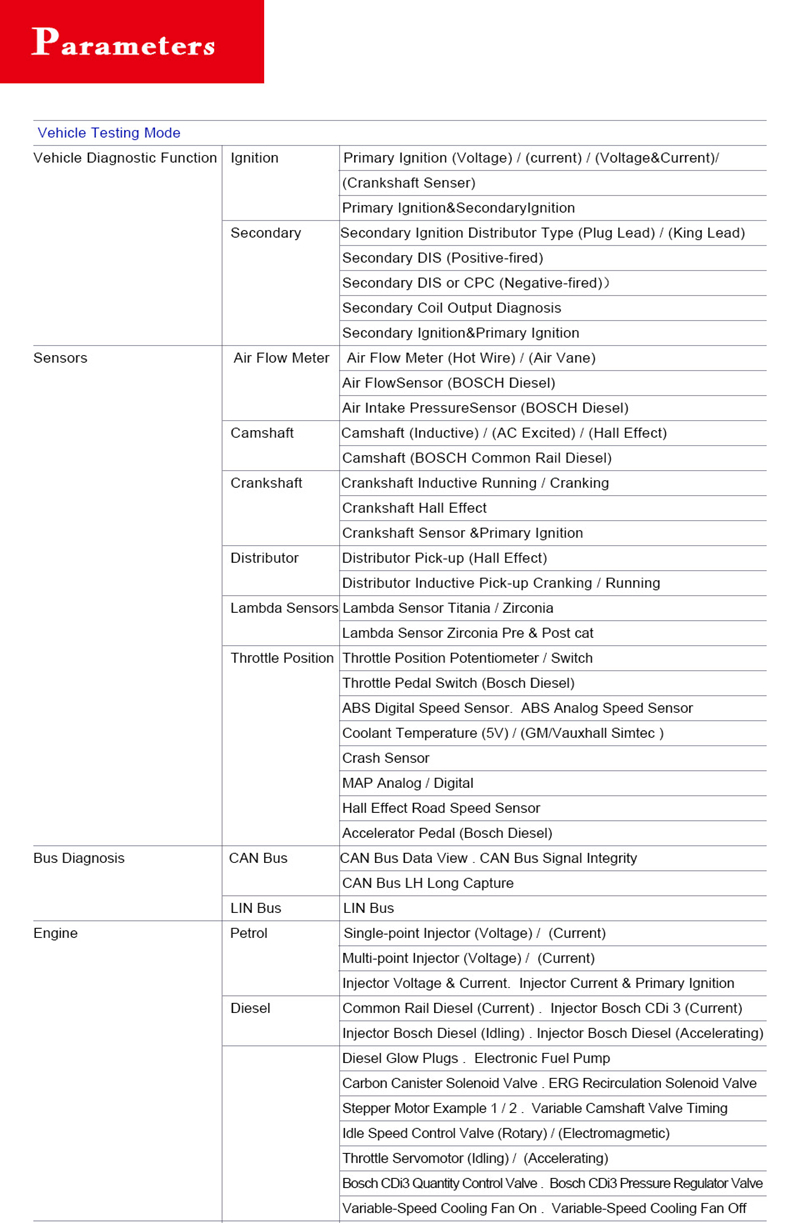

More than 80 kinds of car testing


80MHz Bandwidth, 10mV~10V Vertical resolution


High sensitivity and accuracy, showing clear, strong anti-overload capability, easy to carry


A multipurpose instrument that helps complete your tasks more quickly, improves work efficiency, and meets all your current and future test needs.

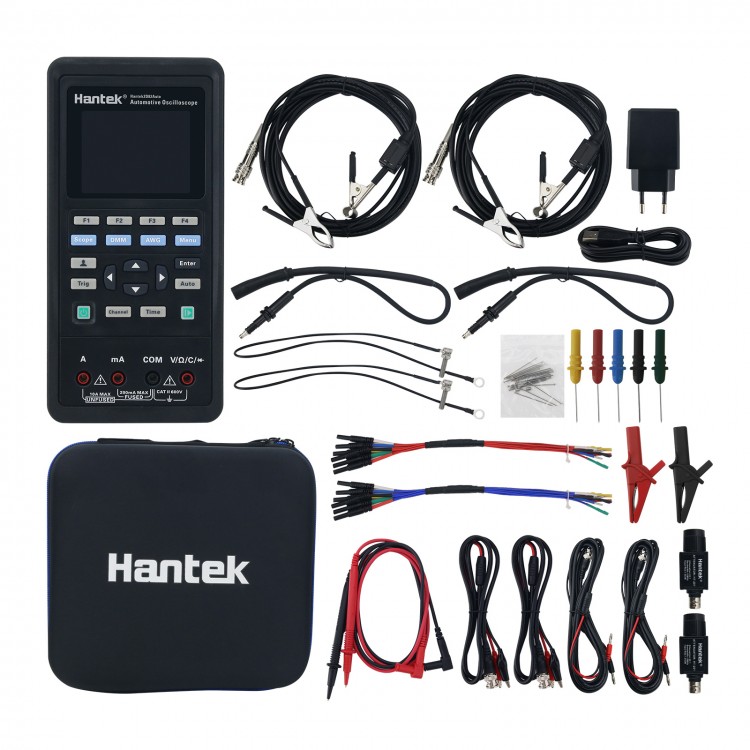

Package Included:
- 1 x Main Unit
- 1 x Tool Case
- 1 x Type C Cable
- 1 x Power Adaptor
- 1 x Multimeter Probe
- 2 x Test Leads with BNC Plug and Alligator Clip HT324
- 2 x Automotive Test Leads HT30B
- 2 x Automotive Ignition Probes HT25
- 1 x Acupuncture Probe Set HT307
- 2 x Coil-on-Plug Extension Cords HT308
- 2 x 20:1 Attenuators HT201
- 1 x Large Dolphin/Gator Clips HT18A
- 1 x 6 Way Breakout Leads HT306-2.8mm
- 1 x 6 Way Breakout Leads HT306-1.5mm
