Hantek6000BC Series Description:
- The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
- It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Feature:
- The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
- Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
- USB2.0 Interface, plug and play device.

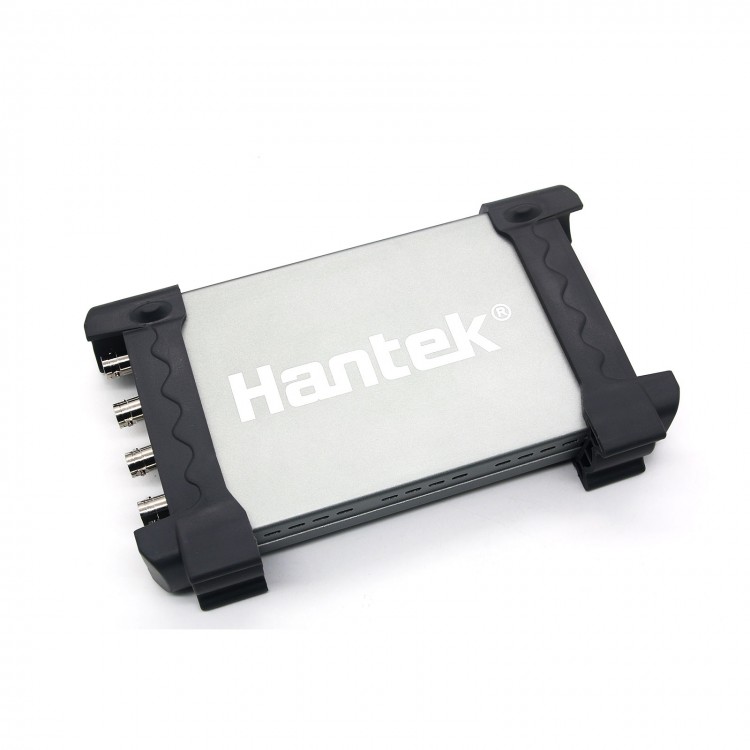

- Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad-Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
- Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
- Software support: Windows10, Windows 8, Windows 7

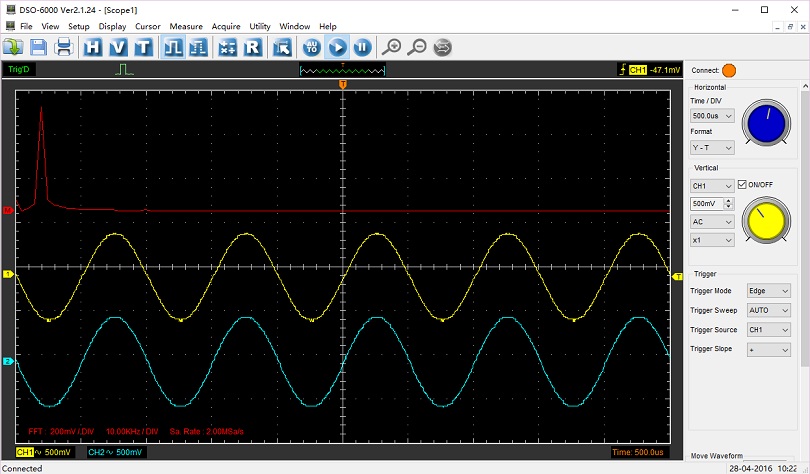

- The waveform data could be output to EXCEL,BMP,JPG as time and voltage category

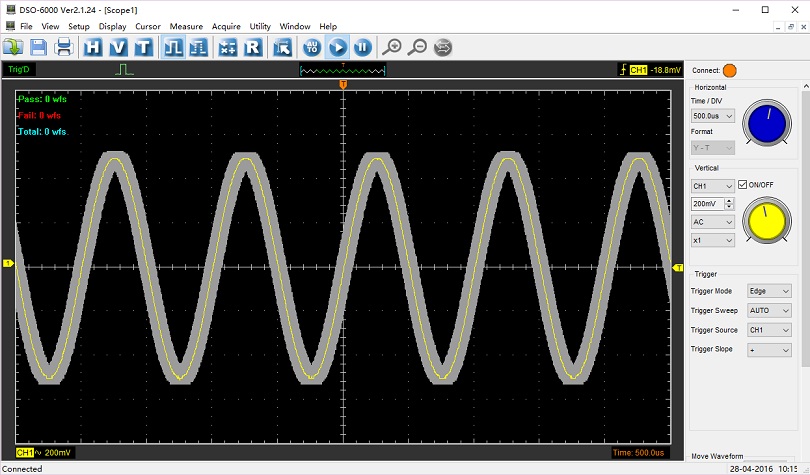

- More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

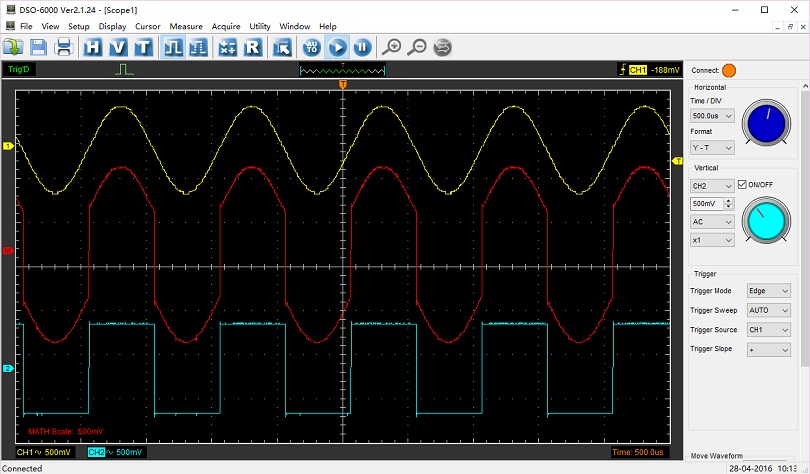

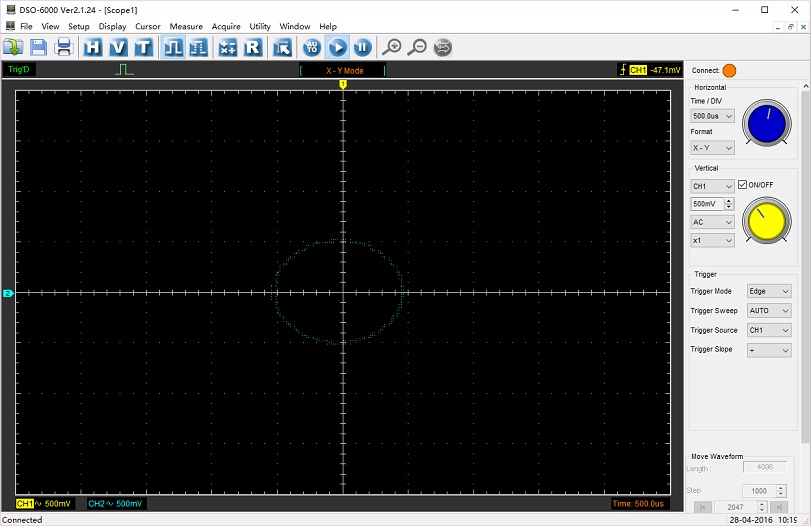

- Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
- FFT spectrum analyzer
- One computer could connect with multiple oscilloscopes, expand the channel number easily.
- USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.
- Provide secondary development library DLL;Provide Labview\VB\VC developing examples.
Parameters:
- Model:Hantek6204BC
- Bandwidth:200MHz
- Channel:4 CH
- Real-time Sampling Rate:1GSa/s
- Memory Depth:64K
- Time Base Precision:±50ppm
- Time Base Range:2ns/div-1000s/div (1-2-4 sequences)
- Input Impedance:1MΩ 25pF
- Input Sensitivity:2mV/div~10V/div
- Vertical Resolution:8Bit
- Vertical Displacement Range:2mV~10V/div @ x1 probe;20mV~100V/div @ x10 probe;200mV~1000V/div@ x100 probe;2V~10000V/div @ x1000 probe
- DC Gain Accuracy:±3%
- Bandwidth:20MHz
- Trigger Mode:Edge,Pulse,Video,Alternative
- Trigger Source:CH1,CH2,CH3,CH4
- Waveform Signal Process:+,-,x,÷,FFT, Invert
- Cursors Measurement:Cross,Trace,Horizontal,Vertical
- Auto Measurement:Vpp,Vamp,Vmax,Vmin,Vtop,Vmid,Vbase,Vavg,Vrms,Vcrms,Preshoot,Overshoot,Frequency,Period,Rise Time,Fall Time,Positive Width,Negative Width,Duty Cycle
- Volume:175x105x25mm
- Weight:0.9KG
- Accessory:2 passive probes,2 gator clip lines

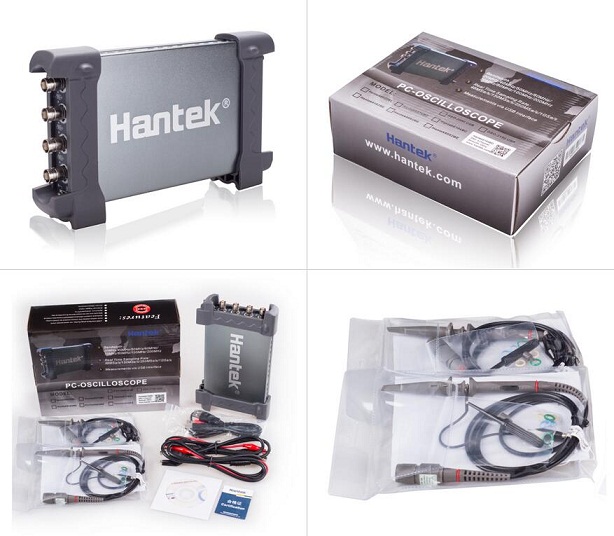

Package List:
- 1 x Hantek6204BC 200MHZ Digital Oscilloscope
- 2 x Passive probes

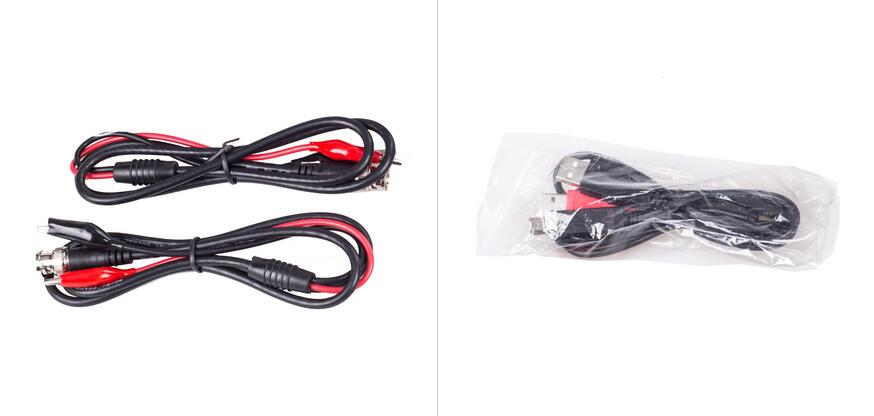

- 2 x Gator clip lines
