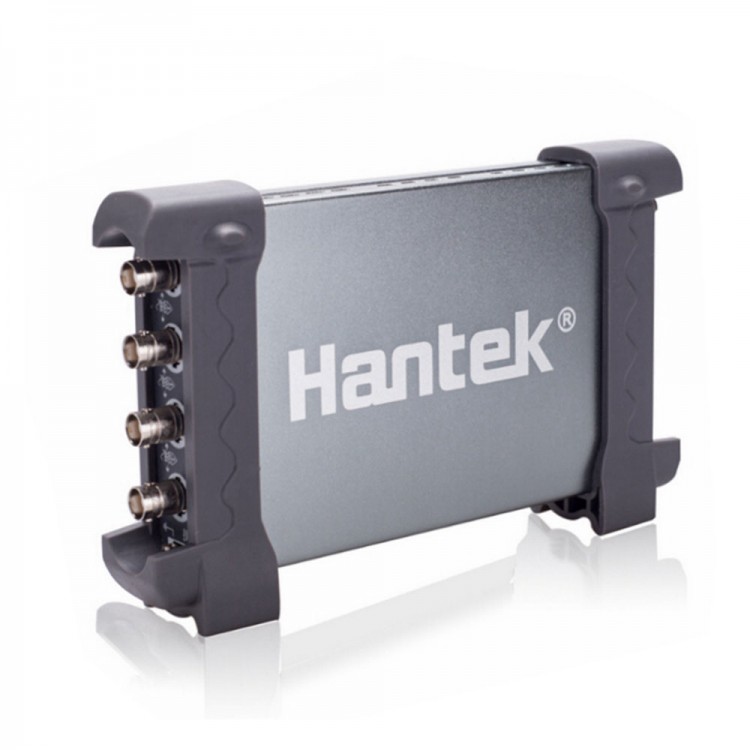

Hantek6254BD Oscilloscope Arbitrary Waveform Generator 250MHz Bandwidth 4 CH Channel 1GSa/s Sampling Rate

Hantek6254BD Oscilloscope Arbitrary Waveform Generator 250MHz Bandwidth 4 CH Channel 1GSa/s Sampling Rate

Hantek6000BD Series Description:

​- 4CH​ oscilloscope & function/Arb. waveform generator. The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, 250MHz bandwidth and Arbitrary Waveform Generator. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying.
- High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Features:
- 4CH oscilloscope & function/Arb. waveform generator.
- The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
- Function/Arbitrary Waveform Generator: 200MSa/s DDS, 12bits of vertical resolution, built-in variety of standard waveforms, arbitrary waveform easy to edit, which is convenient to reappear sensor and other irregular signal.
- Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
- USB2.0 Interface, plug and play device.
- Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
- Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
- Software support: Windows10, Windows 8, Windows 7
- The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
- More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
- Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
- FFT spectrum analyzer
- One computer could connect with multiple oscilloscopes, expand the channel number easily.
- USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.
- Provide secondary development library DLL; Provide Labview\VB\VC developing examples.

Parameters:
- Model:Hantek6254BD
- Bandwidth:250MHz
- Channel:4 CH
- Real-time Sampling Rate:1GSa/s
- Memory Depth:64K
- Time Base Precision:±50ppm
- Time Base Range:2ns/div-1000s/div (1-2-4 sequences)
- Input Impedance:1MΩ 25pF
- Input Sensitivity:2mV/div~10V/div
- Vertical Resolution:8Bit
- Vertical Displacement Range:
2mV~10V/div @ x1 probe;
20mV~100V/div @ x10 probe；
200mV~1000V/div @ x100 probe;
2V~10000V/div @ x1000 probe
- DC Gain Accuracy:±3%
- Bandwidth:20MHz
- Trigger Mode:Edge, Pulse, Video, Alternative
- Trigger Source:CH1, CH2, CH3,CH4
- Waveform Signal Process:+,-,x,÷,FFT, Invert
- Cursors Measurement:Cross, Trace, Horizontal, Vertical
- Auto Measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Arbitrary Waveform Generator Mode
- Waveform Frequency:DC~25MHz
- DAC:2K~200MHz adjustable
- Frequency Resolution:0.10%
- Channel:1CH waveform output
- Waveform Depth:2KSa
- Vertical Resolution:12 bit
- Frequency Stability:<30ppm
- Wave Amplitude:±3.5V Max.
- Output Impedance:50 Ω
- Output Current:50mA, Ipeak=50mA
- System BW:25M
- Harmonic Distortion:-50dBc(1KHz), -40dBc(10KHz)
General Features
- Volume:175x105x25mm
- Weight:0.9KG
- Accessory:2 passive probes, 2 gator clip lines,1 BNC to BNC cord

Package List:
- 1 x Hantek6254BD Oscilloscope
- 2 x Passive probes
- 2 x Gator clip lines
- 1 x BNC to BNC Cord
