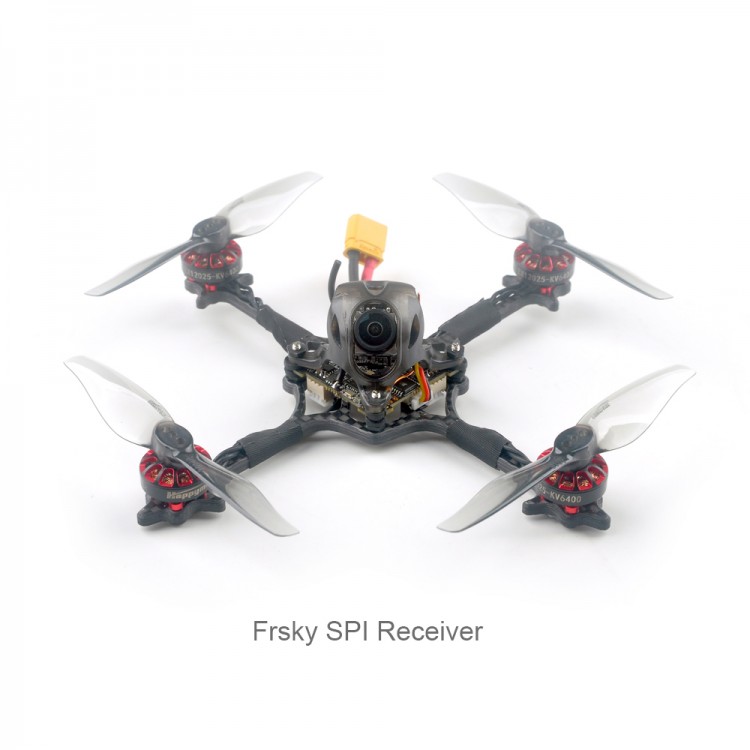

Happymodel 1-2S Crux3 3" Toothpick Drone FPV Racing Drone Assembled For Frsky SPI Receiver Version

Happymodel 1-2S Crux3 3" Toothpick Drone FPV Racing Drone Assembled For Frsky SPI Receiver Version

Features:
- 41.8g 1-2s brushless toothpick drone
- New AIO 4in1 CrazybeeX flight controller
- For CADDX ANT Camera
- New 1202.5 brushless motor
- XT30 connector
- Recommend to use 2s 350mah/400mah/450mah/520mah battery (batteries are not included)
- Suitable for Insta360 Go Camera

Specifications:
- Brand Name: Happymodel
- Item Name: Crux3
- Wheelbase: 115mm
- Size: 97mm x 97mm x 35mm (without the sizes of propellers)
- Weight: 41.8g (without battery)

Receiver Options:
- For Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
- For Internal SPI Flysky version (Suitable for AFHDS and AFHDS-2A Flysky transmitter)
- For Internal SPI DSM2/DSMX version (Perfect for Spektrum or Multiprotocol DSM2/X radio)
- For External Frsky RXSR receiver version (ACCST D16 sbus output)
- For External TBS Crossfire Nano receiver version

Package Included:
- Crux3 Frame and Canopy x 1
- For CrazybeeX FR V2.2 Built-in Internal Frsky SPI D8/D16 Receiver x 1
- Happymodel EX1202.5 KV6400 Brushless Motors x 4
- For Gemfan 3018 Bi-blade Propellers(4cw+4ccw) x 1
- For Caddx Ant 1200TVL Global WDR with OSD 2g Ultra-Light Nano FPV Camera x 1
- 5.8G 25mw~200mw 40ch VTX (Flight Controller Built-in) x 1
- Screwdriver x 1
- Propeller Disassemble Tool x 1
- Happymodel Handbag x 1

Specifications of Spare Parts:
Motor:
- Mode: EX1202.5 KV6400
- Configuration: 9N12P
- Stator Diameter: 12mm
- Stator Length: 2.5mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia.*Len): 14mm*14.5mm
- Weight: 4.4g
- No. of Cells (Lipo): 1-2S

Propellers:
- For Gemfan 3018-2
- Center Thickness: 5.5mm
- Prop Diameter: 76.5mm
- Center Hole diameter: 1.5mm

Flight Controller:
- (For Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR
- (For Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS
- (For DSM2/X SPI RX version) CRAZYBEEX DXS V1.0 FC firmware target: CrazybeeF4DXS
- (For External Frsky RXSR version) CRAZYBEEX PNP V2.2 Firmware target: CrazybeeF4DX
- (For External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target: CrazybeeF4DX
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Board size: 28.5 * 28.5MM
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G VTX
- Built-in SPI receiver for Frsky/Flysky or no receiver
- Built-in 5V 1A BEC

Onboard 4in1 ESC:
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HV; Current: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: S_H_50_REV16_7.HEX
- Default protocol: DSHOT600

For Onboard Frsky SPI D8 Receiver Version:
- Compatible with SPI BUS receiver for Frsky D8
- Compatible Non-EU transmitter D8 model; Channels: 8ch
- Failsafe support
- No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m

For Onboard Flysky SPI Receiver Version:
- SPI BUS receiver
- Protocol: AFHDS and AFHDS-2A Switchable
- Channels: 8ch (AFHDS) or 14ch (AFHDS-2A)
- No ground interference (Transmitter and receiver 1 m from the ground): 200~300m
- Failsafe support

For Onboard DSM2/X SPI Receiver Version:
- Compatible with SPI BUS receiver for DSM2/DSMX
- Channels: Max. 12ch
- Failsafe support
- No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m
- RSSI enable (show on the goggles)

For External Frsky R-XSR Receiver Version:
- Weight: 1.5g
- Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
- Operating Voltage Range: 3.5V~10V
- Operating Current:70mA at 5V
- Firmware: Upgradable
- Compatibility: For Frsky X Series modules and radios in D16 mode
- Could support for Frsky New ACCESS Protocol (Upgrade firmware)

For External TBS CRSF Nano Receiver Version:
- Original TBS CROSSFIRE Receiver, CRSF Protocol, Official TBS transmitter compatible

Onboard 5.8g VTX:
- Output power: 25mw~200mw switchable
- Frequency: 40CH
- Input voltage: 3.3V, 5.5V
- Current consumption: 300mA (type)
- Frequency: 5.8GHz 5 bands 40 channels
- With Raceband
- Ready for Smartaudio

For Caddx ANT 1200tvl Camera:
- Image Sensor: For 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC or PAL
- IMAGE: 16:9 or 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux at F1.2
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14*14mm (with bracket to 19*19mm)
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20℃ to 60℃
- Weight: 2g (N.W.)

Note:
- Batteries mentioned above are not included.
- It has been assembled and is ready for use.
