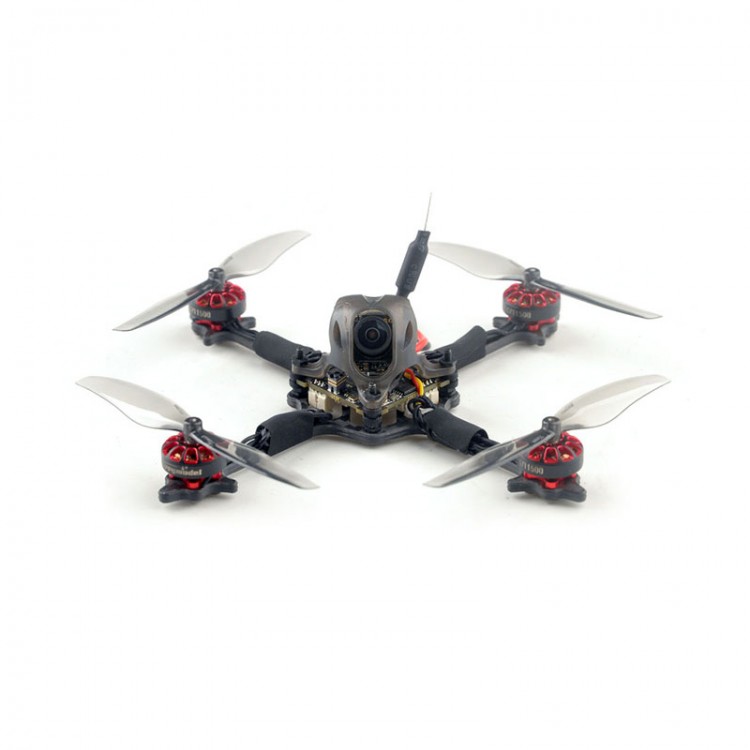

Happymodel Crux3 1S 3 Inch Toothpick FPV Drone Quadcopter Racing Drone BNF for ELRS ExpressLRS

Happymodel Crux3 1S 3 Inch Toothpick FPV Drone Quadcopter Racing Drone BNF for ELRS ExpressLRS

Features:
- 40g 1s brushless toothpick drone
- AIO flight controller with receiver for ELRS and 5.8G VTX
- Camera for CADDX ANT
- New 1202.5 KV11500 brushless motor
- Compatible with cameras for CaddxFPV Peanut and Insta360 GO2

Specifications:
- Brand Name: Happymodel
- Item Name: Crux3 1S for ELRS
- Wheelbase: 115mm/4.5"
- Size: 97 x 97 x 35mm/3.8 x 3.8 x 1.4" (without the size of propellers)
- Weight: 40G/0.09LB

Package Included:
- 1 x Crux3 frame and canopy
- 1 x For ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver
- 4 x Happymodel EX1202.5 KV11500 brushless motors
- 1 x Gemfan 75mm bi-blade propellers (4CW + 4CCW)
- 1 x For Caddx Ant 1200TVL global WDR with OSD 2g ultra light nano FPV camera
- 1 x 5.8G 25mw~200mw 40ch VTX (flight controller built-in)
- 1 x Screwdriver
- 1 x Propeller disassemble tool
- 1 x 3D printed canopy for Insta360 GO2 and CaddxFPV Peanut
- 1 x Happymodel handbag

Note:
- Battery is not included. 1S 450mah/650mah/660mah/720mah battery is recommended.
- Camera for Insta360 GO2 and CaddxFPV Peanut is not included.

Parameters of Parts:
Motor:
- Mode: EX1202.5 KV11500
- Configuration: 9N12P
- Stator Diameter: 12mm
- Stator Length: 2.5mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia.*Len): 14mm*14.5mm
- Weight: 4.4g

Propellers:
- Gemfan 75mm
- Center Thickness: 5mm
- Prop Diameter: 75mm
- Center Hole diameter: 1.5mm
- Pitch: 0.9in

Flight Controller:
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Original whoop size compatible
- Built-in 5A (each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G VTX
- Built-in SPI 2.4GHz receiver for ExpressLRS
- Built-in 5V 1A BECFlight controller
- Firmware target: CRAZYBEEF4SX1280

Onboard 4in1 ESC:
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds)
- Programmable
- Factory firmware: O_H_5_REV16_7.HEX
- Default protocol: DSHOT300

Onboard SPI 2.4GHz Receiver for ExpressLRS:
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- RF Frequency: 2.4GHz
- Antenna: SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol to flight controller: CRSF
- Could bind with All 2.4GHz TX module for ExpressLRS; firmware for ExpressLRS need 1.0.0 or latest

Onboard 5.8g VTX:
- Output power: 25mw~200mw switchable
- Frequency: 40CH
- Input voltage: 3.3V 5.5V
- Current consumption: 300mA (type)
- Frequency: 5.8GHz 5bands 40 channels
- With Race bandSmartaudio ready

1200TVL Camera For Caddx ANT:
- Image Sensor: 1/3" Sensor for CMOS
- Horizontal Resolution: 1200 TVL
- TV System: NTSC or PAL
- IMAGE: 16:9 or 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio : >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux at F1.2
- Automatic Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14*14mm (with bracket to 19*19mm)
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20℃ to +60℃
- Weight: 2g (N.W.)
