Happymodel EPW5 2.4GHz PWM 5CH RC Receiver for ExpressLRS ELRS Fixed-Wing Aeroplanes

Availability: Out Of Stock

  • Price:$19.58
  • Price in reward points: 196 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.19 $18.80 $18.21 $17.43 Contact US
Quantity:
Buy it now Add cart

You might like

Happymodel EPW6 RC Receiver 900MHz 6CH PWM for ExpressLRS ELRS Fixed-Wing Aeroplanes

Happymodel EPW6 RC Receiver 900MHz 6CH PWM for ExpressLRS ELRS Fixed-Wing Aeroplanes

$19.58

(0)
Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6-Channel PWM RC Receiver for Fixed-wing 12dbm

Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6-Channel PWM RC Receiver for Fixed-wing 12dbm

$18.87

(0)
Happymodel Mobula 8 Integrated FRSKY D8/D16 Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

Happymodel Mobula 8 Integrated FRSKY D8/D16 Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

$121.31

(0)
Happymodel Mobula 8 Integrated FLYSKY Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

Happymodel Mobula 8 Integrated FLYSKY Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

$121.31

(0)
Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX w/ Integrated Receiver for ELRS V2.0

Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX w/ Integrated Receiver for ELRS V2.0

$100.10

(0)
WFLY ET10 2.4GHz RC Controller Remote Controller with Left Hand Throttle for FPV Fixed Wing Drones

WFLY ET10 2.4GHz RC Controller Remote Controller with Left Hand Throttle for FPV Fixed Wing Drones

$123.08

(0)
Happymodel Mobula 8 PNP Version (without Receiver) 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

Happymodel Mobula 8 PNP Version (without Receiver) 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

$121.31

(0)
WFLY ET10 2.4GHz RC Controller Remote Controller with Right Hand Throttle for FPV Fixed Wing Drones

WFLY ET10 2.4GHz RC Controller Remote Controller with Right Hand Throttle for FPV Fixed Wing Drones

$123.08

(0)

Happymodel EPW5 2.4GHz PWM 5CH RC Receiver for ExpressLRS ELRS Fixed-Wing Aeroplanes

Specifications:
- Item: Happymodel EPW5 2.4GHz PWM receiver
- ESP8285 and SX1280/1281
- Antenna connector: IPEX MHF 1/U.FL
- 5x PWM outputs
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: 12dbm
- Receiver protocol: for PWM or CRSF
- Input voltage: +5V DC at "+" pad

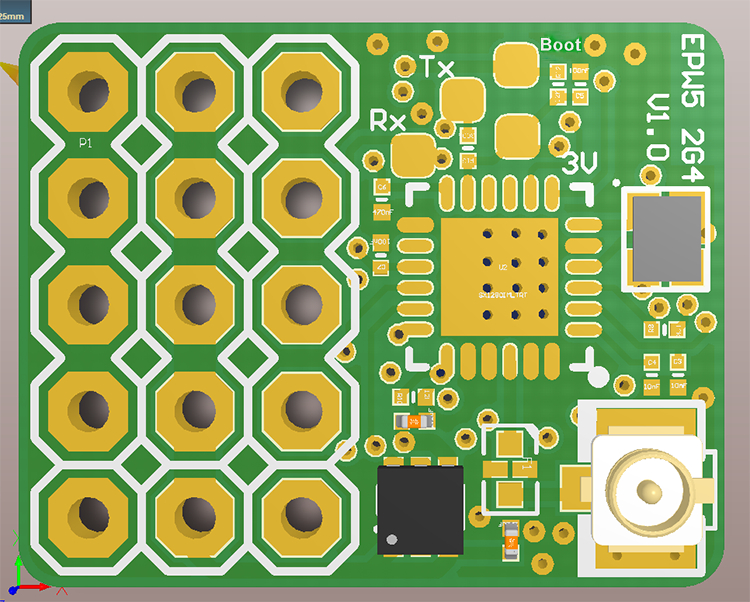

- PCB size: 17mm x 14mm
- Weight: 1.1g / antenna

Firmware:
- DIY_2400_RX_PWMP, PWM receiver via 1~5 PWM outputs
- HappyModel_EP_2400_RX, CRSF Serial receiver via TX and RX
- Firmware update via UART or WIFI

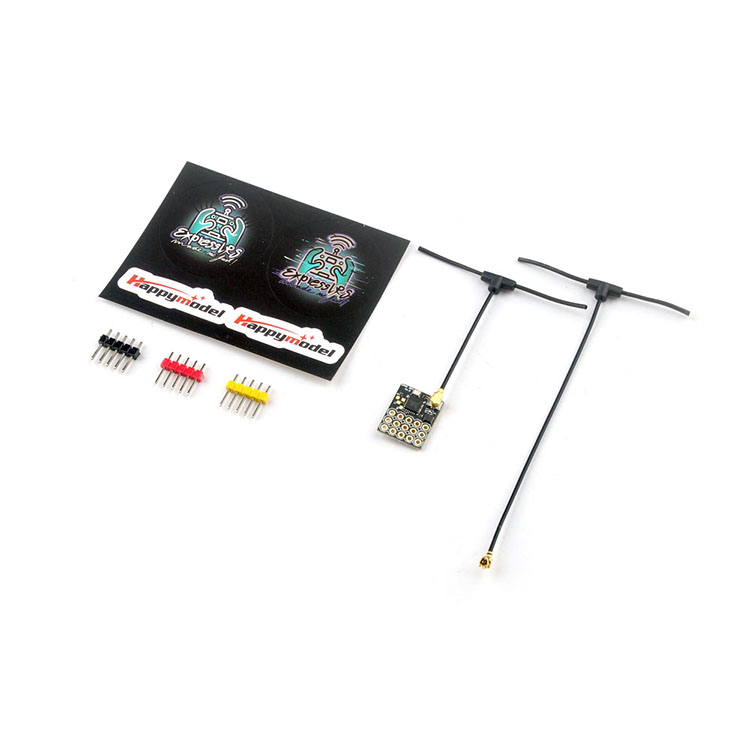

Package Included:
- 1 x Happymodel EPW5 2.4GHz PWM Receiver
- 2 x 2.4GHz antennas
- 3 x Pin headers 2.54mm
