Happymodel EPW6 RC Receiver 900MHz 6CH PWM for ExpressLRS ELRS Fixed-Wing Aeroplanes

Happymodel EPW6 RC Receiver 900MHz 6CH PWM for ExpressLRS ELRS Fixed-Wing Aeroplanes

Specifications:
- Item: Happymodel EPW6 900MHz PWM receiver
- ESP8285 and SX1276
- Antenna connector: IPEX MHF 1/U.FL
- 6x PWM outputs
- RF Frequency: 868MHz (EU); 915MHz (FCC)
- Telemetry power: <17dbm
- Receiver protocol: PWM or CRSF
- Input voltage: +5V DC at "+" pad
- PCB size: 18.5mm x 16mm
- Weight: 1 g without antenna
- Default firmware version: for ExpressLRS v2.0

Firmware Target:
- DIY_900_RX_PWMP (Factory default firmware), PWM receiver via 1~6 PWM outputs
- HappyModel_RX_ES900_RX, CRSF Serial receiver via TX and RX
- Firmware update via UART or WIFI

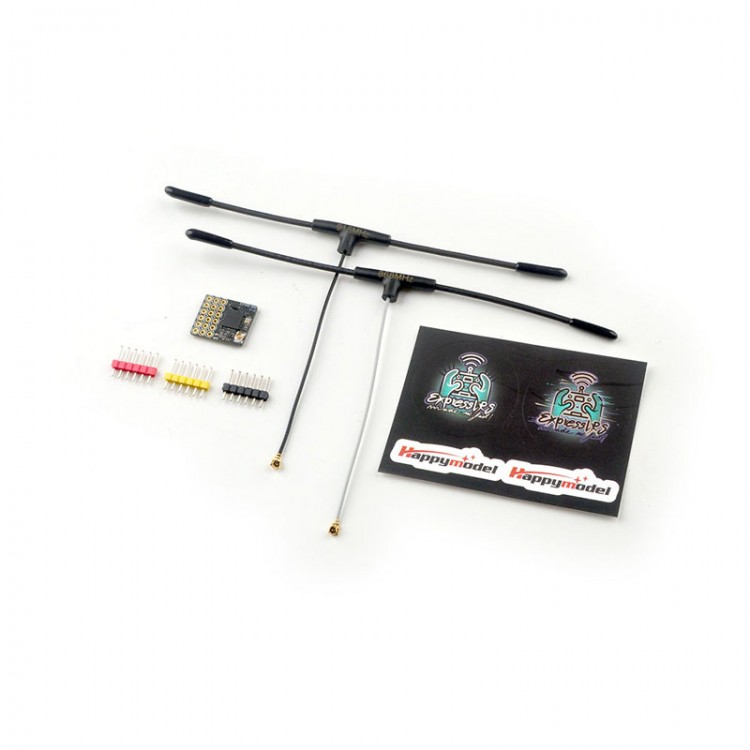

Package Included:
- 1 x Happymodel EPW6 900MHz PWM receiver
- 1 x 915MHz antenna
- 1 x 868MHz antenna
- 3 x 6pin 2.54mm

Bind Procedure:
1. Supply power to the EPW6 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to flash twice, which means that the RX enters the binding mode
2. Get into menu for ELRS. LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will always on if bind successfully.

Receiver LED Status:
LED on means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser (password: expresslrs).
