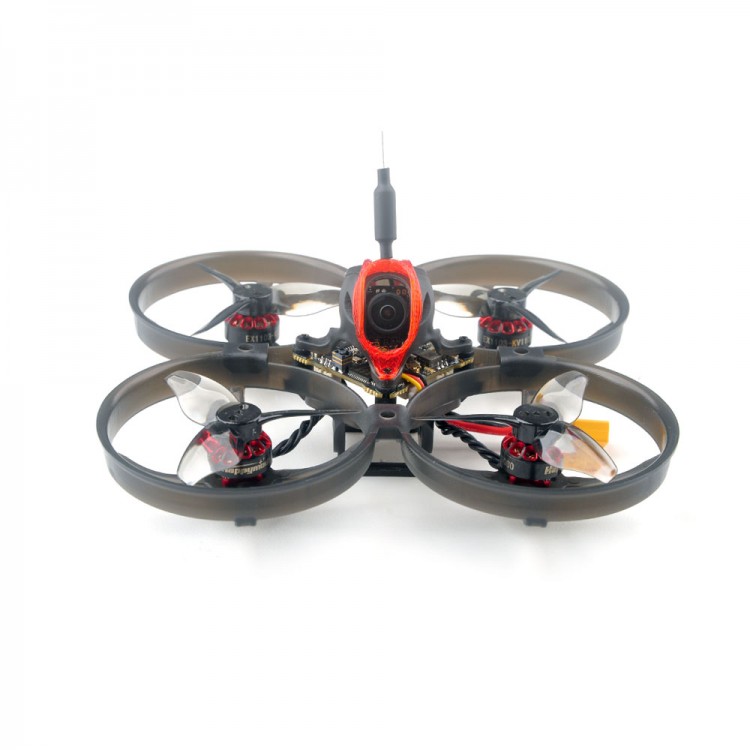

Happymodel Mobula 8 Integrated FRSKY D8/D16 Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

Happymodel Mobula 8 Integrated FRSKY D8/D16 Receiver 1 - 2S 85mm Brushless Whoop Micro FPV Drone Kit

Description:
- It adopts X12 series flight control, 1103 KV11000 motor with Gemfan Hurricane 2023 three blade propeller.

Features:
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
- VTX Power up to 400mw
- ELRS V2.0 (Default), provide firmware to support ELRS V3.0
- EX1103 KV110000 motors
- for Caddx FPV Ant FPV camera
- Smooth and powerful
- Compatible for 1S-2S Lipo/LIHV battery, 2S 450mah/550mah/650mah battery are recommended (not include)

Specification:
- Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
- Wheelbase: 85mm
- Size: 120mm x 120mm x 50mm
- Weight: 43g

Spare parts specification:
Motor:
- Mode: EX1103 KV11000
- Configuration: 9N12P
- Stator Diameter: 11mm
- Stator Length: 3mm
- Shaft Diameter: Φ1.5mm
- Motor Dimension(Dia. x Len): Φ13.5mm x 15.5mm
- Weight(g): 3.8g
- No.of Cells (Lipo): 1-2S (not included)

Propeller:
- Weight: 0.88g
- Material: PC
- Pitch: 2.3-inch
- Props Dia: 52.17mm
- Center Thickness: 5mm
- Center Hole Dia: 1.5mm

Flight Controller:
- X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver target: CRAZYBEEF4SX1280
- X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver target: CRAZYBEEF4FR
- X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver target: CRAZYBEEF4FS
- X12 PNP V1.1 flight controller without onboard receiver target: CRAZYBEEF4DX
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: ICM20689 or ICM42688P(SPI connection)
- Mount hole size: 25.5mm x 25.5mm
- Power supply: 1-2S battery input (DC 2.9V-8.7V, not included)
- Built-in 12A(each) Blheli_S 4-in-1 ESC
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in ExpressLRS 2.4G, Frsky D8/D16, Flysky AFHDS 2A
- Built-in voltage detection
- Built-in current sensor

Onboard 4in1 ESC:
- Power supply: 1-2S LiPo/LiPo HV (not included)
- Current: 12A continuous peak 15A (3 seconds)
- Support for BLHeliSuite, programmable
- Firmware target: Z_H_30
- Default protocol: DSHOT300
- Support for Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver:
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V2.0
- RF Frequency: 2.4GHz
- Antenna: SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol: SPI ExpressLRS
- Compatible with ExpressLRS V2.0 TX Module
- Couldn’t flash separately ExpressLRS firmware
- Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 Receiver Version:
- SPI BUS receiver Frsky D8/D16 compatible
- Compatible Non-EU transmitter D8/D16 model channels: 8ch/16ch
- No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky Receiver Version:
- SPI BUS receiver
- Protocol: AFHDS-2A
- Channels: 14ch (AFHDS-2A)
- No ground interference (Transmitter and receiver 1 m from the ground): 200meter
- Failsafe support

PNP Version (without onboard receiver):
- Full UART1 for external Receiver
- Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
- IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano Receiver Version:
- Original TBS CROSSFIRE Receiver
- CRSF Protocol
- Official TBS transmitter compatible

Onboard 5.8g OPENVTX:
- Firmware version: OPENVTX
- Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)

For Caddx ANT 1200TVL camera:
- Image Sensor: 1/3″ CMOS sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC or PAL
- Image: 16:9 or 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio : >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux at F1.2
- Auto Gain Control: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14 x 14mm(with bracket to 19 x 19mm)
- Wide Power Input: DC 3.7 - 18V
- Weight: 2g (N.W.)

Package Included:
- 1 x FPV Drone Kit

Note:
- Battery is not included.
