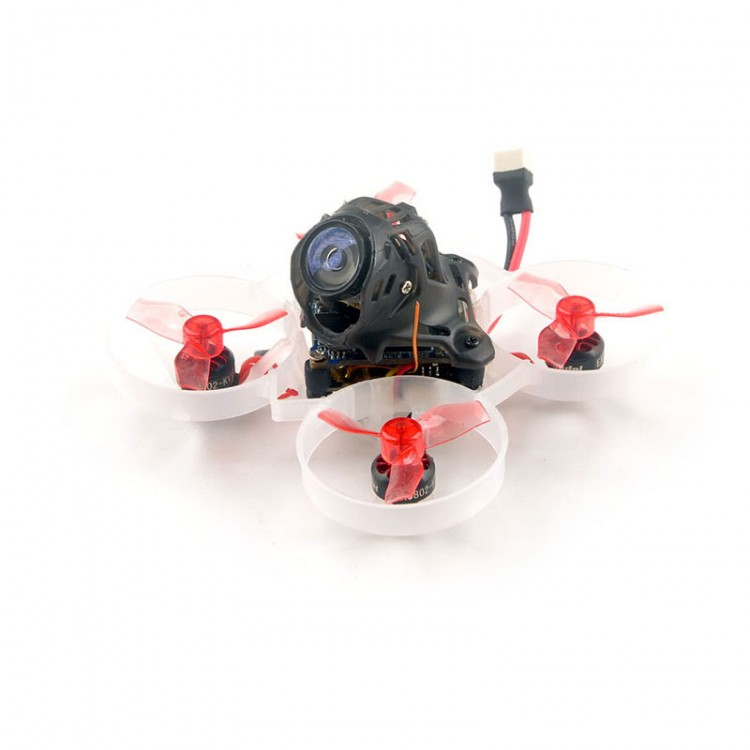

Happymodel Mobula6 HD 65MM 1S Tiny Whoop Drone Brushless FPV Drone 1080P + Receiver For DSM2/DSMX

Happymodel Mobula6 HD 65MM 1S Tiny Whoop Drone Brushless FPV Drone 1080P + Receiver For DSM2/DSMX

Description:
Mobula6 HD uses the same flight control system as Mobula6, equipped with RunCam Split3-Lite 1080P high-definition camera, users can also shoot high-definition video at home. It weighs only 27g. New EX0802 KV19000 motors are equipped with Gemfan 31mm propeller. Whether it is flying indoors or outdoors, it can guarantee powerful flight dynamics.

Mobula6 HD Flight Video:
https://www.bilibili.com/video/BV1WK411p7odfrom=search&seid=12590453557616453055
https://www.youtube.com/watch?v=ZENcGuaxngs&

Features:
- 1S indoor whoop drone, with EX0802 motors for strong power
- Support for Betaflight to adjust parameters, multiple flight modes
- Integrated injection molding Tiny Whoop structure
- Dshot ESC, 2.4G SPI receiver, 5.8G 25mw 40CH VTX
- Integrate for Betaflight OSD function, keep abreast of flight voltage, receiver signal, and fly more calmly
- VTX comes with Smartaudio function, you can adjust flight control parameters through the OSD, adjust the flight control PID, and adjust the VTX frequency point parameters
- Completely assembled and debugged, you can fly with a remote control when you get it
- Adjustable camera tilt angle

Drone Specifications:
- Brand: Happymodel
- Model: Mobula6 HD
- Wheelbase: 65mm
- Size: 80mm*80mm*40mm
- Weight: 27g

Accessory Parameters:
Motor:
- Motor Mode: EX0802 19000KV
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: 1mm
- Motor Dimension (Dia.*Len): 10.5mm*14.9mm
- Weight(g): 1.7g
- No.of Cells (Lipo): 1S only

Propellers:
- Model: Gemfan 1219-3
- Center Thickness: 5mm
- Prop Disk Diameter: 31mm
- Center Hole Inner diameter: 1.0mm
- Weight: 0.28g

Flight Controller:
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Board size: 28.5*28.5MM
- Power supply: 1S input (DC 2.9V-4.35V)
- Built-in 5A(each) for Blheli_S 4in1 ESC Dshot600 ready
- Built-in for Betaflight OSD (SPI Control)
- Built-in 5.8G VTX
- Built-in 5V 1A BEC
- Built-in voltage detection

Onboard 4-In-1 ESC:
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HV
- Current: 5A continuous peak 6A (3 seconds)
- Programmable
- Factory firmware: O_H_5_REV16_7.HEX
- Default protocol: DSHOT600

External Receiver For DSM2/DSMX (DSM2/X):
- Resolution: 1024/2048
- Working voltage: 3.3V
- Working current: 60MA
- Size: 15mm * 10mm * 5mm
- Antenna length: 30mm
- Communication protocol: DSM2/DSMX

Onboard 5.8G VTX:
- Output power: 25mw
- Frequency: 40CH
- Input voltage: 3.3V 5.5V
- Current consumption: 300mA (type)
- Frequency: 5.8GHz, 5bands, 40 channels

Camera:
- Model: RunCam Split3-Lite
- Field of View (FOV): Record FOV 165° (FPV FOV: 165° at 16:9, 130° at 4:3)
- Video resolution: 1080 at 60fps / 1080 at 50fps / 1080 at 30fps / 720 at 60fps
- Video file format: MOV
- Image resolution: 2 MP
- TV mode: NTSC (720*480) / PAL (720*576) switchable
- Interface: JST 1.25mm / UART and SH 1.0mm
- Supports up to 64G of Micro Micro SD card (Class 6 or above is required, Class 10 / UHS-I / UHS-II / UHS-III is recommended)
- Installation hole distance: 25.5*25.5mm
- PCB size: 29*29mm
- Lens module size: 14*14mm
- Lens specifications: M9
- Power supply input: DC 5-20V
- Working current: 450mA at 5V

Package Included:
- 1 x Mobula6 HD 1S 65mm Whoop Drone Frame
- 1 x External Receiver: DSM2/DSMX compatible satellite receiver
- 4 x EX0802 KV19000 Motors
- 1 x Gemfan 1219-3 Propeller (4cw + 4ccw)
- 1 x Runcam Split3-Lite 1080P HD Camera + DVR
- 1 x 5.8G 25mw 40ch VTX (Built-In Flight Controller)
- 1 x 1S Lipo/LIHV USB Charger
- 1 x Propeller Disassemble Tool

Note:
- Batteries are not included. 1S 250mah 30C LiHV batteries with PH2.0 connector are recommended.
- The camera is not directly powered by battery. Directly powered by battery will generate a surge and burn the camera.
