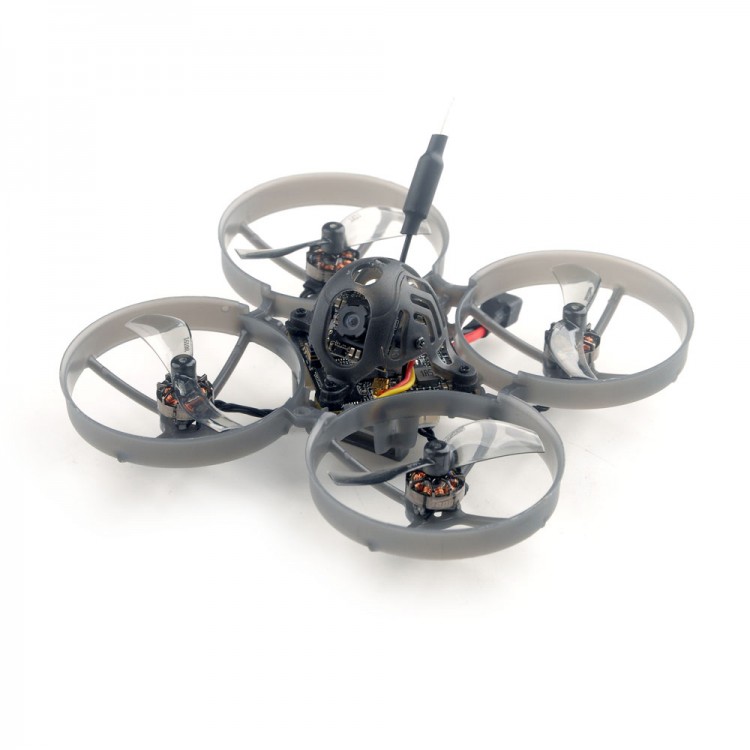

Happymodel Mobula7 1S Micro FPV Drone Quadcopter Tiny Whoop (PNP without Onboard Receiver)

Happymodel Mobula7 1S Micro FPV Drone Quadcopter Tiny Whoop (PNP without Onboard Receiver)

Features:
- 75mm whoop based on 1s power
- Flight controller with OpenVTX
- The power of VTX reaches 400mw
- Brand new RS0802 KV20000 brushless motor
- Runcam Nano3: the lightest 800TVL Camera for 1/3 CMOS
- Smooth and powerful

Specifications:
- Brand Name: Happymodel
- Item Name: Mobula7 1S 75mm Micro FPV whoop drone
- Wheelbase: 75 mm (3")
- Size: 99 x 99 x 40 mm (3.9 x 3.9 x 1.6")
- Weight: 24 g (0.05 lb)

Package Included:
- 1 x Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
- 1 x X12 PNP V1.0 flight controller without onboard receiver
- 4 x RS0802 KV20000 brushless motors
- 1 x Gemfan 1610-2 bi-blade propellers (4CW+4CCW)
- 1 x Runcam Nano3 800TVL camera for 1/3 CMOS
- 1 x Onboard 5.8G Openvtx 0mw~400mw VTX
- 1 x 1S parallel charging board
- 1 x Propeller disassemble tool
- 1 x Extra camera canopy

Note:
- Compatible with 1S Lipo (DC 2.9V-4.35V) / LIHV.
- Batteries are not included. Batteries such as 1S 450mah/550mah/650mah with PH2.0 connector are recommended.

Specifications of Spare Parts:
Motor:
- Mode: RS0802 KV20000
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia.*Len): 10.5mm*13.5mm
- Weight: 2.0g

Propellers:
- Weight: 0.24g
- Material: PC
- Pitch: 1 inch
- Props Diameter: 40mm
- Center Thickness: 5mm
- Center Hole Diameter: 1.5mm

Flight Controller:
- For X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in voltage detection
- Built-in current sensor

Onboard 4in1 ESC:
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware

PNP Version (without onboard receiver):
- Full UART1 for external Receiver
- Support protocols for CRSF/GHOST/SBUS/IBUS/DSMX
- IR1 pad (invert RX1) used for SBUS input

Onboard 5.8g OpenVTX:
- Firmware version: OpenVTX
- Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)

Runcam Nano3:
- Model: RunCam Nano 3
- Image Sensor: 1/3" for CMOS
- Horizontal Resolution: 800TVL
- Lens: 2.1mm (M8) FOV 150°
- Signal System: NTSC
- S/N Ratio: >50dB
- Electronic Shutter Speed: Automatic
- Auto Gain Control (AGC): Automatic
- Min. Illumination: 0.01Lux at 1.2F
- D-WDR: Automatic
- Day/Night: Color
- Power:DC 3-5.5V
- Current: 110mA at 5V; 120mA at 3.3V
- Housing Material: ABS
- Net Weight: 1.2g
- Dimensions: L14mm*W14mm*H9mm
