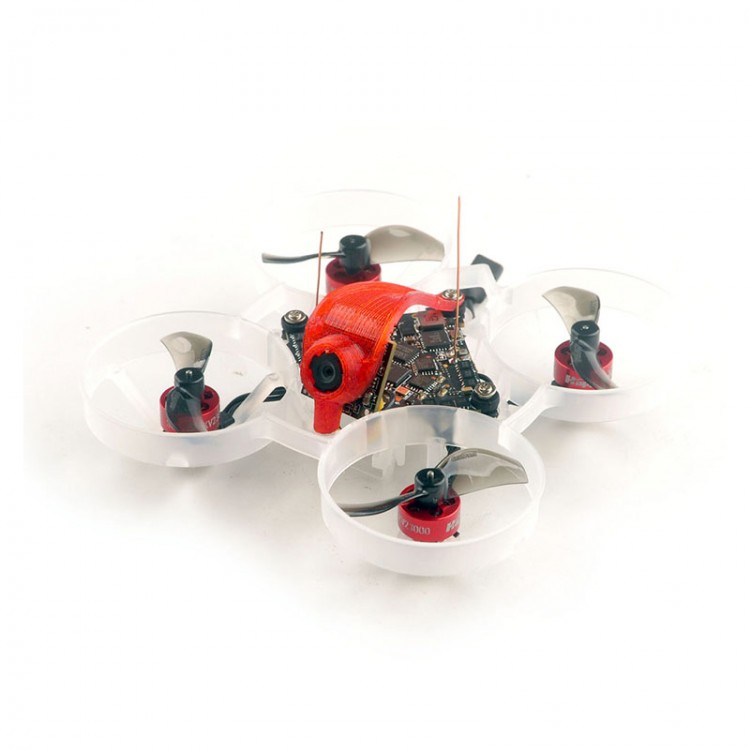

Happymodel Tiny Whoop Drone Mobeetle6 65MM 1S Indoor FPV Drone 400MW VTX (Receiver for ELRS V2.0)

Happymodel Tiny Whoop Drone Mobeetle6 65MM 1S Indoor FPV Drone 400MW VTX (Receiver for ELRS V2.0)

Specifications:
- Brand Name: Happymodel
- Item Name: Mobeetle6 whoop and toothpick 2-IN-1 FPV Racer Drone
- Wheelbase: 65mm
- Size: 80mm*80mm*30mm
- Weight: 17.5g (without battery)

Features:
- The lightest 1S Whoop and Toothpick 2-IN-1 FPV drone
- Comes with tooth pick frame for convert
- Powerful and efficiency
- The lightest 1s AIO 5IN1 F4 flight controller
- New SE0702 brushless motors for Unibell with pcb wire board
- Built-in VTX for OPENVTX up to 400mw
- Low profile canopy design

Package Included:
65mm whoop Frame (Mobula6 frame) x 1
65mm toothpick frame (Mobeetle6 frame) x 1
For DiamondF4 ELRS built-in SPI ELRS receiver x 1
SE0702 KV23000 brushless motor for Unibell x 4
Gemfan 1210 31mm propeller (4CW+4CCW) x 1
Runcam Nano3 x 1
Built-in 5.8G 48ch 25mw-400mw VTX for OPENVTX x 1
Mobula6 canopy x 1
Propeller disassemble tool x 1
Screwdriver x 1

Note:
- Batteries are not included. 2pcs 1s 300mah Lipo batteries are recommended.

Spare Parts Specifications:
Motor:
- Mode: SE0702 KV23000
- Configuration: 9N12P
- Stator Diameter: 7mm
- Stator Length: 2mm
- Shaft Diameter: 1mm
- Motor Dimension (Dia.*Length): 9.5mm*14mm
- Weight: 1.5g

Propeller:
- Weight: 0.19g
- Material: PC
- Pitch: 1 inch
- Props Dia.: 30mm
- Center Hole Dia.: 1mm

Flight Controller:
- (For ELRS SPI RX version) For DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 or ICM20689 or BMI270 (SPI connection)
- Original whoop size compatible
- Built-in 5A (each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in OSD (SPI Control) for Betaflight
- Built-in 5.8G VTX for OPENVTX
- Built-in SPI receiver for ELRS V2.0/Frsky
- Built-in 5V 1A BEC

Onboard 4in1 ESC:
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HV
- Current: 5A continuous peak 6A (3 seconds)
- Programmable
- Factory firmware: O_H_50_REV16_8.HEX
- Default protocol: DSHOT600

Onboard SPI 2.4GHz Receiver for ExpressLRS:
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- Firmware version for ExpressLRS: V2.0
- RF Frequency: 2.4GHz
- Antenna: Enameled copper wire antenna
- Telemetry output Power: <12dBm
- Receiver protocol: for SPI ExpressLRS
- Compatible with TX Module for ExpressLRS V2.0
- Couldn't flash separately firmware for ExpressLRS

Onboard 5.8g VTX for OPENVTX:
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): < 650ma (400mw)

Runcam Nano3:
- Model: RunCam Nano 3
- Image Sensor: 1/3" for CMOS
- Horizontal Resolution: 800TVL
- Lens : 2.3mm (M6.5) FOV 140°
- Signal System: NTSC
- S/N Ratio: >50dB
- Electronic Shutter Speed: Automatic
- Automatic Gain Control (AGC): Automatic
- Min. Illumination: 0.01Lux at 1.2F
- D-WDR: Automatic
- Day/Night: Color
- Power:DC 3-5.5V
- Current: 110mA at 5V; 120mA at 3.3V
- Housing Material: ABS
- Net Weight: 1.2g
- Dimensions: L14mm*W14mm*H9mm
