HAUTE PAD B16 16-Button Arcade Stick Arcade Controller with Square Buttons and Greywood V4 Switches

HAUTE PAD B16 16-Button Arcade Stick Arcade Controller with Square Buttons and Greywood V4 Switches

Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Features:
* Supports multiple platforms: It supports all major mainstream system platforms. For Windows PC, Android, NS, PS3, PS4 and Steam Deck

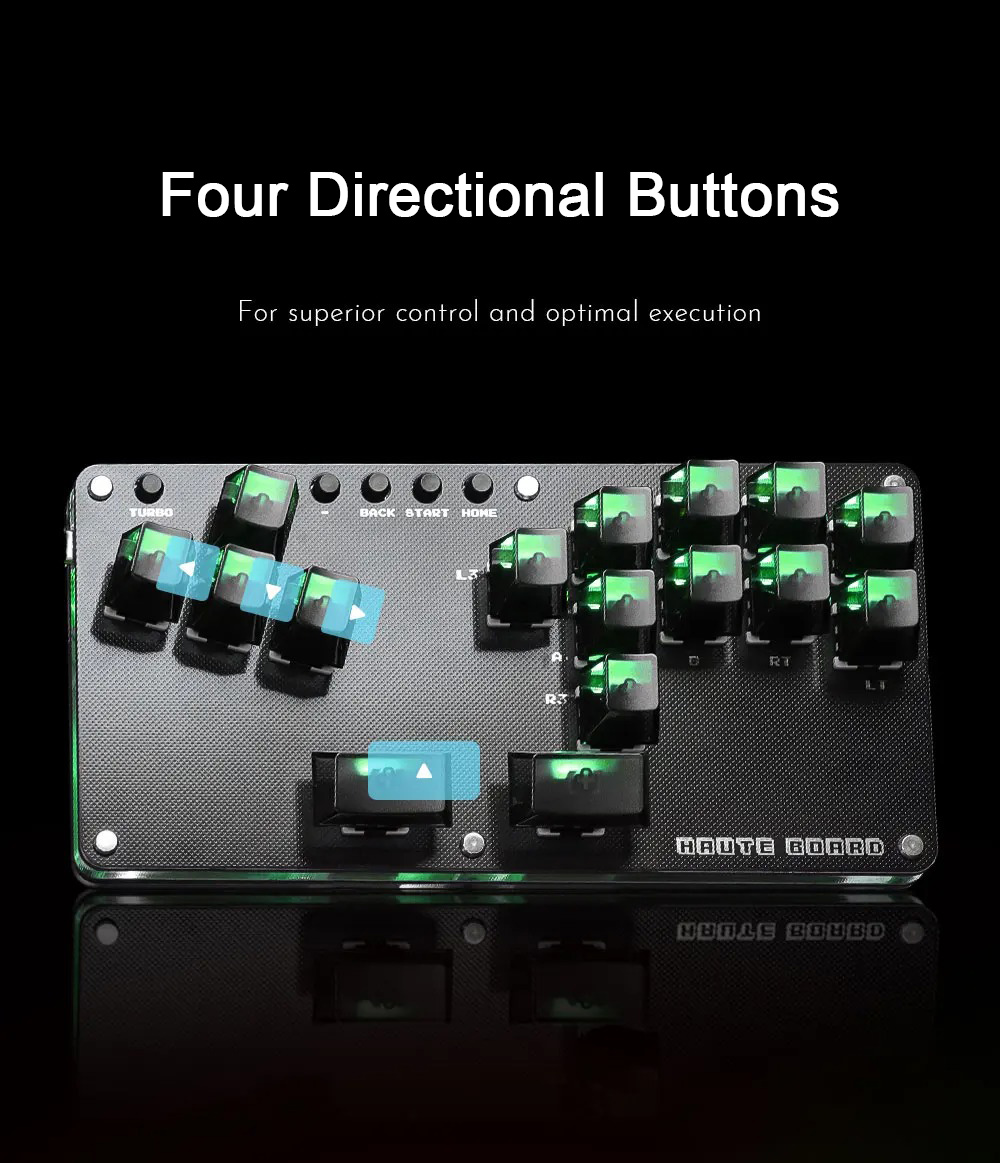

* Four directional buttons: The four directional buttons replace the joystick, providing clean and efficient game control. With more buttons, the customization options become richer. From quick pre-input charging to executing complex moves, it helps you effectively avoid input errors commonly found in traditional fighting joysticks.
* Easy to carry: It is both portable and practical. It is cooler than the original mini series, with multiple colors that can be easily swapped. The added buttons make the gaming experience more enjoyable.
* Graywood V4 switches: The switches provide ultra-precise and highly responsive input. With a shorter key travel and faster response time, the excellent accuracy helps you maximize your recovery and combo attack effectiveness.

Specifications:
* Working voltage: 5V
* Connection method: USB Type-C

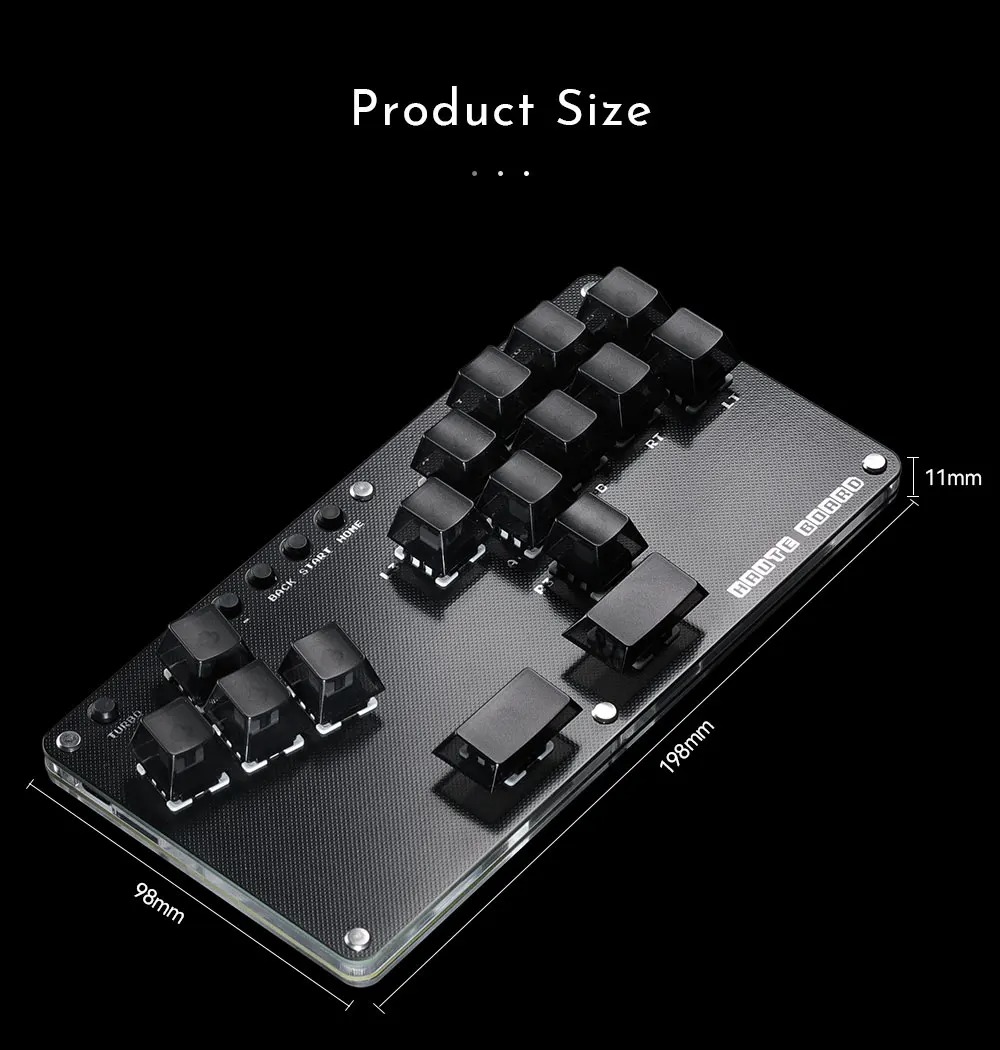

* Product size: Product size: 198mm x 98mm x 11mm
* Supported platforms: For Windows PC, Android, NS, PS3, PS4 and Steam Deck

Raspberry Pi RP2040 Chip:
* Dual-core Cortex-M0+ for ARM running at 133MHz
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossbar switch
* Integrated 264kB of on-chip SRAM, organized into six independent banks
* Manufactured using a 40nm process node, ensuring low dynamic power consumption and minimal leakage
* 1ms latency with a frame success rate above 95%
* Supports firmware updates

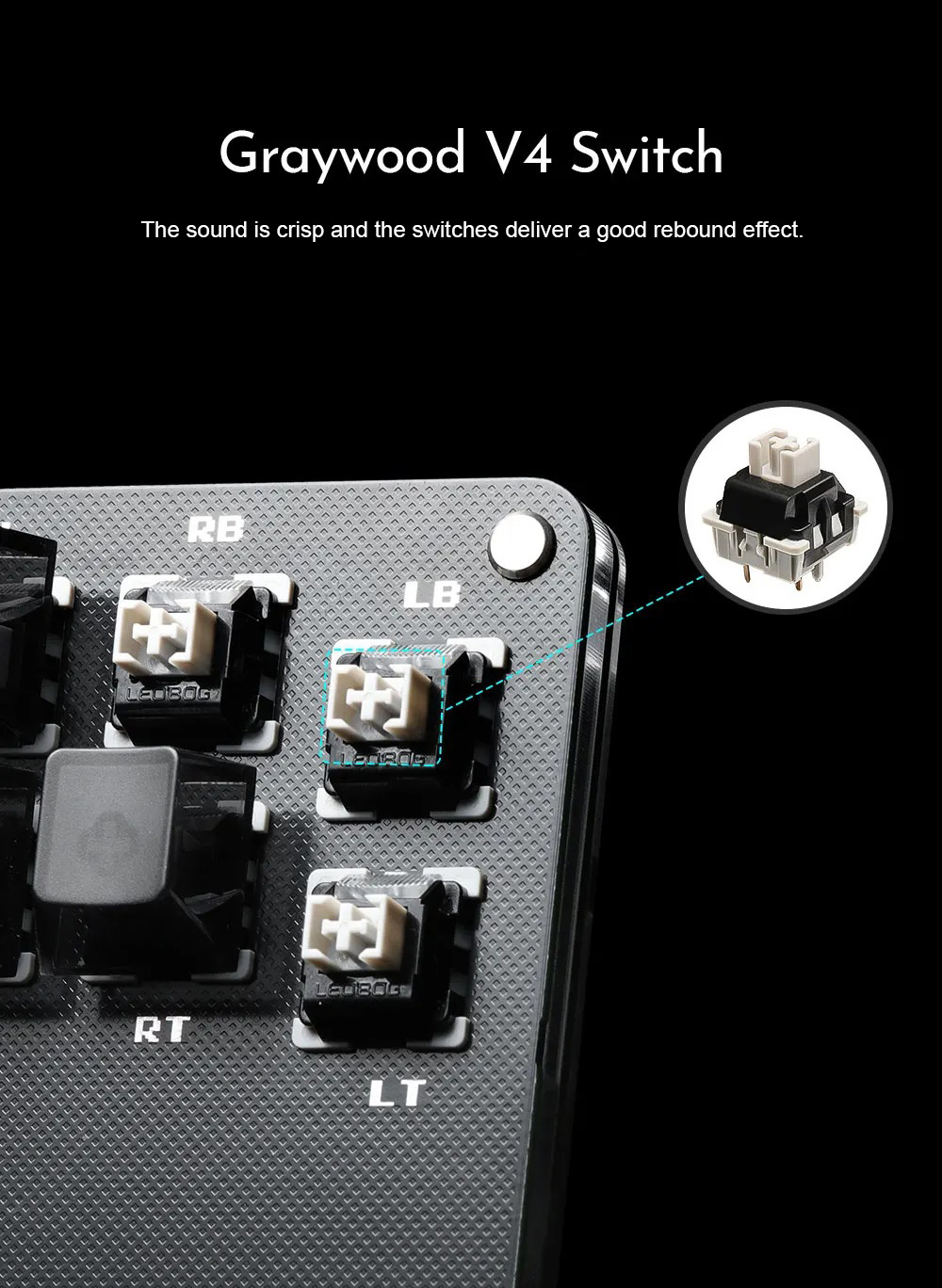

Greywood V4 Switches:
* POM stem
* 2-stage spring
* Initial force: 30gf minimum
* Total travel: 3.6 ± 0.3 mm
* Conduction: 1.5 ± 0.3 mm
* Operating force: 40 ± 3 gf
* Bottom force: 50 ± 3 gf

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

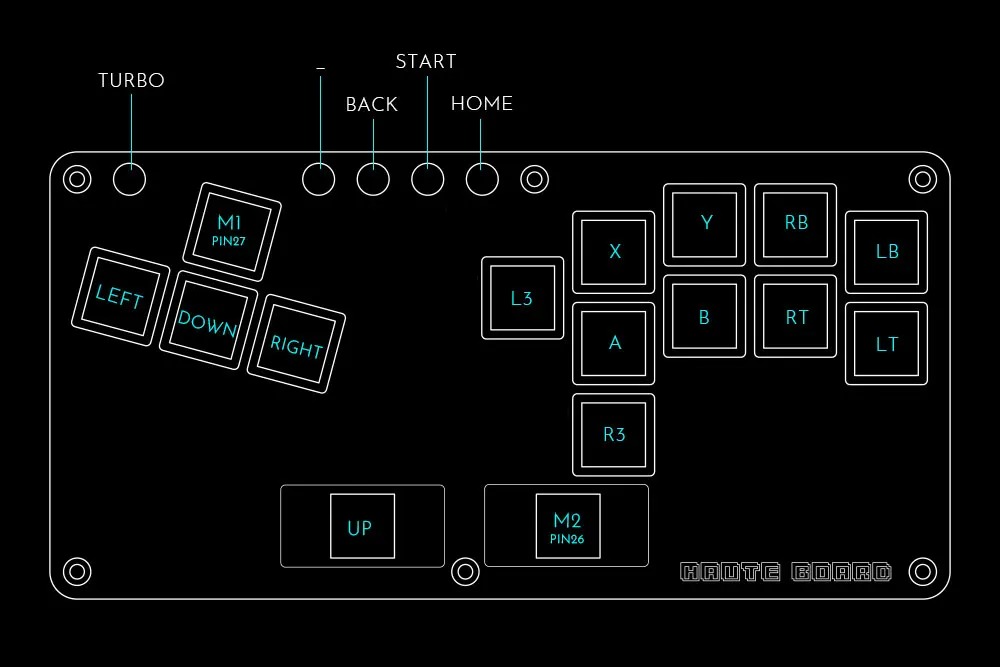

Input Mode:
* To change the input mode, hold the corresponding button while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

For PS4 Mode:
* This product will disconnect 8 minutes after connecting to the console for PS4/PS5.
* To avoid the 8-minute timeout, you can upload the required verification files for PS4 mode.

D-Pad Modes:
You can switch between the 3 D-Pad modes while using the controller by pressing one of the following default combinations:
* BACK + START + DOWN: D-Pad Mode
* BACK + START + LEFT: Emulate Left Analog Stick
* BACK + START + RIGHT: Emulate Right Analog Stick
The selected D-Pad mode is saved across power cycles.

Invert D-Pad Y-axis:
A toggle is available to invert the Y-axis input of the D-pad, providing additional input flexibility. The default hotkey to toggle this feature is:
* HOME + START + RIGHT: Y-axis Inversion
Note: This is a temporary hotkey mapping for the feature. Please check updated releases for potential changes.

SOCD Modes:
Simultaneous Opposite Cardinal Direction (SOCD) cleaning ensures the controller follows specific directional input rules when sending inputs to the computer/console. Users can switch between the 3 SOCD modes while using the controller by pressing one of the following default button combinations:
* HOME + START + UP: Up Priority Mode
   Up + Down: Up
   Left + Right: Neutral (Standard stick-less behavior)
* HOME + START + DOWN: Neutral Mode
   Up + Down: Neutral
   Left + Right: Neutral
* HOME + START + LEFT: Last Input Priority Mode (Example: Hold Up, then hold Down = Down. Release and re-press Up = Up. Applies to both axes)

The selected SOCD mode is saved across power cycles.

First Time Setting of TURBO:
1. Enter the web configurator page.
2. Go to Configuration > Add-Ons Configuration > Turbo > Enable.
3. Type "14" in the Turbo Pin field, then press Save at the bottom of the page. Reconnect the board to activate the turbo function.

Turbo Setting:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 0.45kg

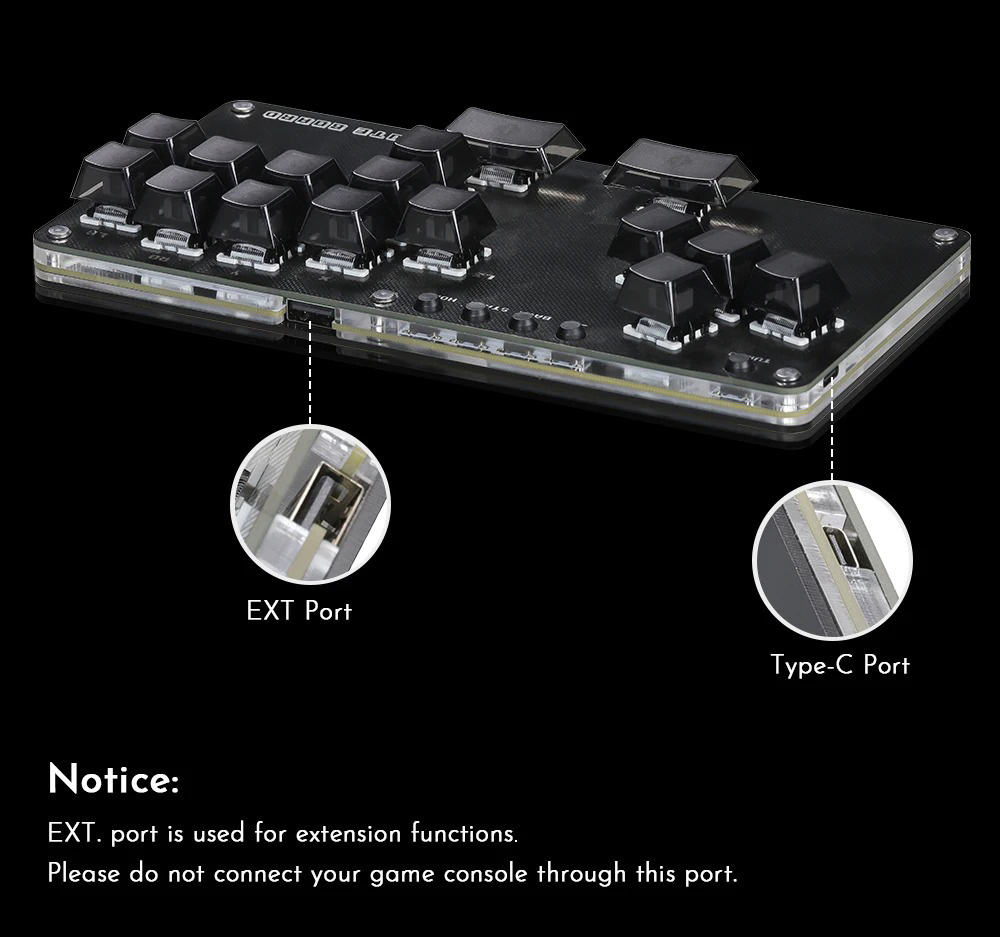

Note:
* The EXT. port is intended for extension functions.
* Please do not connect your game console to this port.
