HAUTE PAD R16 16-Button Arcade Stick All Button Arcade Controller (Black Acrylic Panel) for Hitbox

HAUTE PAD R16 16-Button Arcade Stick All Button Arcade Controller (Black Acrylic Panel) for Hitbox

Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Features:

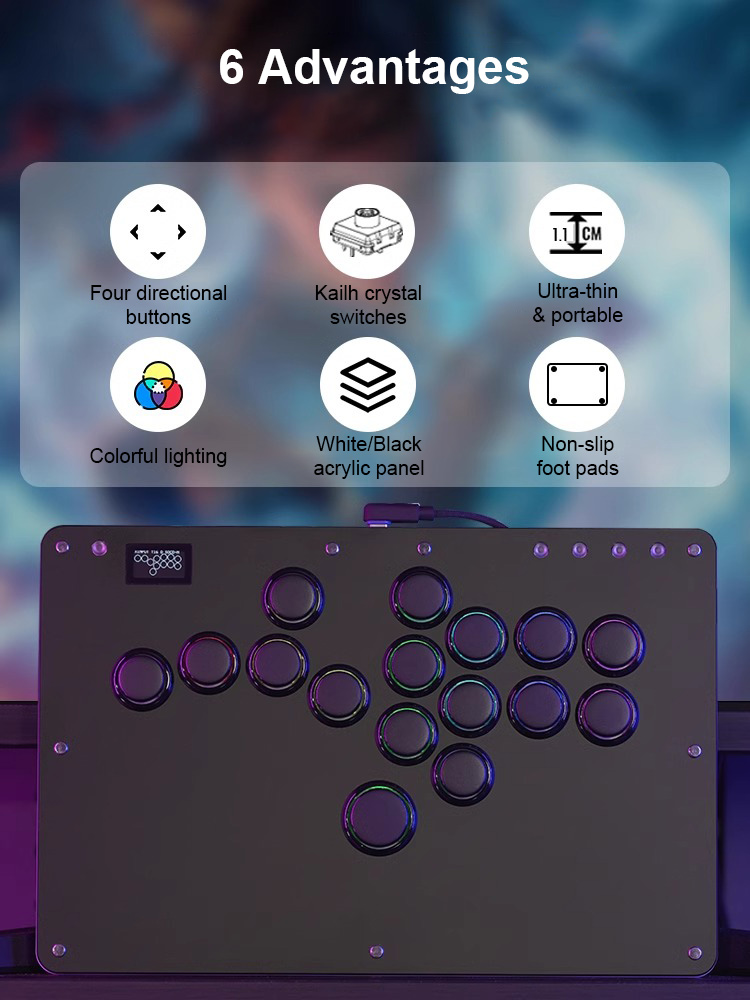

* HAUTE PAD R16 series arcade controller

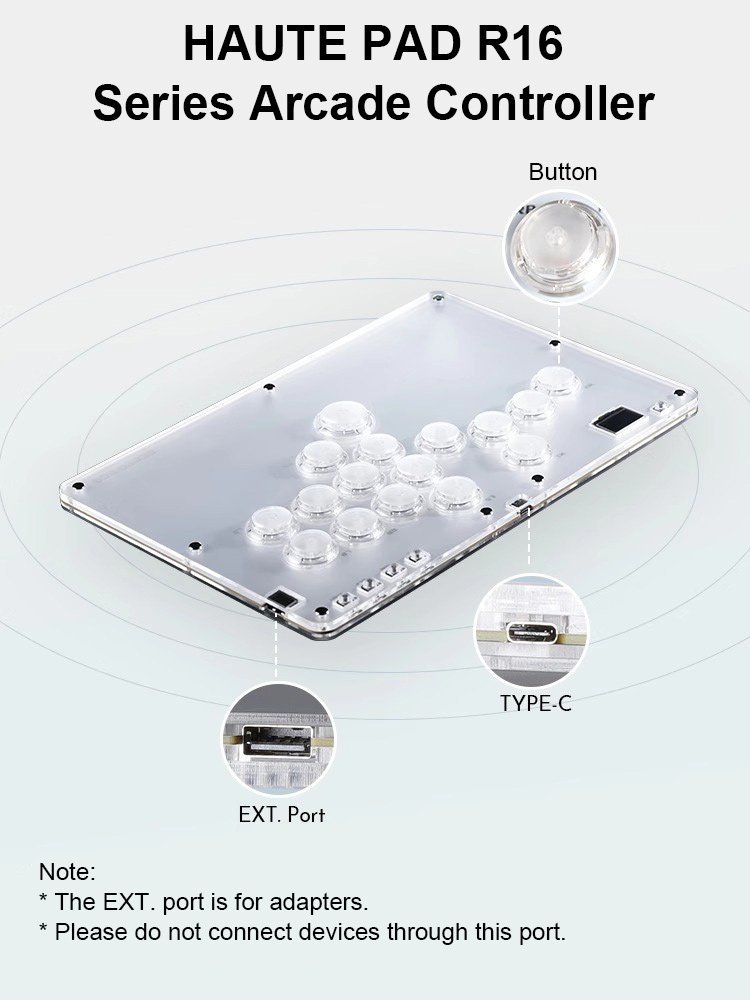

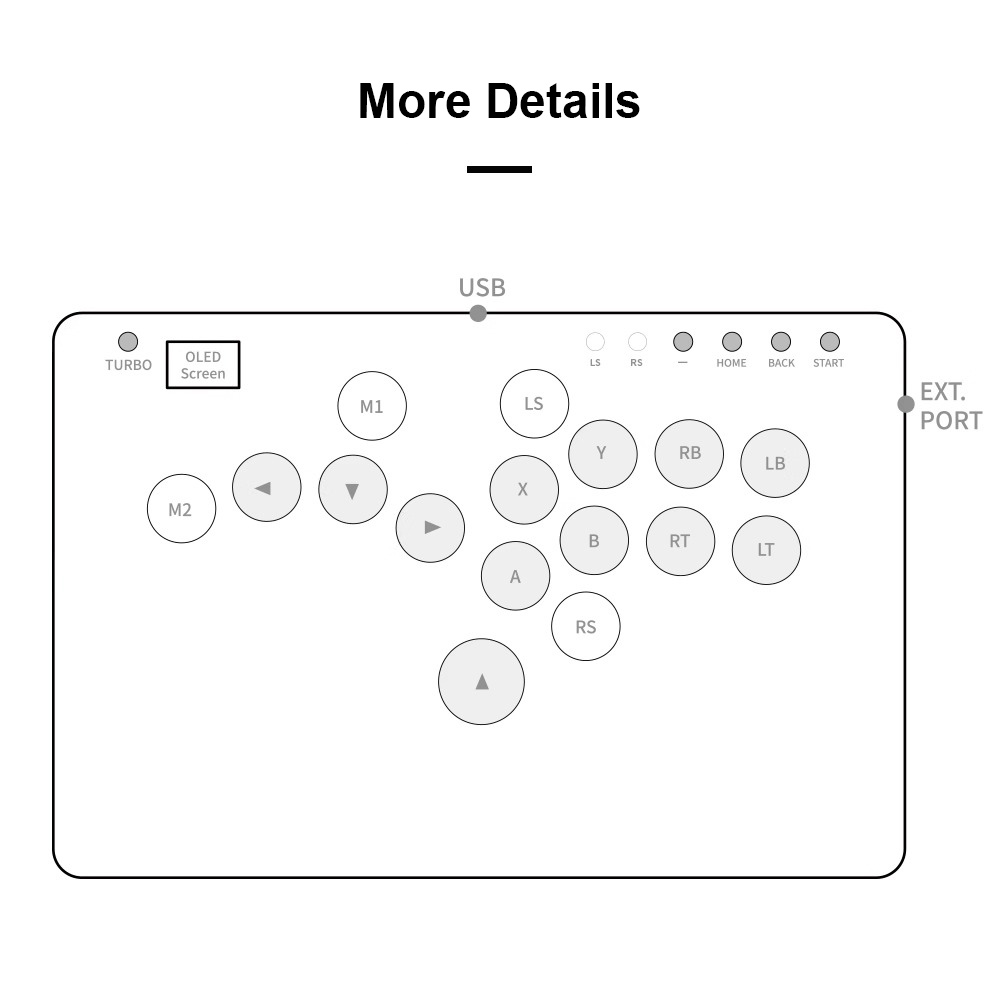

* With a type-c interface and an EXT. Port

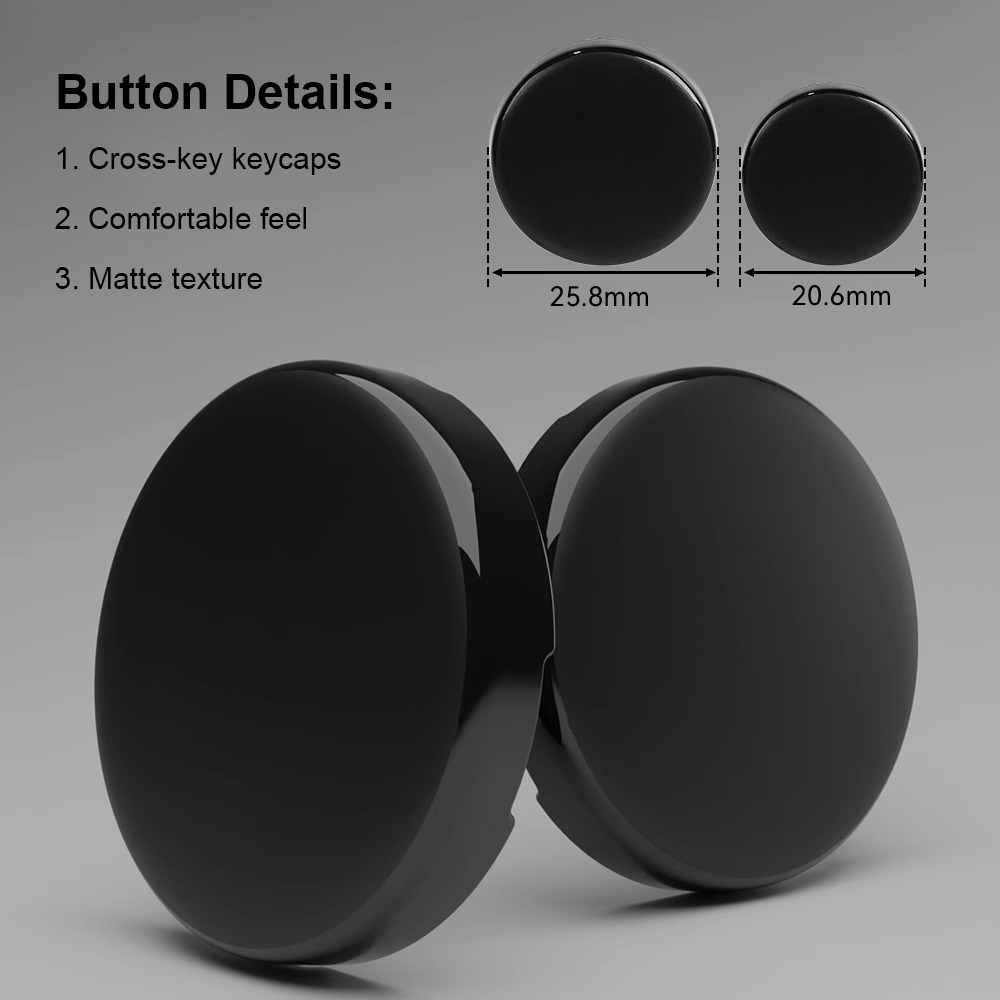

* Keycap design & hot-swap

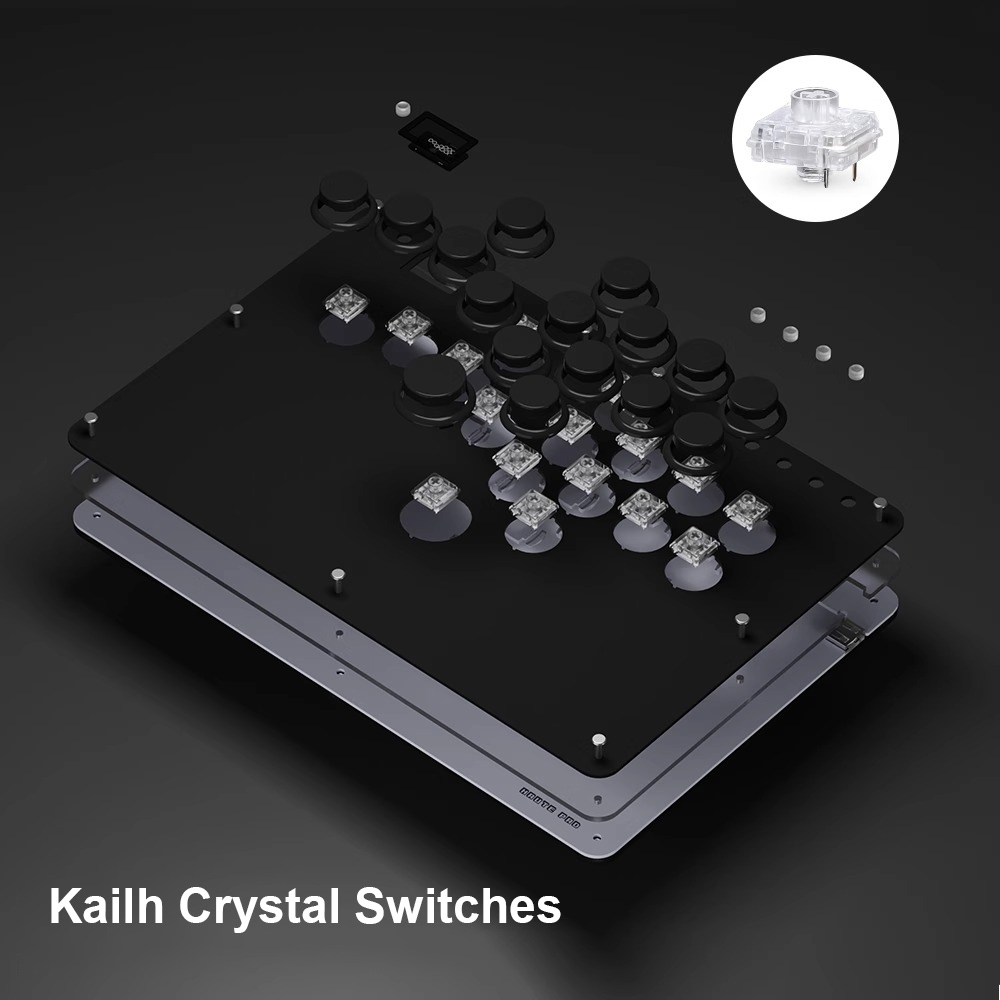

* Kailh crystal switches

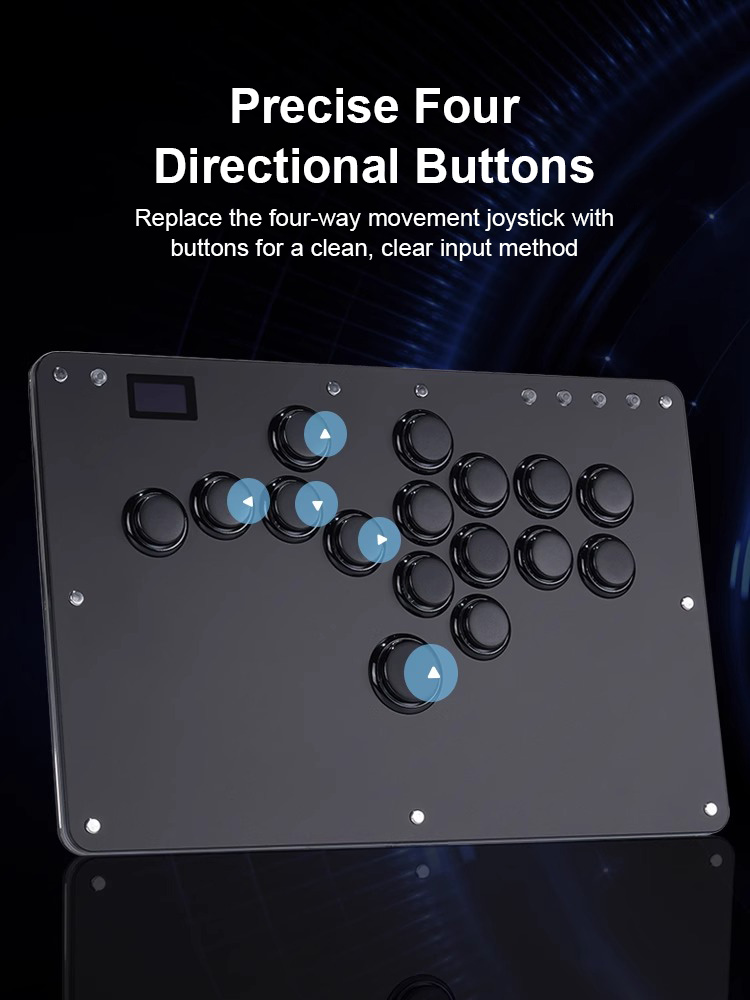

* Four directional buttons: Replace the four-way movement joystick with buttons for a clean, clear input method
* Ultra-thin and portable

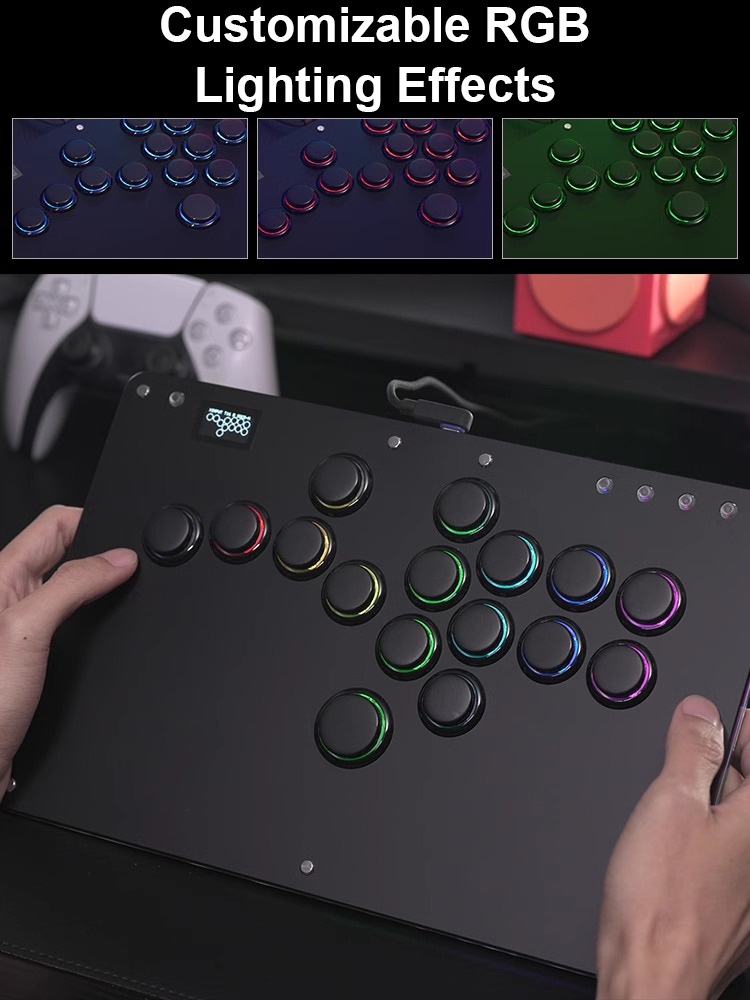

* Customizable RGB lighting effects

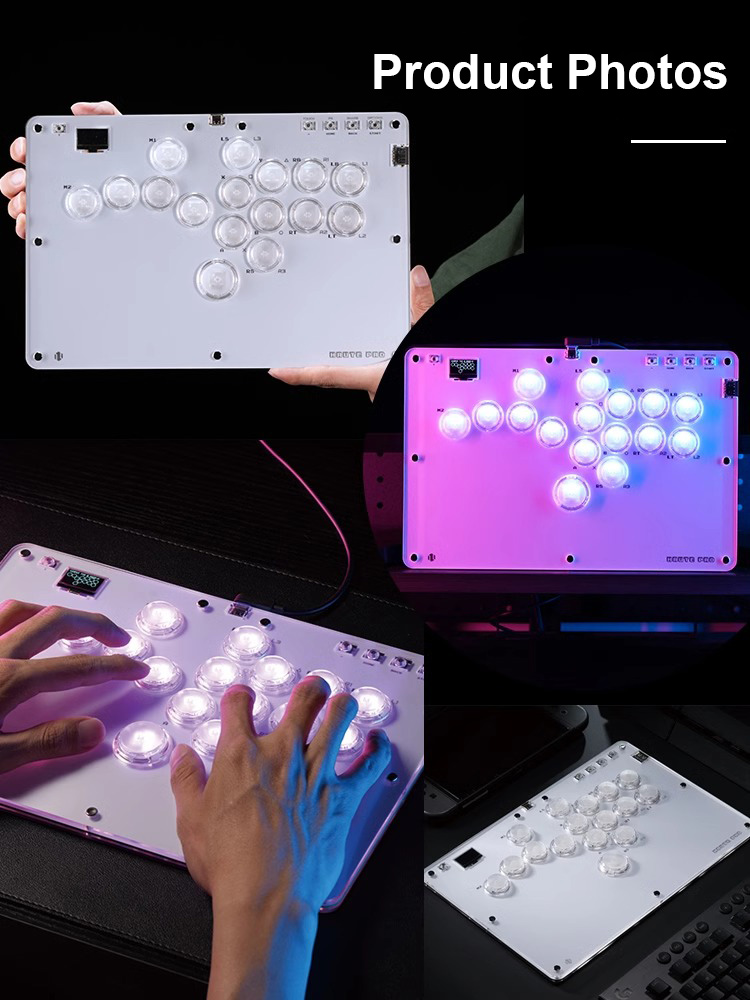

* White/Black acrylic panel
* Non-slip foot pads

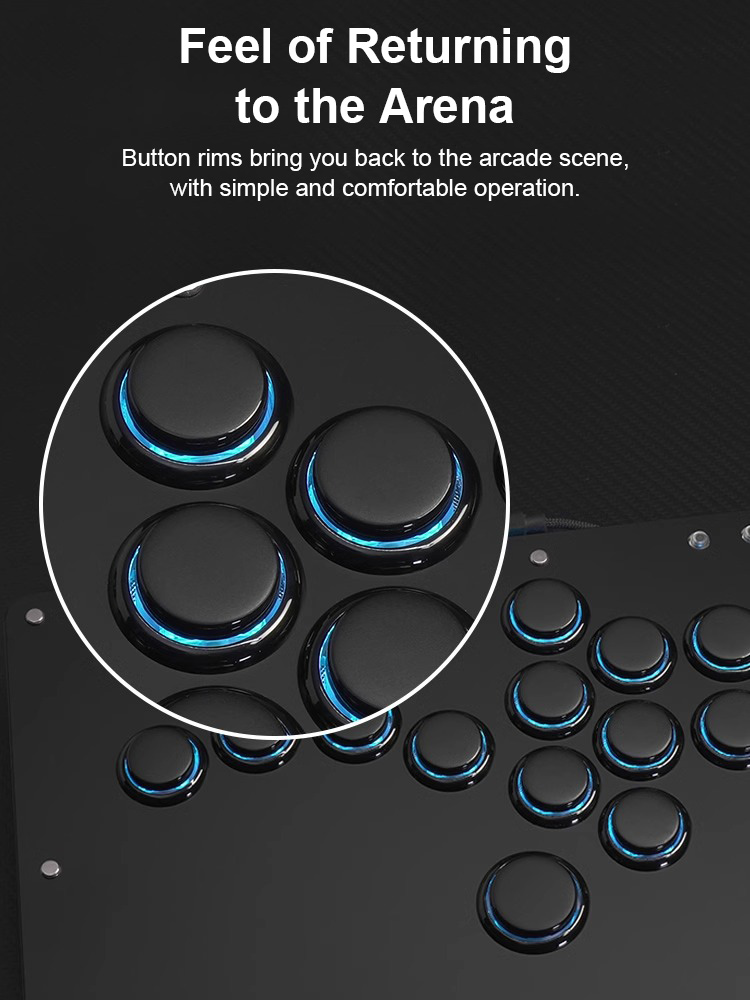

* Feel of returning to the arena: Button rims bring you back to the arcade scene, with simple and comfortable operation

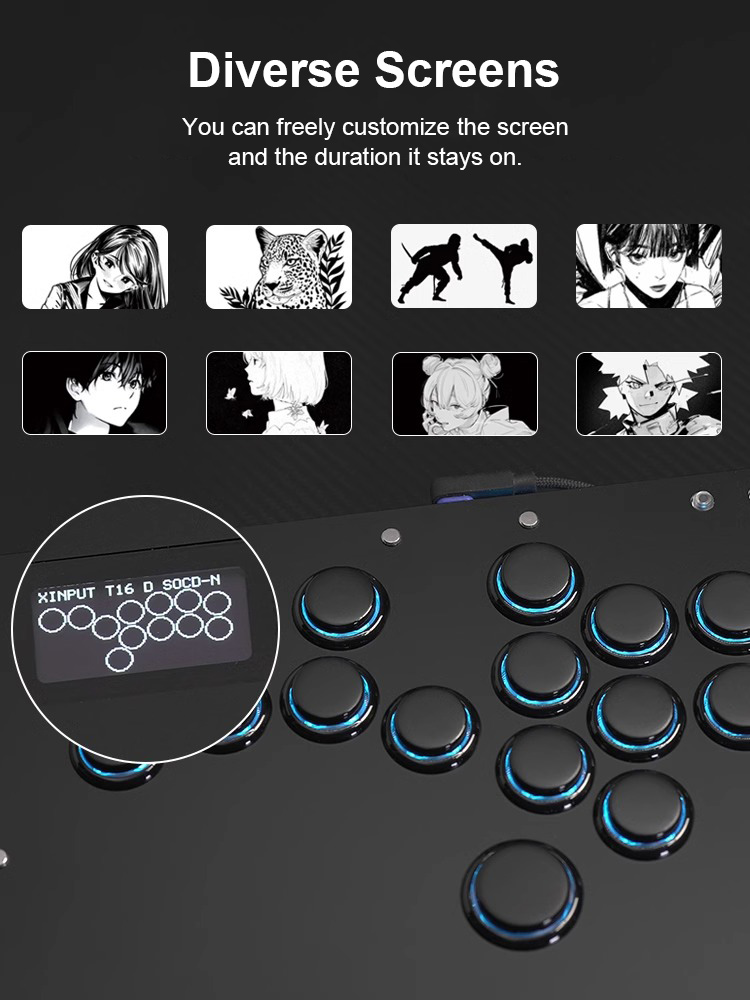

* Diverse screens: You can freely customize the screen and the duration it stays on
* Supports multiple platforms: For PC, Android, NS, PS5, PS4, Steam Deck and Arcade. Direct connection mode for PS5 is not supported

Specifications:
* Working voltage: 5V
* Connection method: USB Type-C

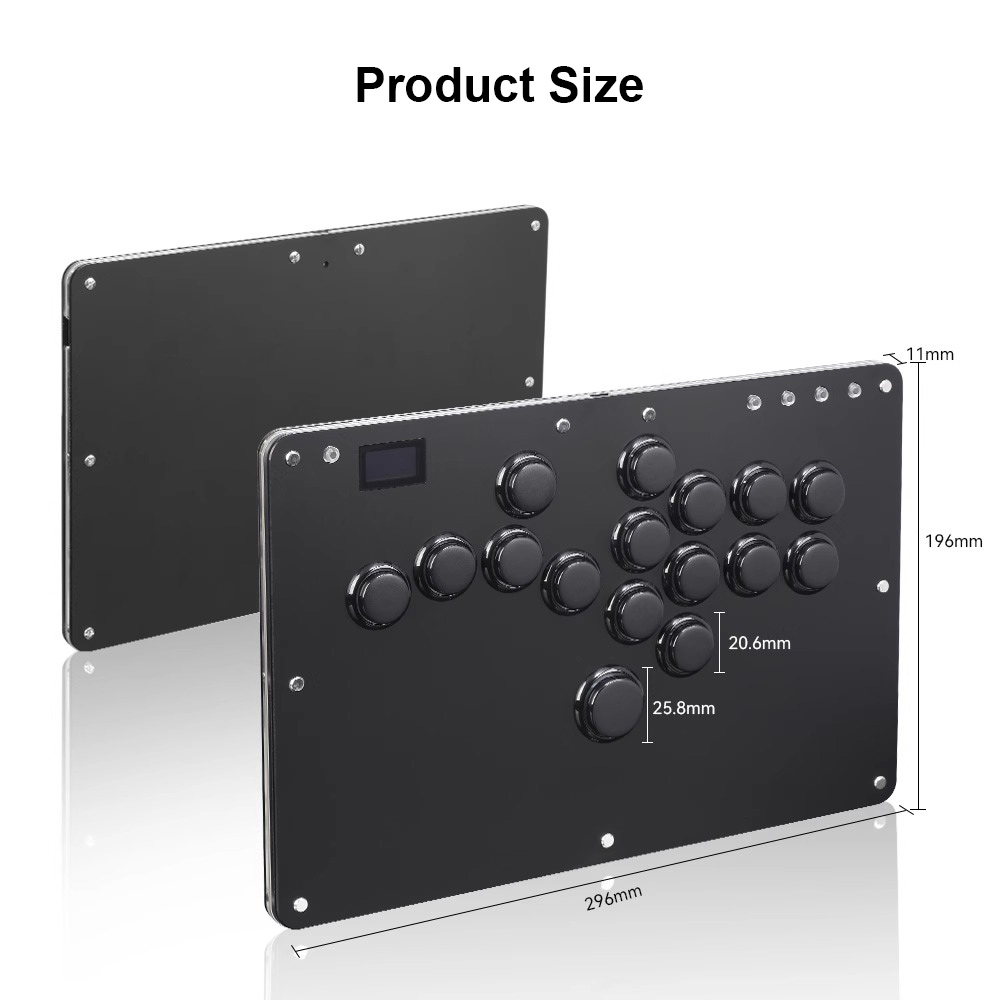

* Product size: 296mm x 196mm x 11mm
* Supported platforms: For PC, Android, NS, PS5, PS4, Steam Deck and Arcade (Direct connection mode for PS5 is not supported)

Raspberry Pi RP2040 Main Control Chip:
* Dual-core Cortex-M0+ for ARM running at 133MHz
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossbar switch
* Integrated 264kB of on-chip SRAM, organized into six independent banks
* Manufactured using a 40nm process node, ensuring low dynamic power consumption and minimal leakage
* 1ms latency with a frame success rate above 95%
* Supports firmware updates

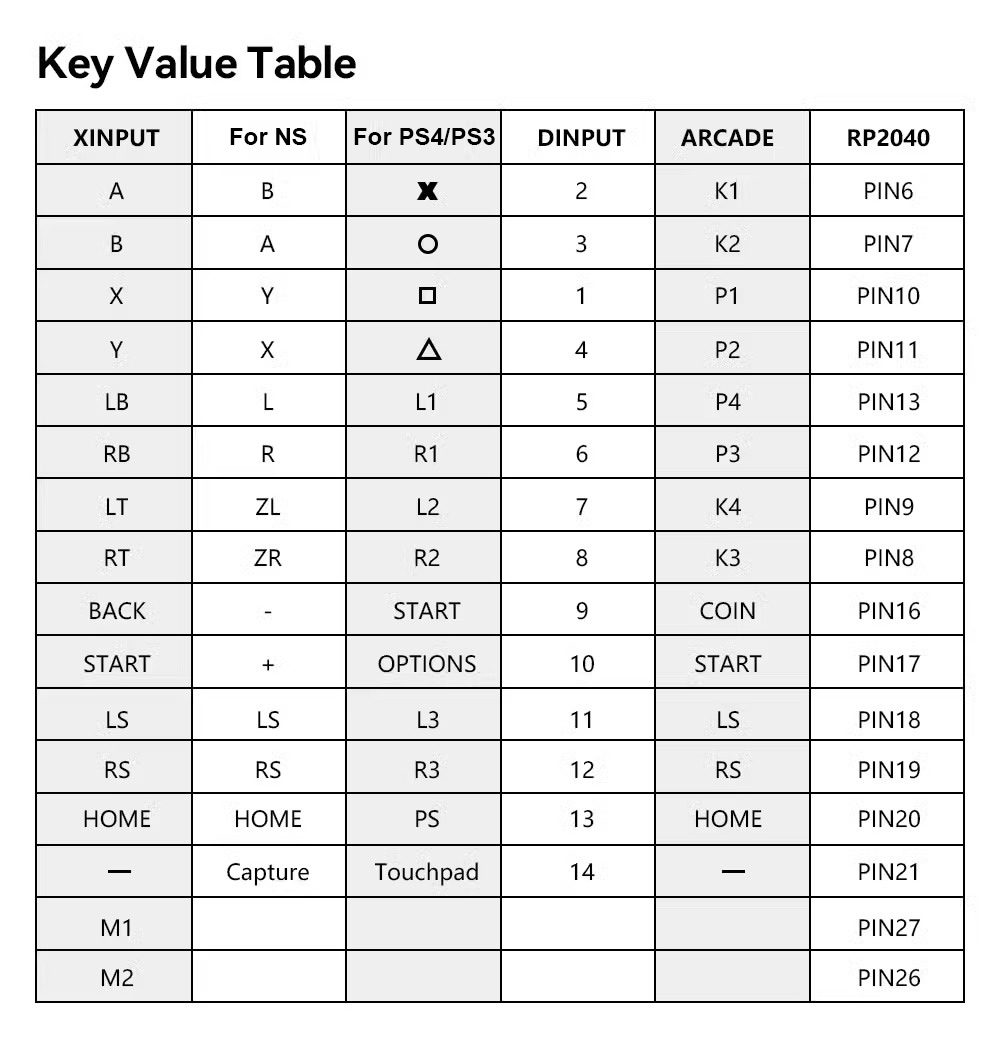

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, hold the corresponding button while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 1.35kg

Note:
* If you want to connect it to the console for PS4 or PS5, you will need a converter or a dongle. Contact us to purchase separately.
