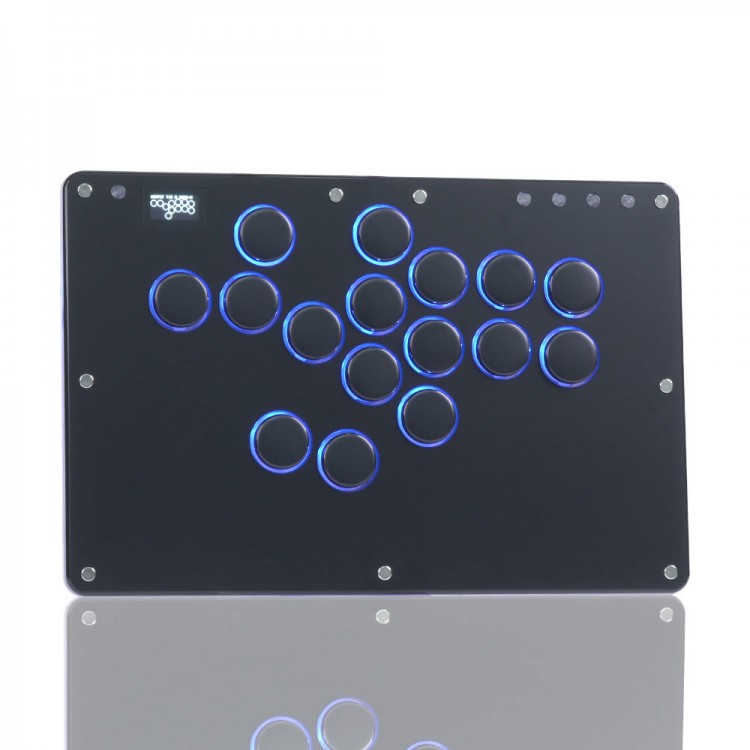

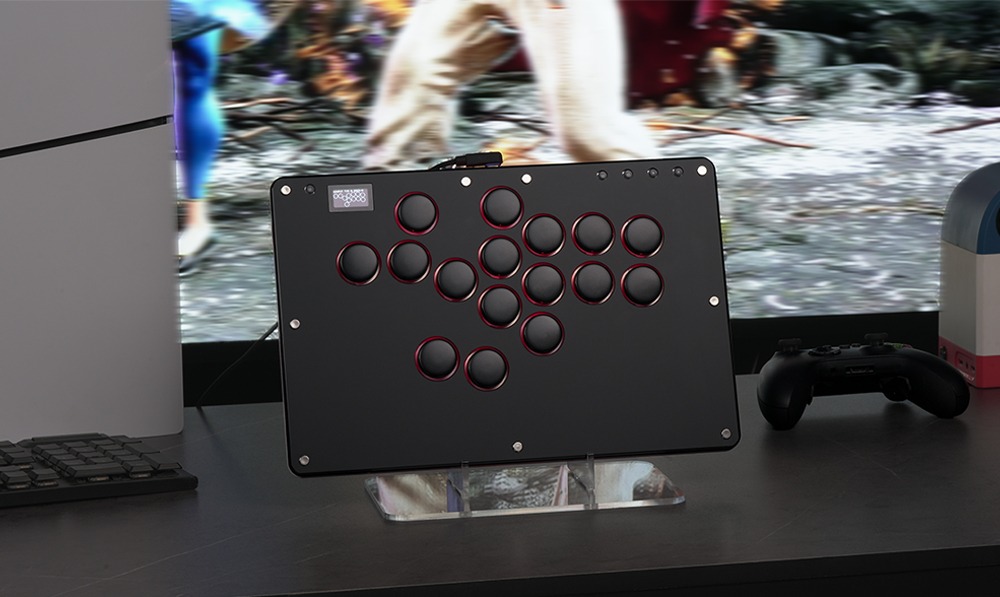

HAUTE PAD T16 PRO V2 Black 16-Button Arcade Stick w/ Crystal Low Profile Switches & Chamfered Edges

HAUTE PAD T16 PRO V2 Black 16-Button Arcade Stick w/ Crystal Low Profile Switches & Chamfered Edges

Attention:
Our store sells the Haute42 game controller, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Features:

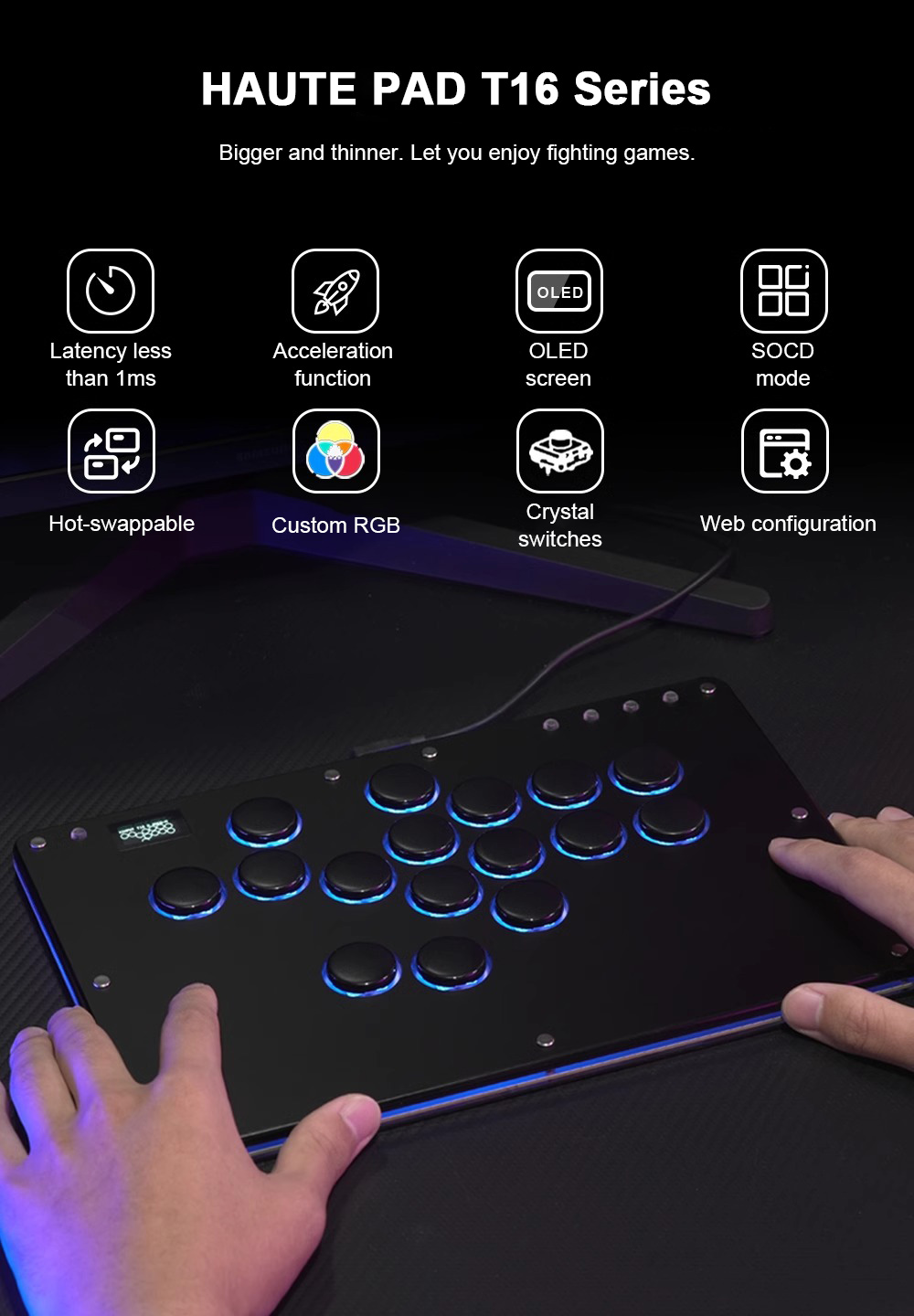

* Enjoy fighting games with a larger and thinner design

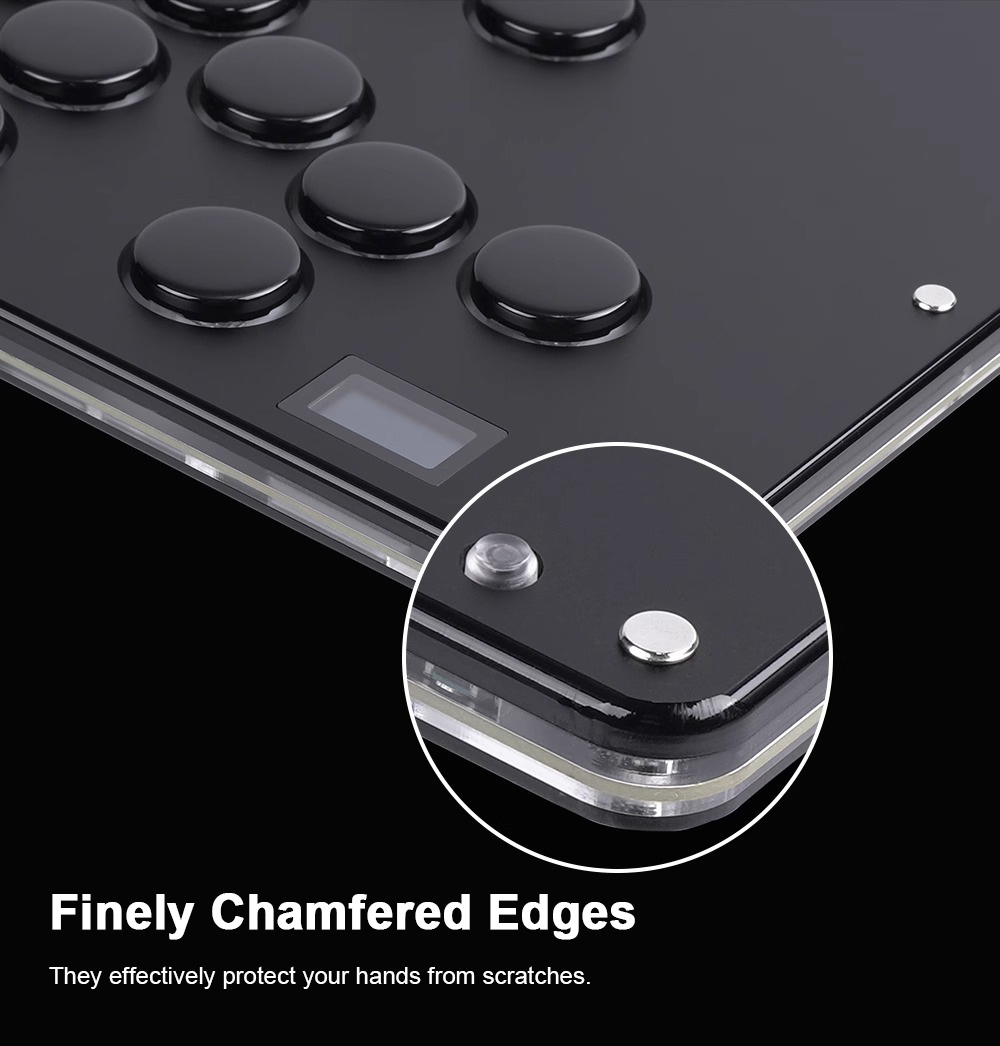

* Finely chamfered edges effectively protect your hands from scratches
* Less than 1 millisecond latency
* Acceleration function
* With an OLED screen
* SOCD mode
* Hot-swappable
* Web configuration
* Supports multiple platforms: for PC, Android, NS, PS3, PS4, PS5, Steam Deck and Arcade

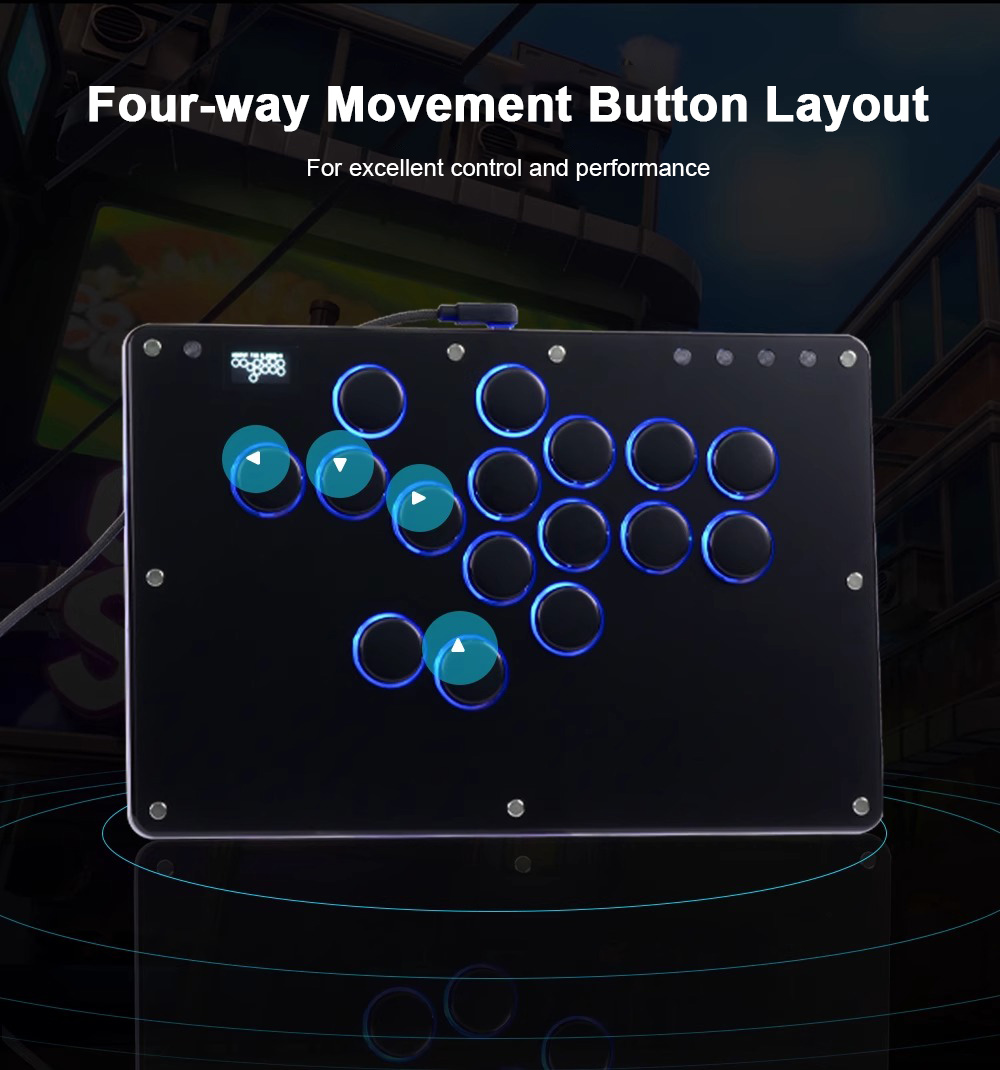

* Four-way movement button layout for excellent control and performance

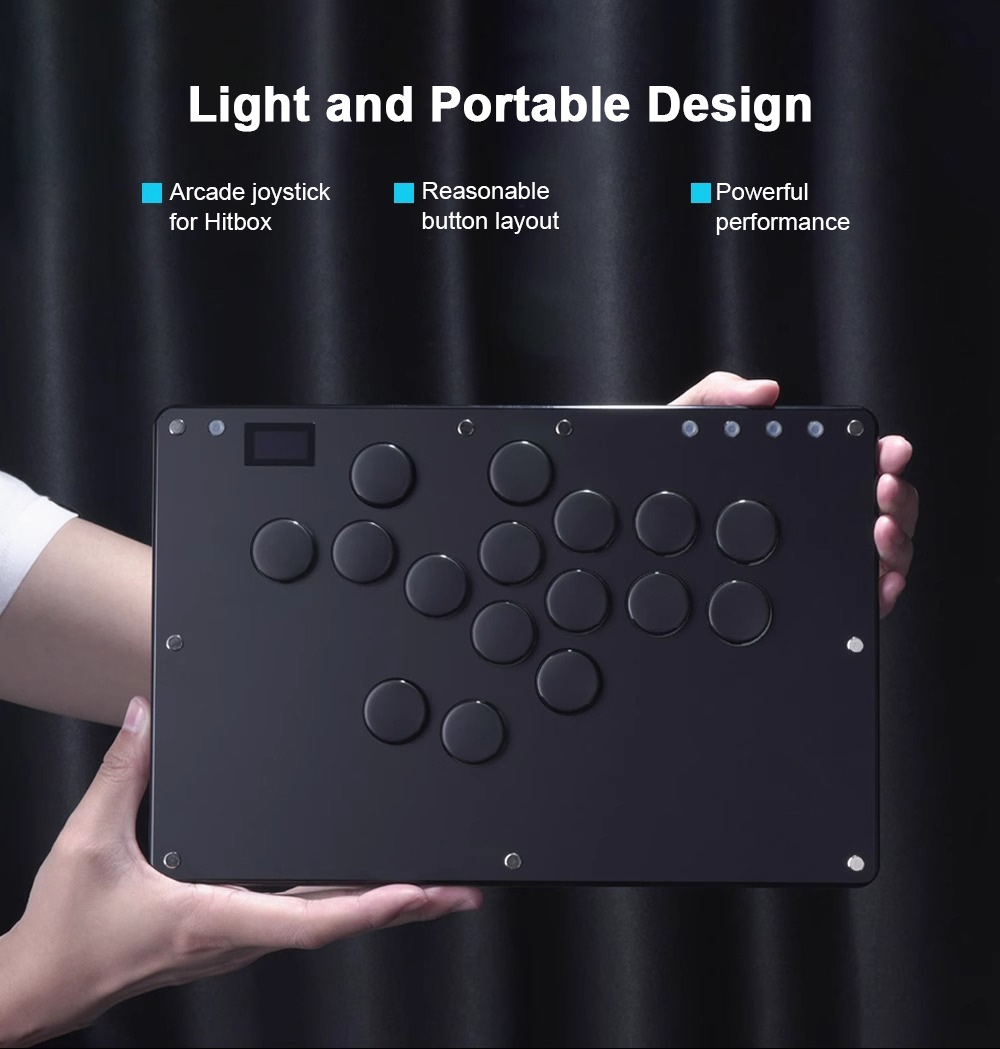

* Slim and portable design: no joystick design with reasonable button layout
* Powerful performance and you deserve it

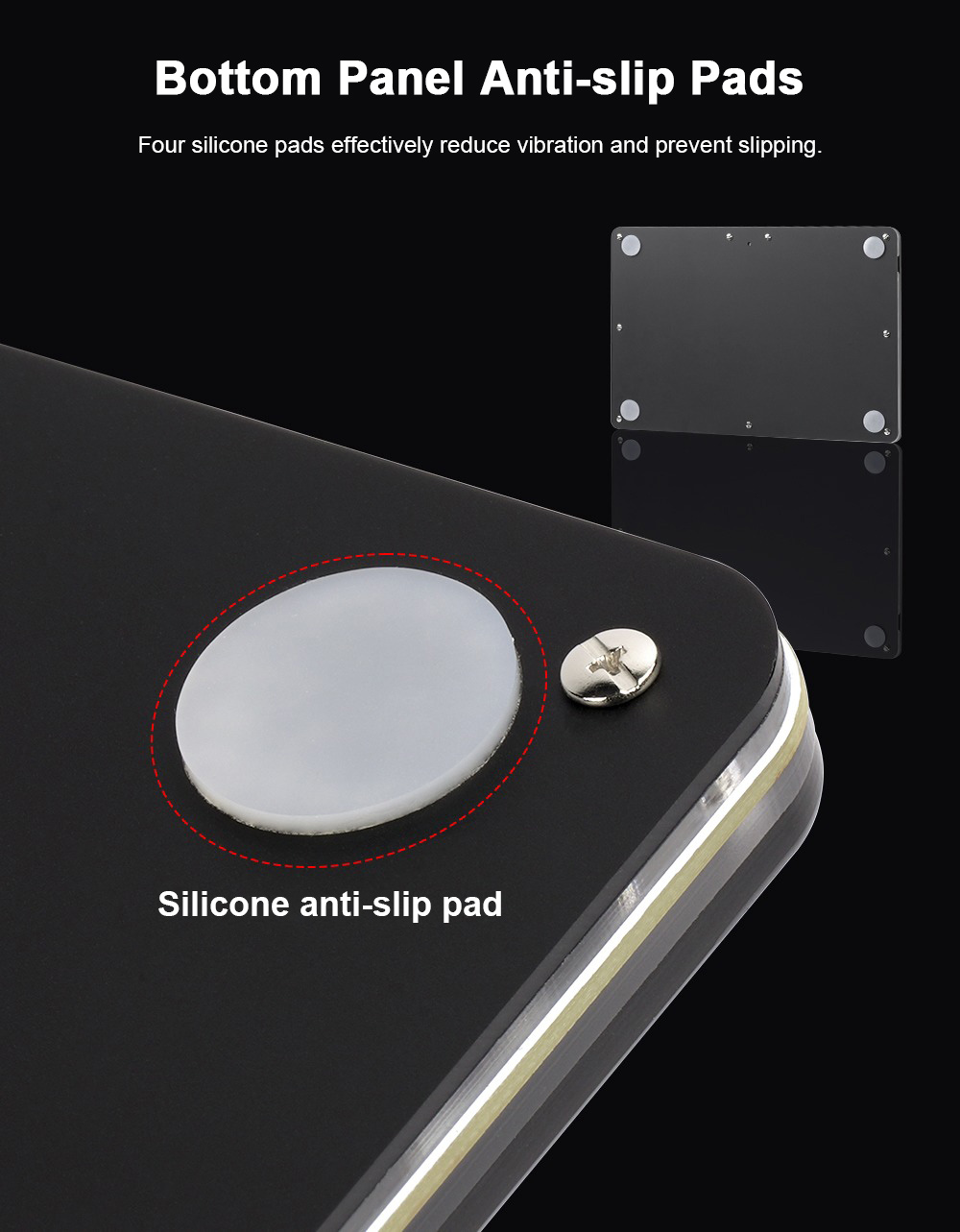

* Bottom panel anti-slip pads: Four silicone pads effectively reduce vibration and prevent slipping

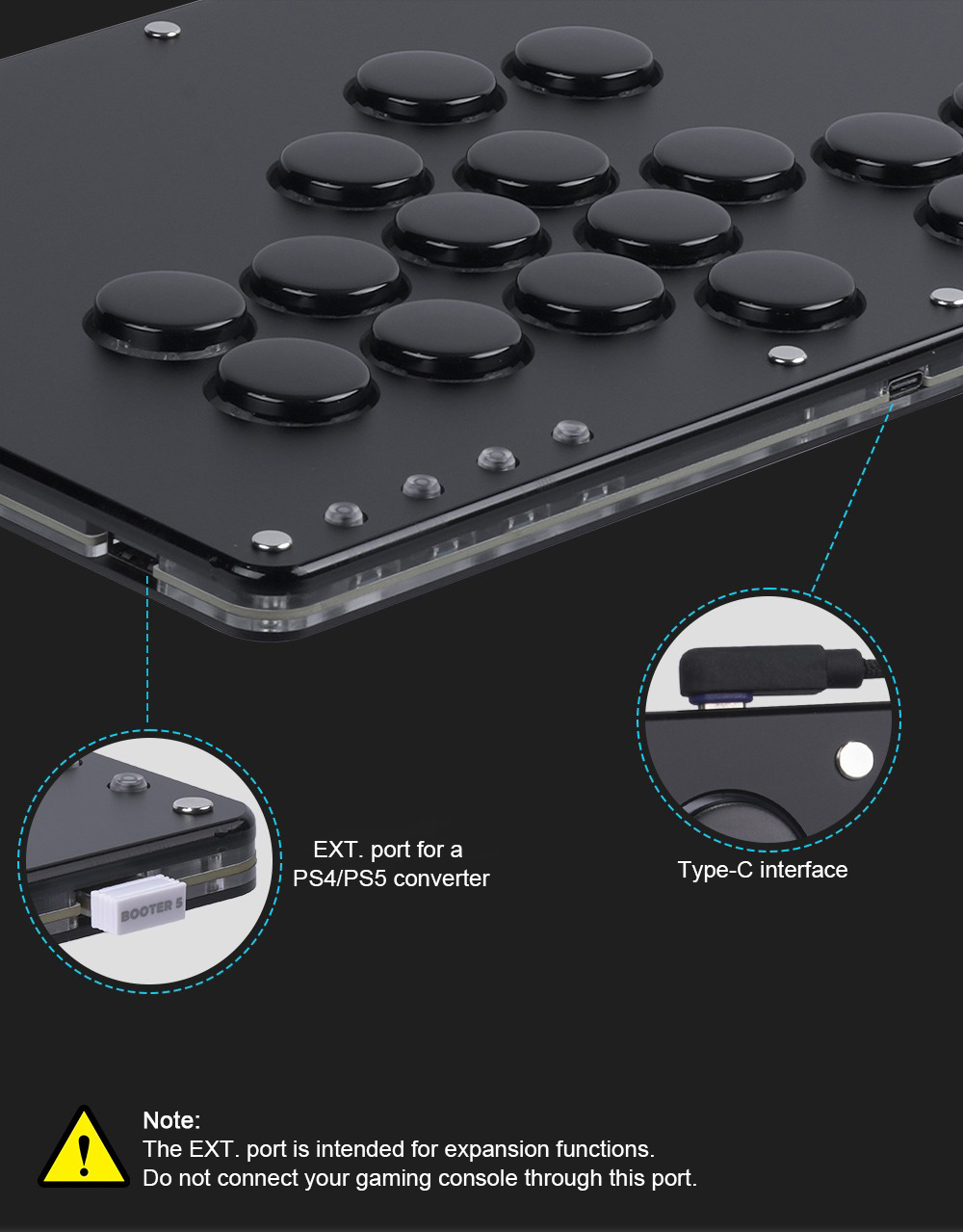

* Connectivity Features: Equipped with an EXT. port for a PS4/PS5 converter and a Type-C interface. Note: The EXT. port is intended for expansion functions. Do not connect your gaming console through this port.

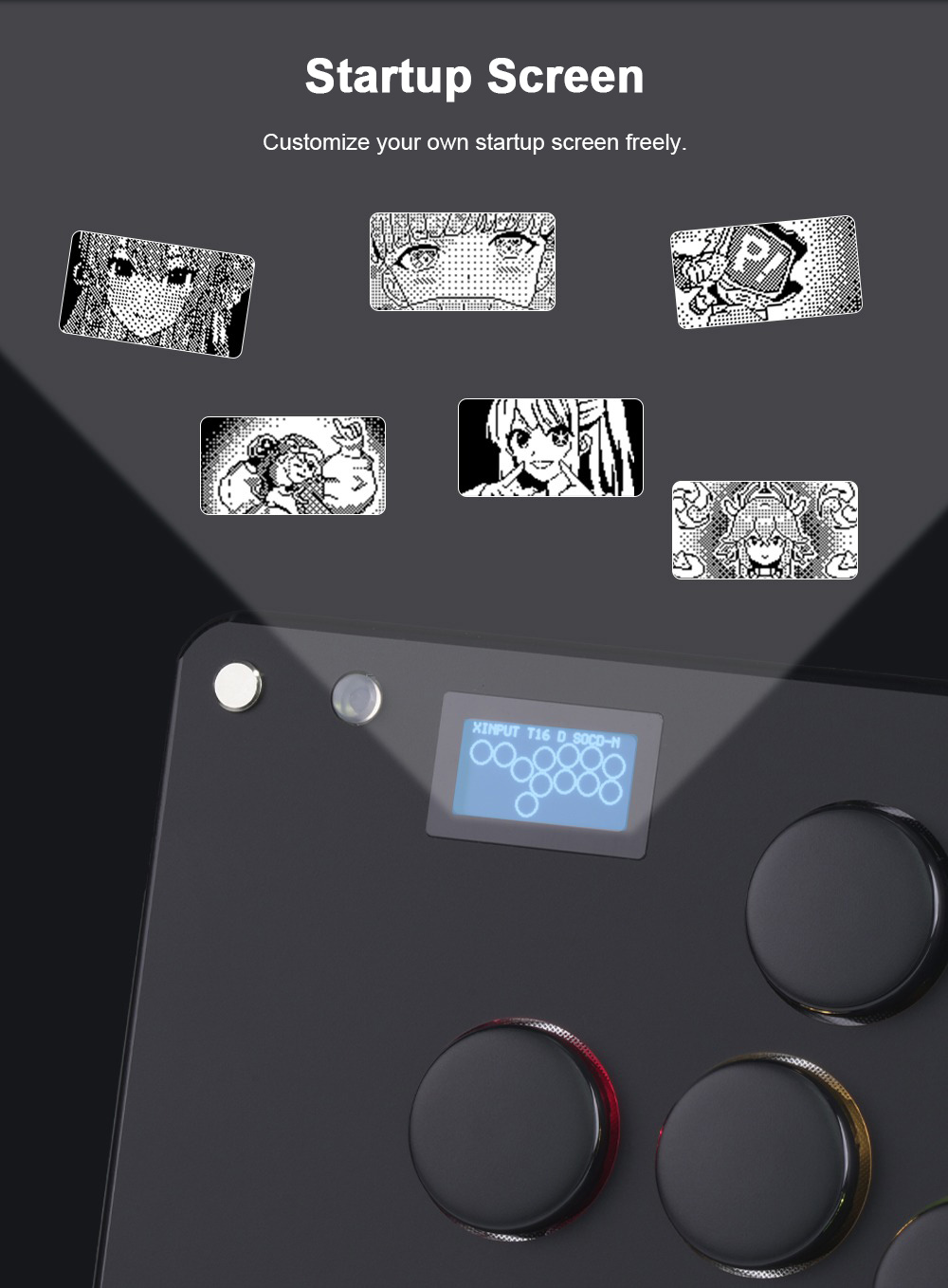

* Startup screen: Customize your own startup screen freely
* DIY support: Players can insert different artworks on the front. If you need data, please contact us to send the top mold diagram

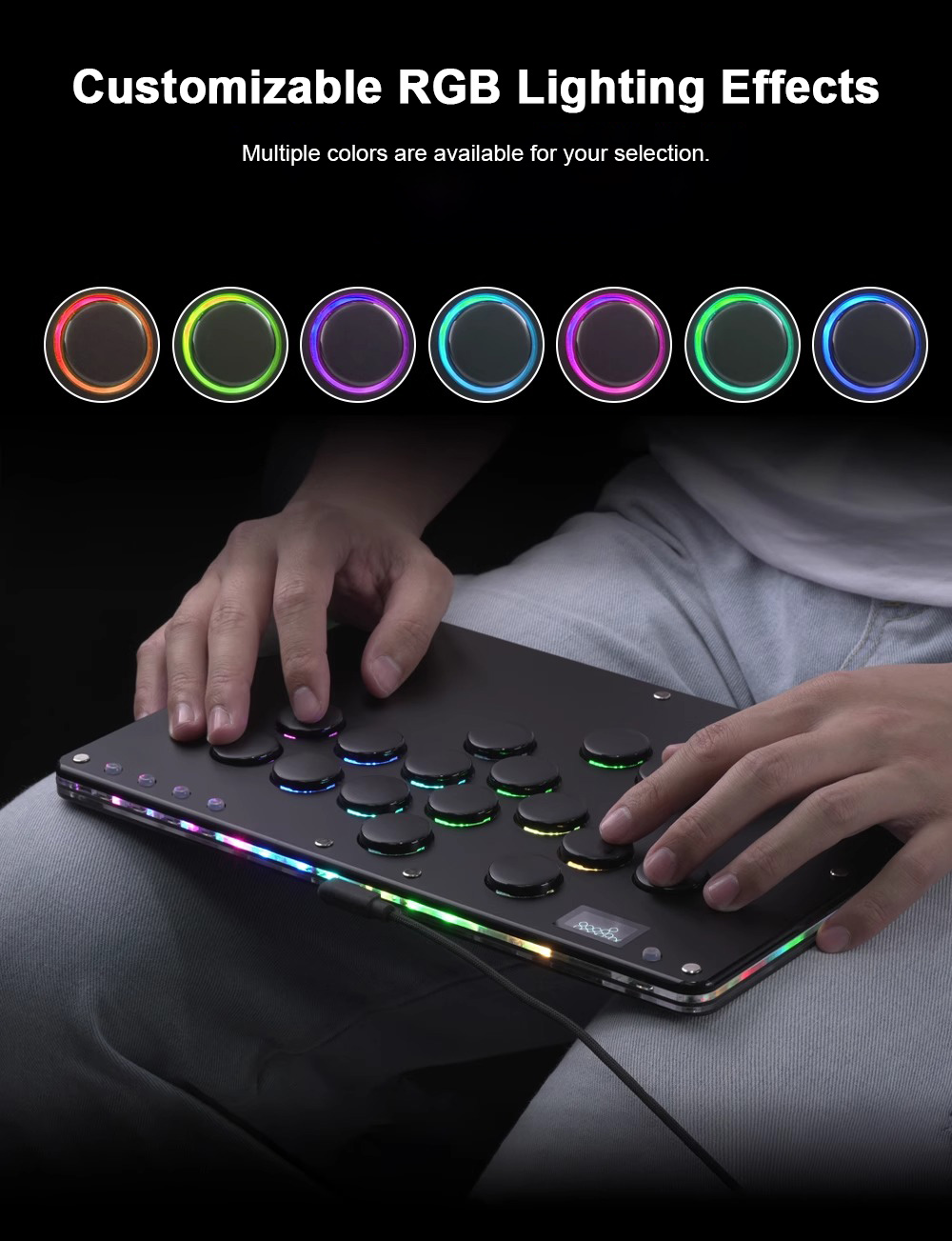

* Customizable RGB lighting effects: Multiple colors are available for your selection
* Carefully crafted portable Arcade fight stick for Hitbox
* Dual-core Cortex-M0+ (for ARM) running at 133 MHz
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossover switch for enhanced communication
* 264KB of integrated on-chip SRAM, divided into six independent groups
* Manufactured using a 40nm process node, ensuring low dynamic power consumption and minimal leakage
* Supports firmware updates

Specifications:
* Working voltage: 5V
* Connection method: USB Type-C
* Supported Platforms: for PC, Android, NS, PS5, PS4, Steam Deck and Arcade

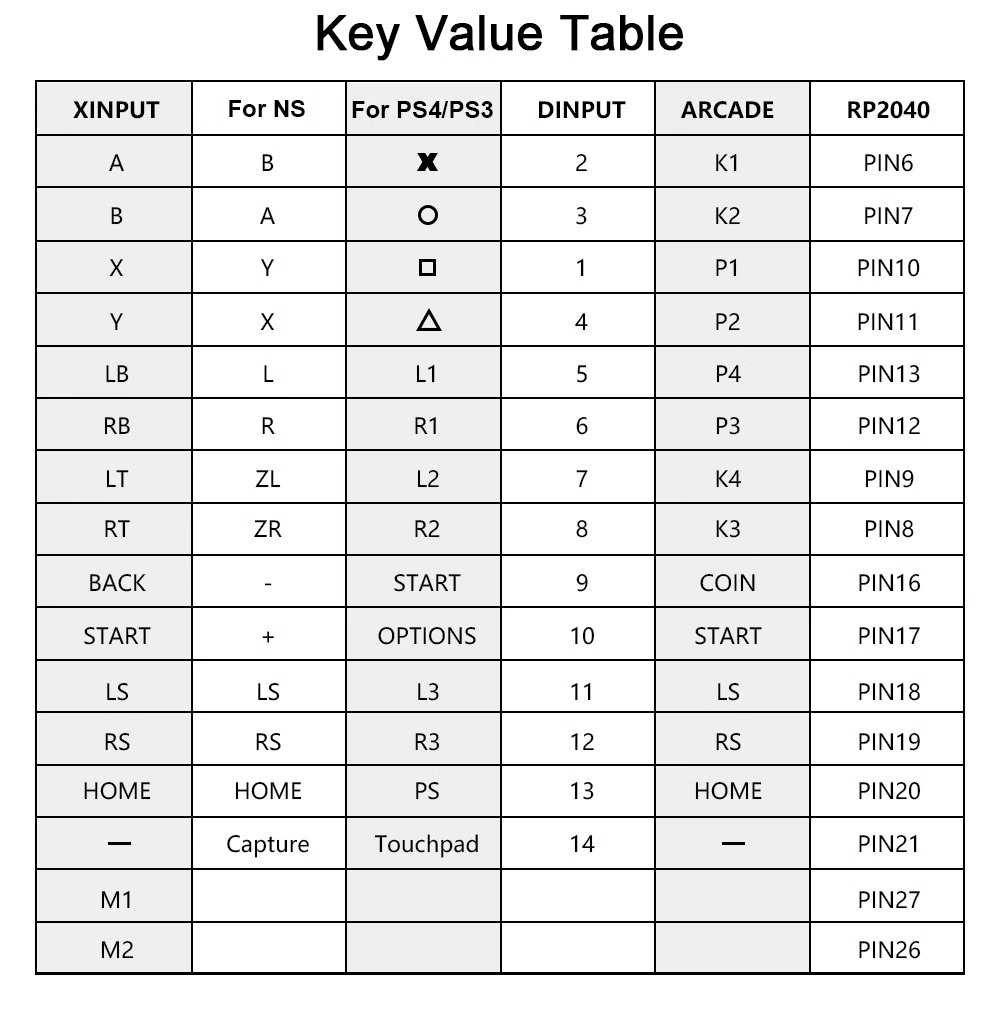

Compatibility:

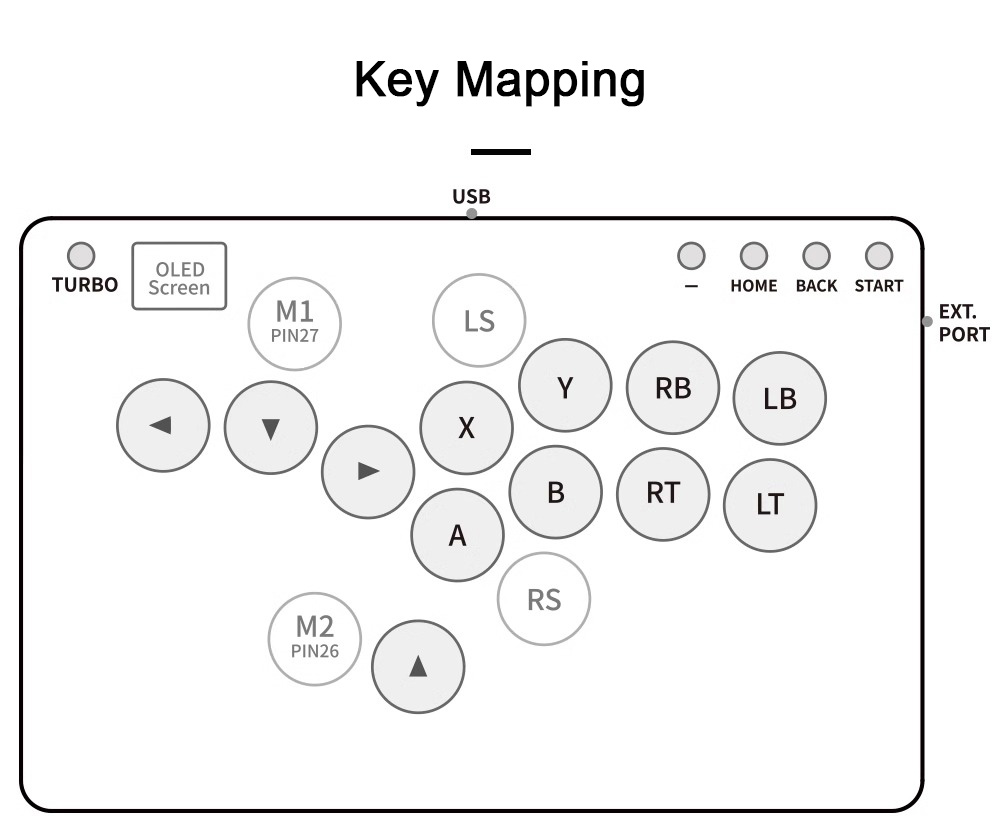

B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (For Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, press and hold one of the controller's buttons while plugging it in.

Tips:
* By default, this product operates in Xinput mode. The selected input mode is retained across power cycles.
* If certain games are incompatible with the default input modes, you can access the Web Configurator to adjust settings for optimal compatibility.

Web Configurator:
* This product features a built-in web-based configuration tool accessible by holding the START button while connecting your controller to a PC. Once connected, open a web browser and navigate to http://192.168.7.1 to begin the configuration process.

TURBO:
* Hold TURBO, then press the button you want to set for the turbo function. This button will continuously send signals while pressed. To cancel the turbo function for this key, simply repeat the previous step.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A / B / X / Y / LB / RB / LT / RT.

RGB LED Setting:
* Press BACK + START + X: Next Animation
* Press BACK + START + A: Previous Animation
* Press BACK + START + Y: Increase Brightness
* Press BACK + START + B: Decrease Brightness
* Press BACK + START + RB: Increase LED Parameter
* Press BACK + START + RT: Decrease LED Parameter
* Press BACK + START + LB: Increase Pressed Parameter
* Press BACK + START + LT: Decrease Pressed Parameter

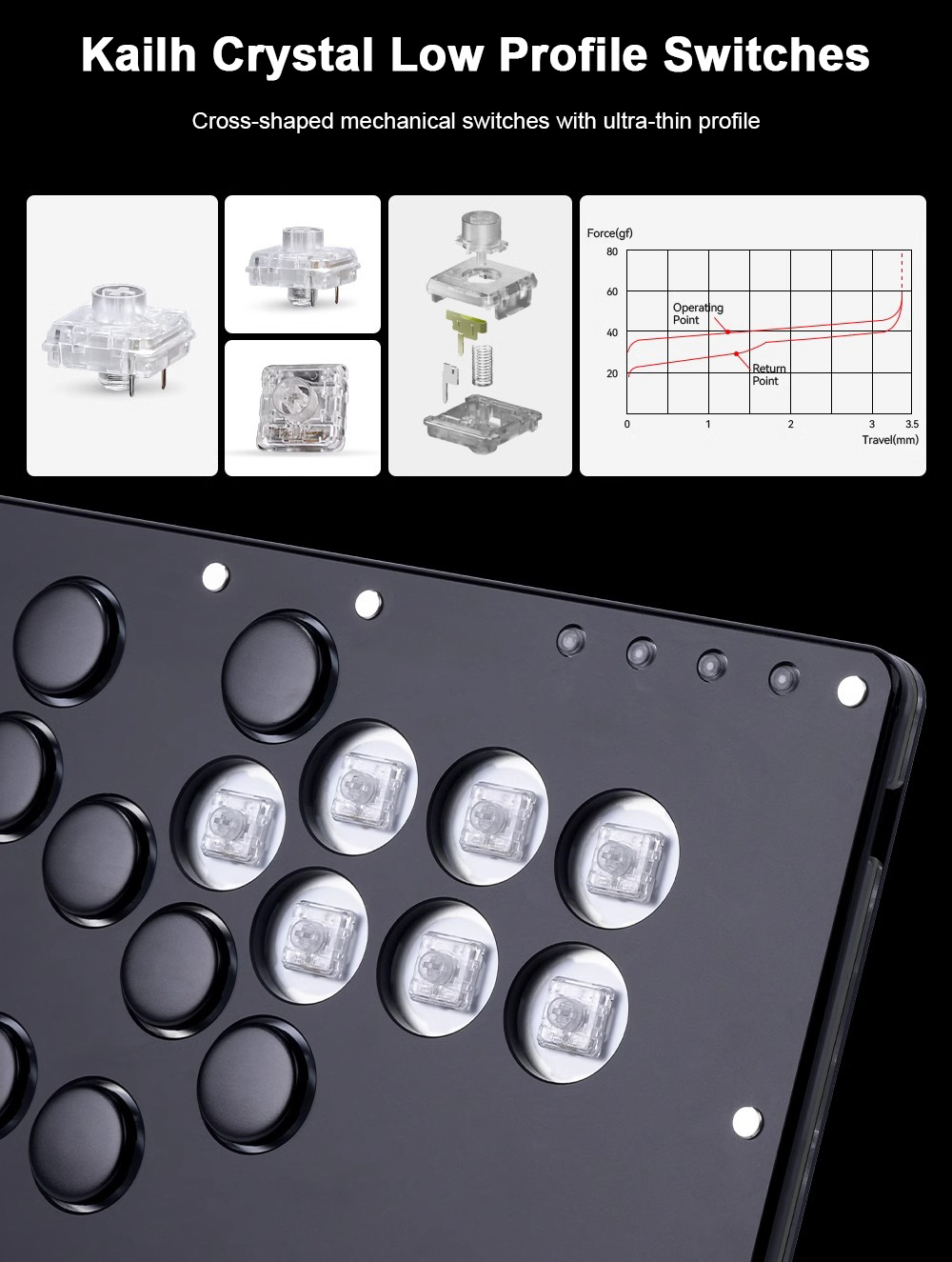

Kailh Crystal Low Profile Switches:
* Type: Crystal Switch / Low Profile
* Mechanical Life: 50 million times
* Trigger Travel: 1.2 ± 0.3 mm
* Total Travel: 3.2 ± 0.25 mm
* Operating Force: 43 ± 10 gf
* Size: 15 × 15 × 11.9 mm

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 1.3kg
