Haute42 G13 13-Button Arcade Stick Arcade Joystick Game Controller with Greywood V4 Switches

Haute42 G13 13-Button Arcade Stick Arcade Joystick Game Controller with Greywood V4 Switches

Attention:
Our store sells the Haute42 game controller, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

G Series:
* Backed by ten years of gaming peripheral expertise
* Carefully crafted portable arcade joystick for Hitbox-style gameplay
* Brings you back to the arcade era
* The heart of combat never stops
* This is a micro arcade stick, a revolutionary game controller designed for precision and versatility
* Powered by a cost-effective combat chip, featuring the Raspberry Pi RP2024 as the main control chip

Description:

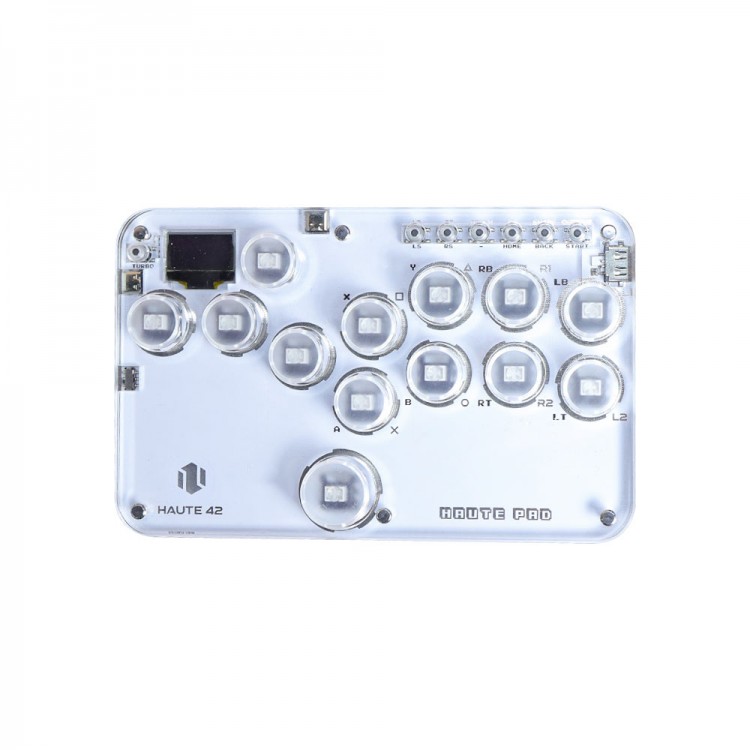

This mini arcade keyboard features a transparent acrylic body with an RGB lighting effect and 13 buttons, providing a comfortable feel for an immersive fighting game experience. Buyers can DIY their own custom skins, allowing for a personalized and stylish controller design.

Features:
* Dual-core Cortex-M0+ for ARM at 133MHZ
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossover switch
* Integrated 264KB on-chip SRAM, divided into six independent groups
* 40nm process node manufacturing, ensuring low dynamic power consumption and minimal leakage
* 1ms response time, with a frame retention rate above 95%
* Supports firmware updates
* Supports DIY: Players can insert different artworks for the front panel. If you need the data, please contact us to send the top mold diagram
* You can customize the splash screen

Greywood V4 Switches:
* POM stem
* 2-stage spring
* Initial force: 30gf (min.)
* Total travel: 3.6 ± 0.3 mm
* Conduction: 1.5 ± 0.3 mm
* Operating force: 40 ± 3 gf
* Bottom force: 50 ± 3 gf

Specifications:
* Working voltage: 5V
* Connection method: USB Type-C
* Supported Platforms: For PC, Android, NS, PS3, PS4, Steam and Arcade

For Extension Functions:
* Insert official or third-party dongles/controllers to expand HautePad's platform compatibility or add new functions.

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, hold the corresponding button (as shown) while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

For PS4 Mode:
* This product will disconnect 8 minutes after connecting to a console for PS4/PS5.
* To avoid the 8-minute timeout, you can upload the required verification files for PS4 mode.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

D-Pad Modes:
You can switch between the 3 D-Pad modes while using the controller by pressing one of the following default combinations:
* BACK + START + DOWN: D-Pad Mode
* BACK + START + LEFT: Emulate Left Analog Stick
* BACK + START + RIGHT: Emulate Right Analog Stick
The selected D-Pad mode is saved across power cycles.

Invert D-Pad Y-axis:
A toggle is available to invert the Y-axis input of the D-pad, providing additional input flexibility. The default hotkey to toggle this feature is:
* HOME + START + RIGHT: Y-axis Inversion
Note: This is a temporary hotkey mapping for the feature. Please check updated releases for potential changes.

SOCD Modes:
Simultaneous Opposite Cardinal Direction (SOCD) cleaning ensures the controller follows specific directional input rules when sending inputs to the computer/console. Users can switch between the 3 SOCD modes while using the controller by pressing one of the following default button combinations:
* HOME + START + UP: Up Priority Mode
   Up + Down: Up
   Left + Right: Neutral (Standard stick-less behavior).
* HOME + START + DOWN: Neutral Mode
   Up + Down: Neutral
   Left + Right: Neutral
* HOME + START + LEFT: Last Input Priority Mode (Example: Hold Up, then hold Down = Down. Release and re-press Up = Up. Applies to both axes.)

The selected SOCD mode is saved across power cycles.

Package Included:
* 1 x Set of Arcade Joystick

Packaging Details:
* Weight: 0.75kg

Note:
* The EXT. port is for extension purposes only. Do not connect your game console through this port.
