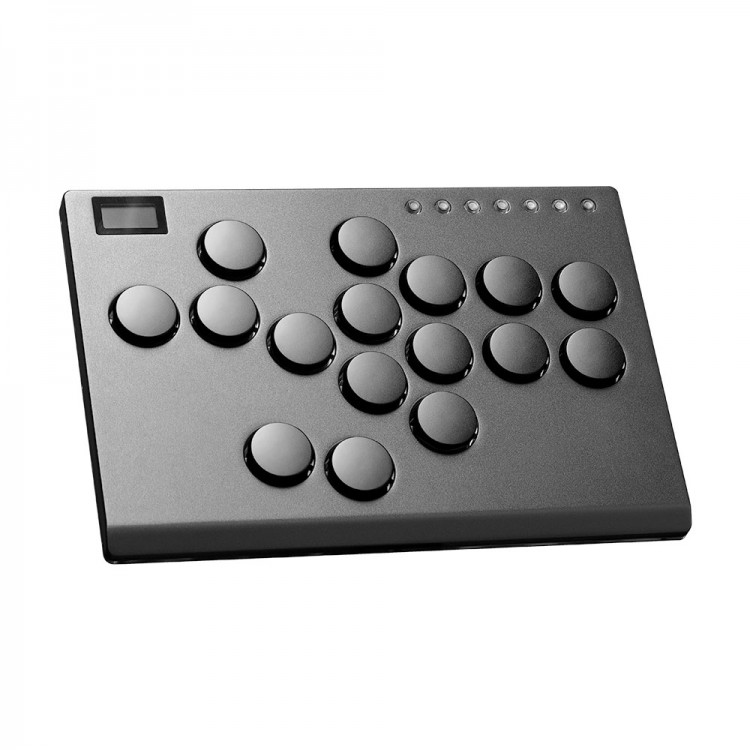

Haute42 M16 16-Button Aluminium Alloy All Button Arcade Controller (Silver-Gray Keycaps) for Hitbox

Haute42 M16 16-Button Aluminium Alloy All Button Arcade Controller (Silver-Gray Keycaps) for Hitbox

Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Features:
* HAUTE PAD M series arcade controller
* Colorful RGB lighting: The RGB lights provides an immersive gaming atmosphere
* Its full metal panel offers a comfortable touch. A cool interface worth owning
* Supports multiple platforms: For PC, PS3, PS4, NS, Android, Steam and Arcade
* CNC aluminum alloy makes it comfortable to use the arcade controller with ABS round keycaps
* Layout of 4 directional buttons: Buttons with an excellent texture for superior control and optimal execution
* Ultra-thin and compact design: The design allows the controller to fit into a bag
* With anti-slip foot pads, a type-c port and an EXT port (Attention: The EXT port is for extended functionality. Please do not connect your gaming console through this port)
* Kailh red switches: With an ultra-thin design, cross-mounted mechanical switches feature shorter actuation height, lightning-fast speed and precision
* Four silicone pads: They effectively absorb shock and prevent slipping, allowing you to focus without external distractions

Product Specifications:
* Working voltage: 5V
* Connection method: USB Type-C
* Product size: 240mm x 166mm x 12.6mm (LxWxH)
* Button size: 25.8mm (Diameter)
* Supported platforms: For PC, PS3, PS4, NS, Android and Steam

Characteristics of Raspberry Pi RP2040 Chip:
* Dual-core Cortex-M0+ for ARM running at 133MHz
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossbar switch
* Integrated 264kB of on-chip SRAM, organized into six independent banks
* Manufactured using a 40nm process node, ensuring low dynamic power consumption and minimal leakage
* 1ms latency with a frame success rate above 95%
* Supports firmware updates

For PS4/PS5 Mode:
* Regarding the 8-minute disconnection issue on the console for PS4, there are two solutions:
  1. Insert a dongle into the EXT port.
  2. Connect an officially authorized wired controller (for PS4) to the EXT port.
* We do not recommend a specific product, as there are many options available. You can discuss with other experienced players to find the best choice for your needs.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 1.15kg
