Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Description:

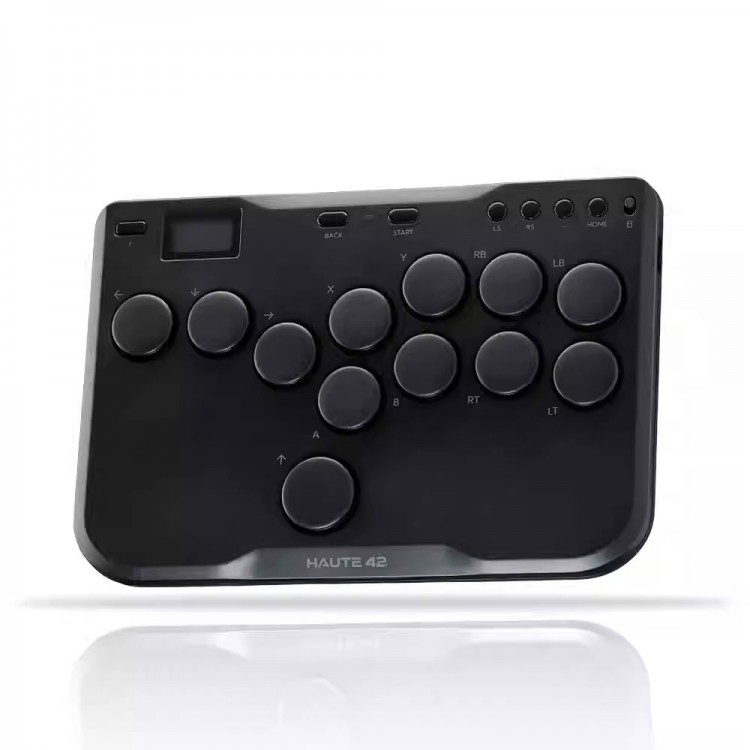

P12 is a mini arcade controller for Hitbox. It eschews heavy acrylic and is crafted from ABS material, making it exceptionally lightweight, easy to carry, and store.

Features:
* Simplified Button Layout: We have replaced the joystick with four directional buttons.
* Contemporary Arcade 12-Button Layout: Offers a more natural and effortless operation.
* Lock Switch: This switch disables non-essential buttons, preventing accidental inputs and helping you secure victory in the heat of competition.
* Kailh Crystal Switches: With a total travel of 3.2mm, an actuation travel of 1.2mm, and an actuation force of 43gf. The transparent switch housing enables a more dazzling lighting experience.
* External Silicone Pad: It effectively absorbs shock, prevents slipping, and ensures that your gaming is undisturbed by external factors.
* RGB Lighting: Creates an immersive gaming atmosphere for you.

Specifications:
* Working voltage: 5V
* Connection method: USB Type-C
* Product size: 207mm x 140mm x 13mm
* Supported platforms: For PC, PS3, PS4, NS, Android, Steam and Arcade

Raspberry Pi RP2040 Chip:
* Dual-core Cortex-M0+ for ARM running at 133MHz
* Supported by a dedicated QSPI bus, enabling up to 16MB of off-chip flash memory
* Fully connected AHB crossbar switch
* Integrated 264kB of on-chip SRAM, organized into six independent banks
* Manufactured using a 40nm process node, ensuring low dynamic power consumption and minimal leakage
* 1ms latency with a frame success rate above 95%
* Supports firmware updates

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, hold the corresponding button while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

For PS4 Mode:
* Regarding the 8-minute disconnection issue on the console for PS4, there are two solutions:
  1. Insert a dongle into the EXT. port.
  2. Connect an officially authorized wired controller (for PS4) to the EXT. port.
* We do not recommend a specific product, as there are many options available. You can discuss with other experienced players to find the best choice for your needs.

SOCD Modes:
Simultaneous Opposite Cardinal Direction (SOCD) cleaning ensures the controller follows specific directional input rules when sending inputs to the computer/console. Users can switch between the 3 SOCD modes while using the controller by pressing one of the following default button combinations:
* HOME + START + UP: Up Priority Mode
   Up + Down: Up
   Left + Right: Neutral (Standard stick-less behavior)
* HOME + START + DOWN: Neutral Mode
   Up + Down: Neutral
   Left + Right: Neutral
* HOME + START + LEFT: Last Input Priority Mode (Example: Hold Up, then hold Down = Down. Release and re-press Up = Up. Applies to both axes)

The selected SOCD mode is saved across power cycles.

Invert D-Pad Y-axis:
A toggle is available to invert the Y-axis input of the D-pad, providing additional input flexibility. The default hotkey to toggle this feature is:
* HOME + START + RIGHT: Y-axis Inversion
Note: This is a temporary hotkey mapping for the feature. Please check updated releases for potential changes.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 0.6kg
