Haute42 S13 13-Button Arcade Stick Arcade Controller w/ Kailh Red Low Profile Switches and SOCD Mode

Haute42 S13 13-Button Arcade Stick Arcade Controller w/ Kailh Red Low Profile Switches and SOCD Mode

Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Description:

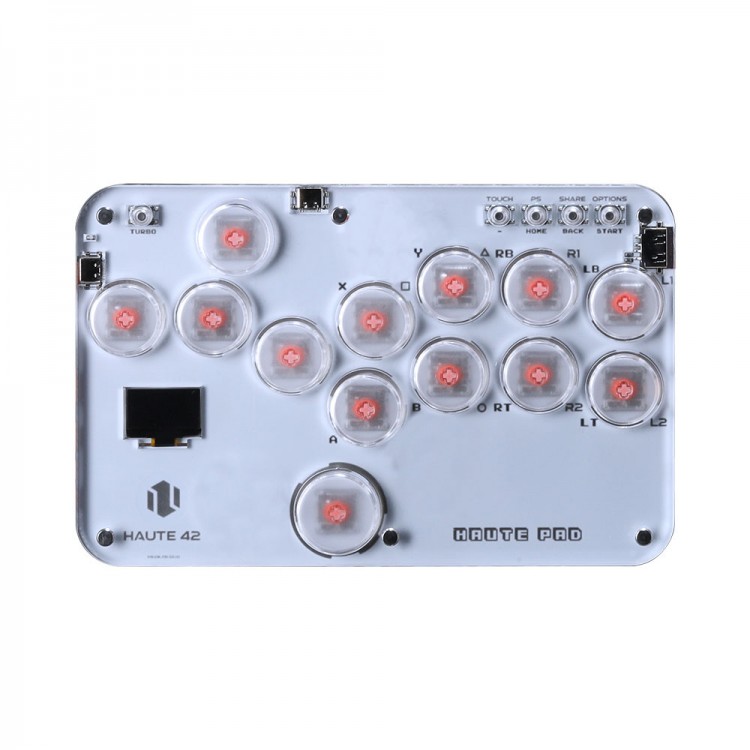

This mini arcade keyboard features a transparent acrylic panel with RGB lighting effects and 13 buttons, delivering a comfortable gaming experience for fighting game enthusiasts. Buyers can customize their own controller skins, making the controller not only functional but also uniquely personalized and visually striking.

Advantages:
* Ten years of gaming peripheral expertise
* A meticulously crafted portable arcade joystick for Hitbox
* Relive the arcade era
* The heart of combat never stops

Product Features:
* With Kailh red low profile switches
* The arcade controller with round buttons suitable for fighting games
* <1ms delay
* Turbo function
* OLED screen
* SOCD mode
* Hot-swappable
* Customizable RGB
* Web configuration
* Layout of 4 directional buttons: For superior control and optimal execution
* Acrylic panel and ABS keycaps
* 40 million presses: Buttons feel as good as new
* Two freely switchable type-c ports: Ergonomic design for aesthetic appeal
* Supports DIY: Players can insert different artworks on the front and customize the boot screen

Product Specifications:
* Working voltage: 5V
* Connection method: USB Type-C
* Product size: 196mm x 125mm x 12.5mm
* Supported Platforms: For PC, PS3, PS4, NS, Android and Steam

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, hold the corresponding button (as shown) while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

For PS4 Mode:
* This product will disconnect 8 minutes after connecting to a console for PS4/PS5.
* To avoid the 8-minute timeout, you can upload the required verification files for PS4 mode.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

Package Included:
* 1 x Arcade Fight Stick

Packaging Details:
* Weight: 0.63kg
