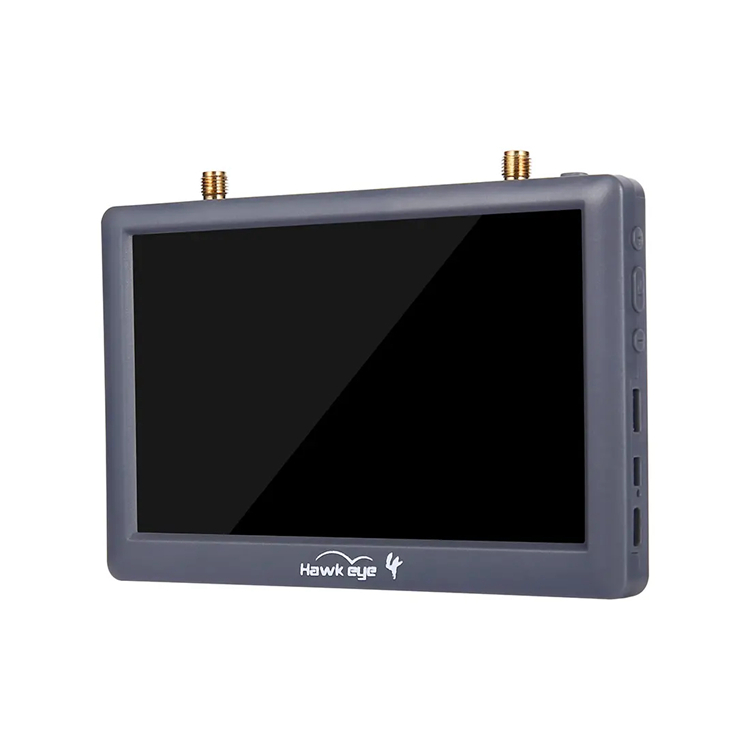

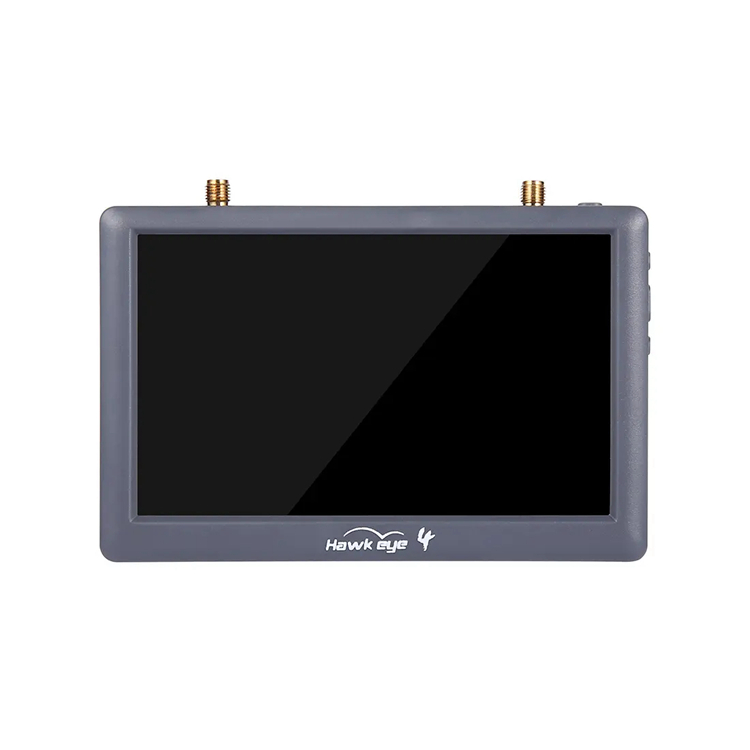

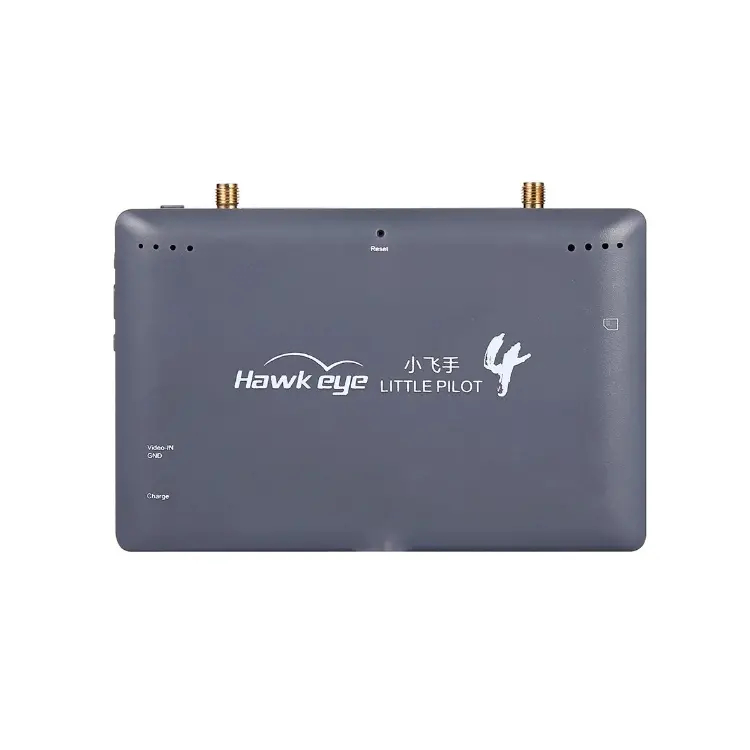

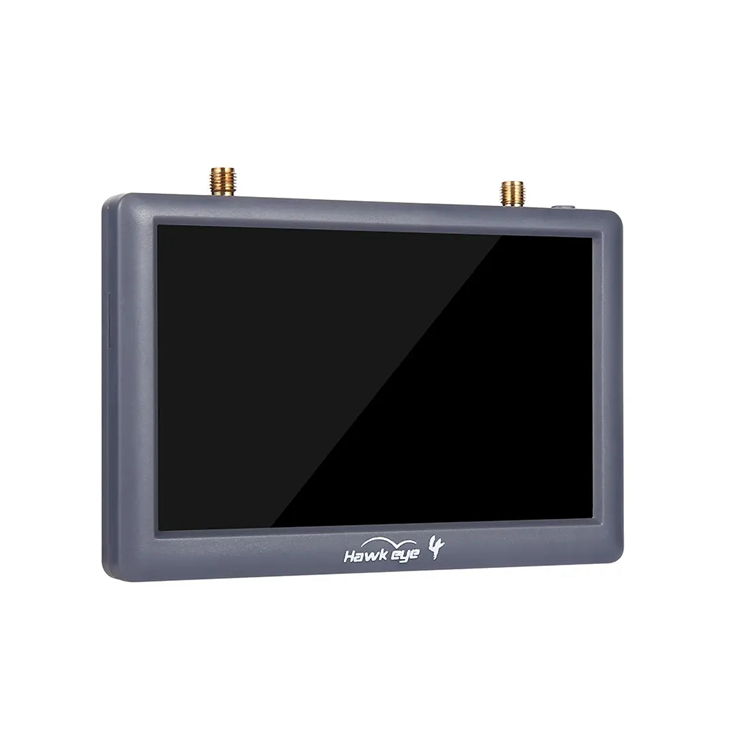

Haweye Little Pilot 4 FPV Monitor 5" FPV Screen 5.8G Dual Receiver DVR Lower Latency (Standard Version)

Haweye Little Pilot 4 FPV Monitor 5" FPV Screen 5.8G Dual Receiver DVR Lower Latency (Standard Version)

Main Specs:
* Newest Hawkeye Little Pilot 4 Built in DVR
* Dual Receivers: 5.8GHZ 48CH
* Battery inside: 2.5-3 Hours
* DVR: 720*288/720*240

Features:
Specially designed for aerial photography system, Little pilot all-in-one monitor has the following features:
* Video buffer. Can record and playback on the monitor.
* Built in battery for 2.5 hours.
* Dual receivers.
* High brightness: 700 Lux.
* No delay/blue /black screen.
* Automatic/manual channel scan: no need for DIP switch.

Reminder:
* For better display/record quality, please set the camera to NTSC format.

Specifications:
* Display resolution: 800x480
* Backlight: LED
* Brightness: 700 Lux
* Aspect ratio: 16:9 / 4:3
* Response time: < 10ms
* Color system: PAL/NTSC
* Battery life: About 2.5 hours
* Signal: Video (PAL/NTSC)
* Monitor size: 128.5mmx83.5mmx16.8mm
* Weight: 220g
* 5.8G Sensitivity: -94dB

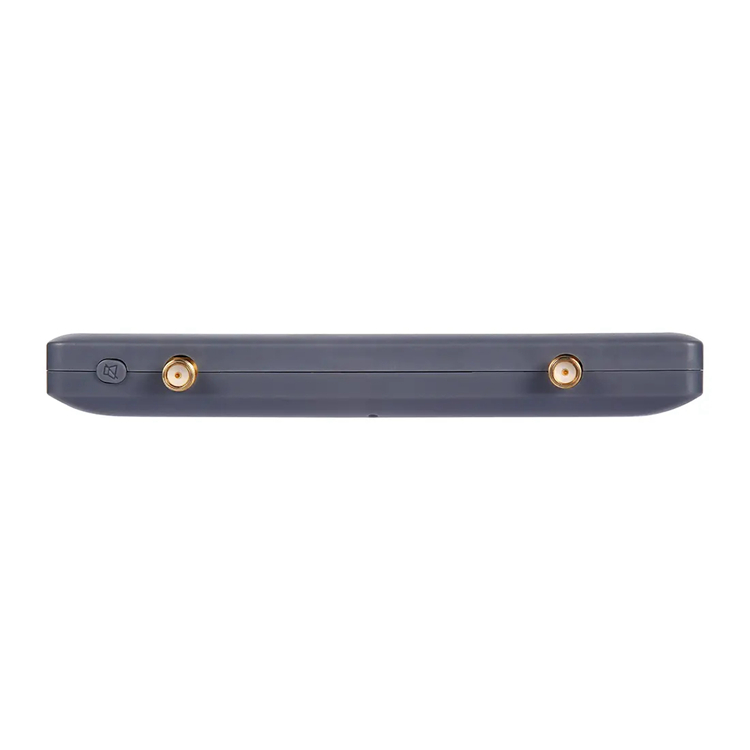

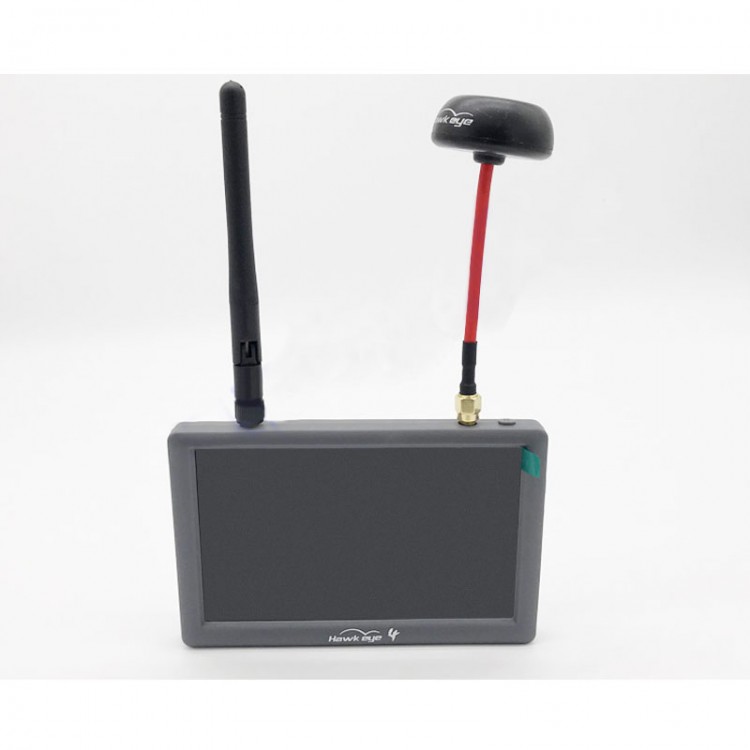

* Matching antenna: RP-SMA
* DVR Resolutions: PAL: 720*288; NTSC: 720*240

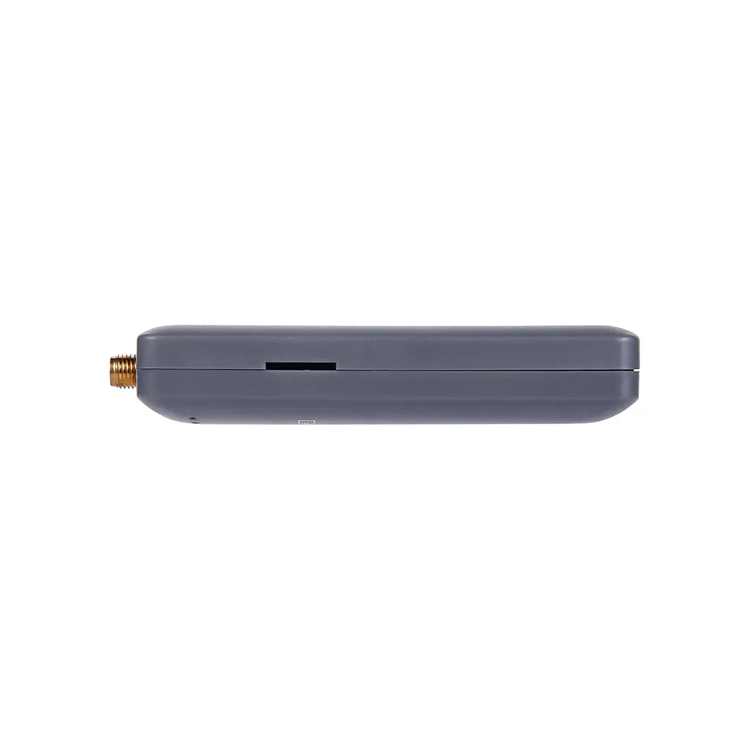

* SD Card: Support 8-32G C10 (not included)

Frequency Group Selection:
You can select the desired frequency from 6 groups: A, B, C, D, E and F:
A B C D E F
1 5.645G 5.740G 5.725G 5.733G 5.658G 5.362G
2 5.665G 5.760G 5.745G 5.752G 5.695G 5.399G
3 5.865G 5.780G 5.765G 5.771G 5.732G 5.436G
4 5.705G 5.800G 5.785G 5.790G 5.769G 5.473G
5 5.885G 5.820G 5.805G 5.809G 5.806G 5.510G
6 5.905G 5.840G 5.825G 5.828G 5.843G 5.547G
7 5.925G 5.860G 5.845G 5.847G 5.880G 5.584G
8 5.945G 5.880G 5.865G 5.866G 5.917G 5.621G
