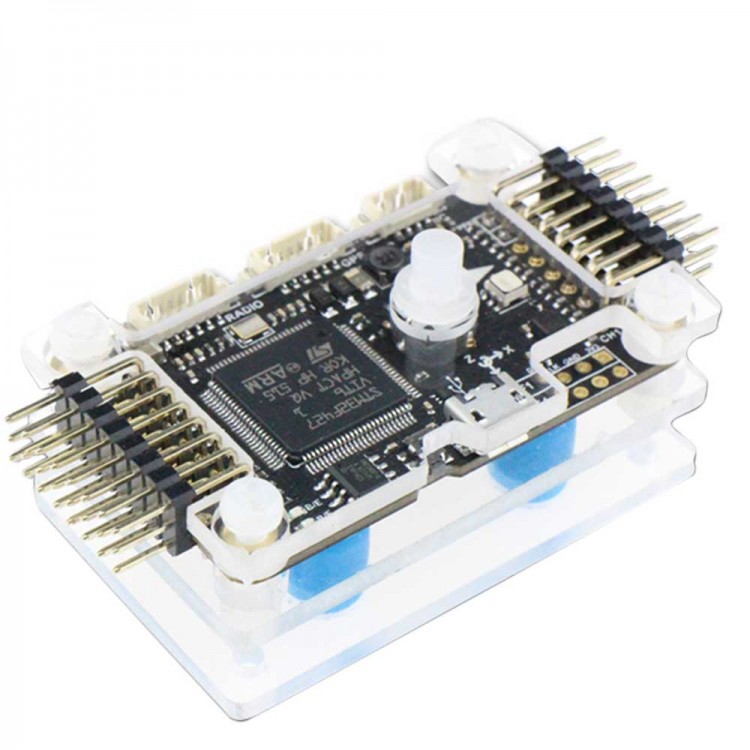

Hawk A Opensource Flight Controller w/ 433MHz Telemetry System+M8N GPS+PWM to PPM Signal Converter+JLink Downloader Combo for FPV
Features:
- Support PIXHAWK, APM flight controller firmware
- Support set-point, set-height, GPS hover, return mode
- With case and damping borad, great anti-vibration performance
- 168MHz/252 MIPS Cortex-M4F core
- Various extend port
- LED indicators indicate the flight statust
- Integrate Micro-USB port
- Integrate Micro SD card port
- External safety switch
Specification:
Communication:
- GPS port, UART serial
- Telemetry port, UART serial
- I2C port
- Micro SD port
- SWD downlowd port
- Support Futaba S.Bus signal input
- Support PPM signal input
- Support RSSI (PWM) signal input
MCU:
- 168MHz
- 256KB RAM
- 2MB Flash
- 32 bit, STM32F103 failsafe controller
- 32BIT STM32F427VIT6, Cortex M4 core
Sensor:
- ST L3GD20H 16bit gyroscope chip
- InvenSense MPU6000 gyroscope accelerator chip
- ST LSM303D 14bit acclerator/magnetometer
- MEASMS5611 barometer chip
Power:
- Reverse polarity protection
- Fuse recovery
- IO port input protection
- USB input static protection
Package included:
- 1* HAWK-A flight controller
- 1* M8N GPS
- 1* set 433MHz telemetry system
- 1* PWM to PPM signal converter
- 1* JLink downloader
