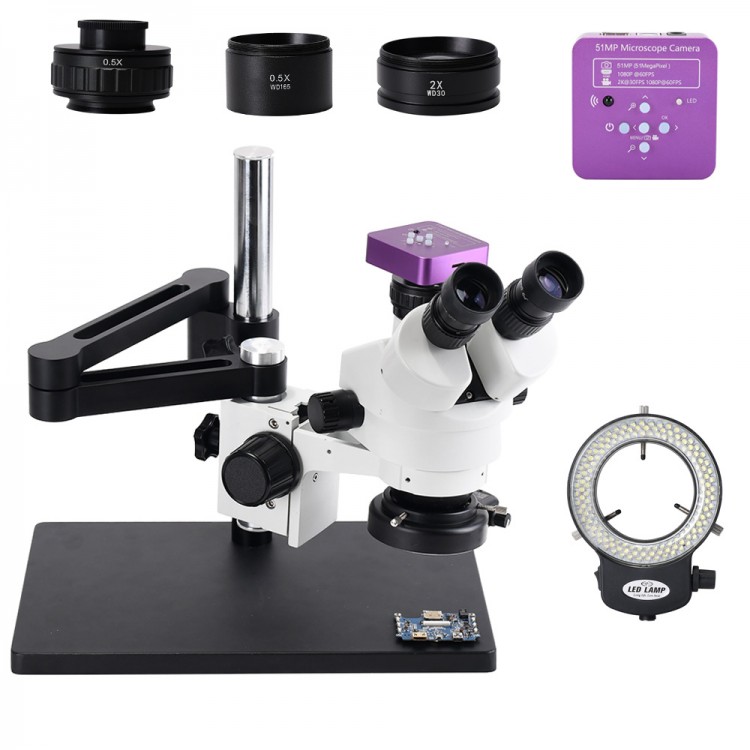

HAYEAR 2K Trinocular Microscope HDMI Stereo Microscope 51MP Camera Adjustable Arm for Phone Repair

HAYEAR 2K Trinocular Microscope HDMI Stereo Microscope 51MP Camera Adjustable Arm for Phone Repair

Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials, strong and durable, has a long service life
4. HD camera with 51MP sensor (for CMOS) 1/2.3 inch, with HDMI USB port
5. Due to strict quality control and quality assurance, and high safety factor, it can be used with peace of mind

Camera Specifications:
- Item Type: Microscope Camera
- Module: 5130
- Sensor: 51MP for CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 51MP
- Video Resolution: 2K at 30FPS 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

Trinocular Stereo Microscope Specifications:
- Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
- Eyepiece: 30mm/1.2" super widefield high-eyepoint WF10X/20
- Objective: 0.7-4.5X
- Zoom Range: 6.5:1
- Trinocular Port: 23mm/0.9" photo port
- Interpupillary Distance: 54-76mm/2.1-3"
- Field of View: 33mm/1.3"
- Working Distance: 7X-45X (100mm/3.9"); Use 2.0x objective lens 7X-90X (40mm/1.6"); Use 0.5x objective lens 3.5X-22.5X (180mm/7.1")
- Head Mounting Size: 76mm/3" diameter
- Accessory Mounting Size: 48mm/1.9" female thread diameter

Features:
- 7X to 45X Continuous Zoom Magnification Power
- 45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
- Trinocular port for adding photo or video capability
- 30mm/1.2" Super Widefield WF10X Eyepieces with 20mm/0.8" Field of View
- High Resolution with Great Flatness and Contrast
- Sharp Stereo Erect Images over a Wide Field View
- Crystal Clear Original True Color Images
- Large Working Distance
- Accurate Alignment Ensuring a Fatigue-Free Viewing
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Manufactured under ISO 9001 Quality Control Standard
- Stand Size: 38 x 20 x 30cm/15 x 7.9 x 11.8" (LxWxH)

144 bright LEDs Specifications:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power Input: 100-240V, 50-60HZ, automatic switching
- The Inner Diameter of The ring Light: Approx. 27mm/1.1"
- Overall Outer Diameter: Approx. 45mm/1.8"
- Working Distance: Approx. 27-120mm/1.1-4.7"

Package Included:
- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X20MM Eyepieces
- 1 x 0.5X CTV C-mount Adapter
- 1 x 144-LED Ring Light
- 1 x Table Stand
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Microscope Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x IR Remote Control
- 1 x Power Supply Adapter
- 1 x 2.0X Auxilliary Objective Lens
- 1 x 0.5X Auxilliary Objective Lens

Note:
- Battery for the remote control is not included.
