HB308SN Three Phase Hybrid Step Motor Driver AC220V High Performance Intelligent Power Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$199.35
  • Price in reward points: 1994 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $195.36 $191.38 $185.40 $177.42 Contact US
Quantity:

HB308SN Three Phase Hybrid Step Motor Driver AC220V High Performance Intelligent Power Module

Description:

- The drive adopts the original imported module to realize high frequency chopping, constant current drive, and has strong anti-interference; the control signal and the internal signal realize photoelectric isolation, and have a series of self-protection functions such as overcurrent, overvoltage and overheating, and the operation is stable. Good reliability, driving 110BYG and 130BYG series three-phase hybrid stepping motors below 8A.

Features:
- AC220V power supply
- The current per phase is based on the motor configuration.
- AC servo motor current control mode, accurate current output, full-band sine wave control output, so that the running performance indicators of the stepping motor are close to the AC servo motor.
- Drive performance is very dependent on the motor, and different parameters of the motor can achieve excellent performance.

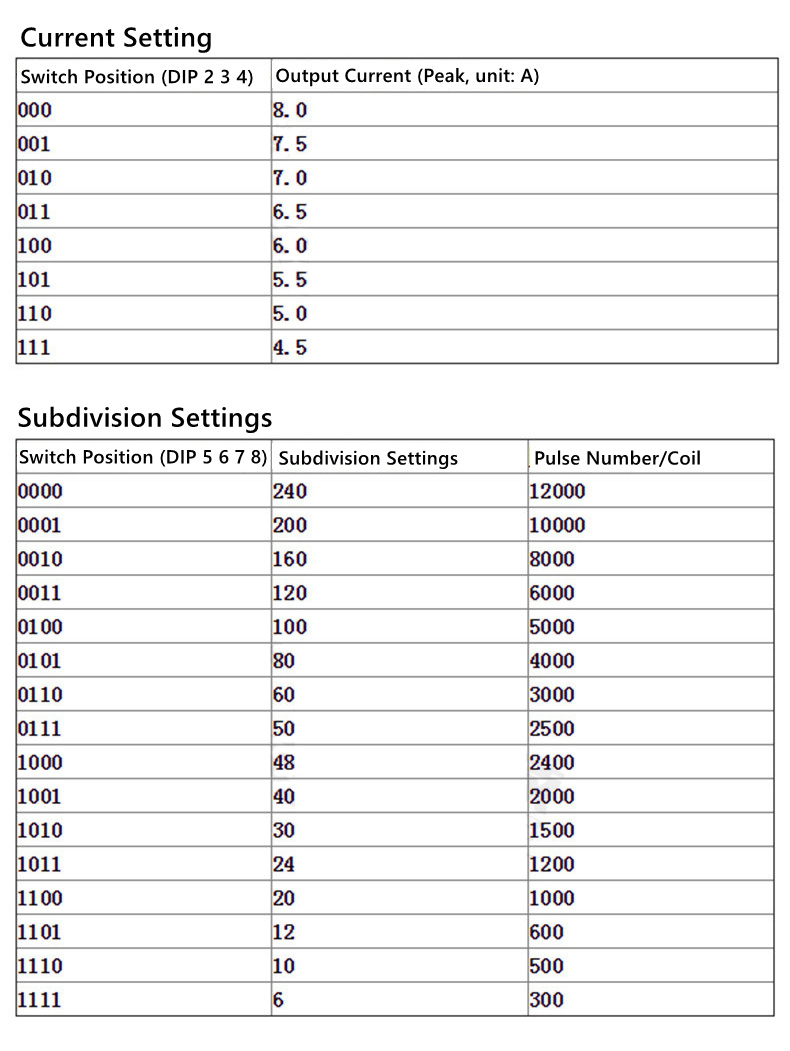

- Multiple subdivision modes, special subdivision requirements can be customized.
- With offline (FREE) control signal (W.F input).
- Adapter motor: 110BYG, 130BYG series stepper motor.

Package Included:
- 1 x Step Motor Driver
