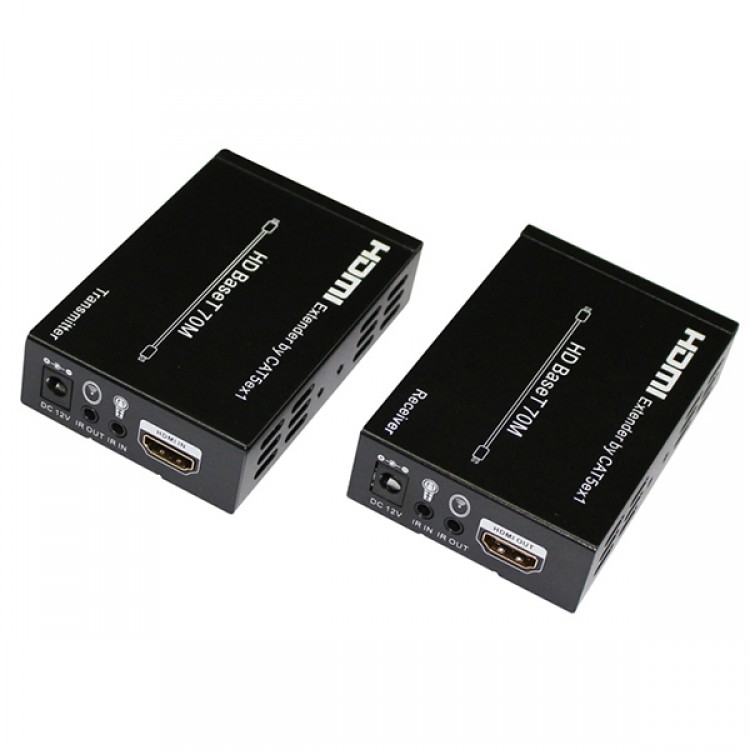

HBT-E70 HDMI Extender over Cat5e/Cat6 for Extending HDMI Signal Over Long Distances to Compatible Display

HBT-E70 HDMI Extender over Cat5e/Cat6 for Extending HDMI Signal Over Long Distances to Compatible Display

Introduction
- The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Internet cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 70 meters outside, also you can control the Sink in the Source side which is 70 meters outside using the HDMI Extender.

Features
- One pair as a full functional module, no need for setting.
- POE (Power Over Ethernet) function support, either TX or RX powered 12V@2.5A,another device will no need power form the DC jack. POE Power Consumption less than 10W.
- Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- UTP cable termination follows the standard of IEEE-568B.
- Transmission distance:
   70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
   40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit
   4K x 2K@30Hz@24bit.
- HDMI V1.4 supported.
- HDCP compliant.
- Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Transfer Bidirectional Infrared control signal together with the HDMI signal.

Package
- HDMI Extender Transmitter -------------------------------------------------------- 1PC
- HDMI Extender Receiver ------------------------------------------------------------ 1PC
- IR Transmitter -------------------------------------------------------------------------- 2PCS
- IR Receiver ----------------------------------------------------------------------------- 2PCS
- 12V2.5A DC Power Supply adapter ------------------------------------------------ 1PCS
- Operation Manual --------------------------------------------------------------------- 1PC

Specifications
- Frequency Bandwidth                 2.97Gbps
- HDMI Transmitter Input/Output Ports    1x HDMI Female port/1 x CAT6
                                  1x IR Transmitter/1x IR Receiver
- HDMI Receiver Input/Output Ports      1 x HDMI Female port/1 x CAT6
                                  1x IR Transmitter/1x IR Receiver
- Power Supply                       DC 12V 2.5A
- ESD Protection Human Body Model:    ± 8kV (air-gap discharge)
- ± 4kV (contact discharge)
- Dimensions (mm)                   65(W) X 100 (D) X 25 (H)
- Weight                            200g x 2
- Operating Temperature                  0°C ~ 40°C / 32°F ~ 104°F
- Operating Temperature                  0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature                 -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity                  20 ~ 90% RH (Non-condensing)
- Power Consumption (Max)           20W
- Operation controls and Functions
- Transmitter

- DC IN: Plug the 12V DC power supply into the unit.
- IR OUT: Chanel 1 IR Transmitter.
- IR IN: Chanel 2 IR Receiver.
- HDMI IN: HDMI Input port.
- HDMI Signal OUT: Standard HDBaseT signal output port
- LINK LED: This red LED illuminate when the Transmitter and Receiver is connected with
-  LAN cable.
- Receiver

- DC IN: Plug the 12V DC power supply into the unit.
- IR IN: Chanel 1 IR Receiver.
- IR OUT: Chanel 2 IR Transmitter.
- HDMI OUT: HDMI Output port.
- HDMI Signal IN: Standard HDBaseT signal input port
- LINK LED: This red LED illuminate when the Transmitter and Receiver is connected with
- LAN cable.
