Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $56.99 | $55.82 | $54.08 | $51.75 | Contact US |

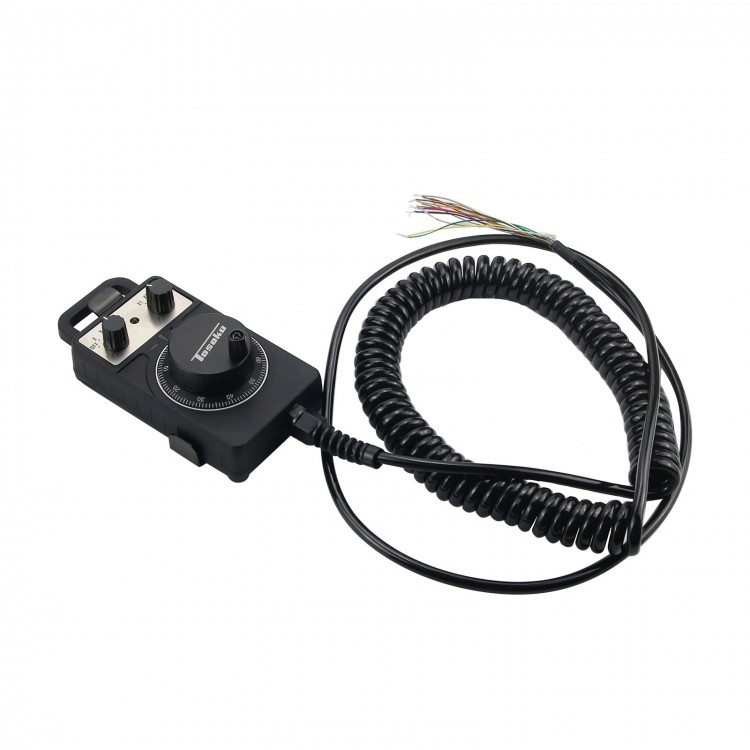

HC121 CNC Handwheel MPG Manual Pulse Generator Non-Original Type Perfect For MITSUBISHI System
Features:
- The most compact model of all our MPG series, developed for usage in numerous industrial areas.
- Compact, thin-line and lightweight (26mm)
- Axis/Multiplication selection can be set according to customers' requirement
- Sealed structured box
- RoHS compliant (box/cord)
- Exclusive easy-to-attach holder as a standard accessory
- Rubber magnet for option
Body:
- Dimension :124×73×26(mm)*
- LED Visible Indicator: DC24V Green
- Noise Immunity EN50082-2 compliant
Curl Cord:
- 19/25-conductor shielded cable
- 19-conductor: select from 2m/6.6ft, 3m/9.8ft, 4m/13.1ft, 5m/16.4ft
- 25-conductor: select from 3m/9.8ft, 5m/16.4ft
- (We will select either 19 or 25-conductor in accordance with required functions)
Specifications:
- Model: HC121
- For MITSUBISHI and other system
- Voltage: DC12V
- Output resolution: 25PPm
- A, B Phase output
Refer to User Manual Here:
Link for http://www.tosoku-inc.co.jp/en/product/pdf/h-pulse/hc1.pdf
Package Included:
- 1 x Set of CNC MPG
Note:
- It is not an original one. Please make sure that you don't mind before purchasing. Thank you!
