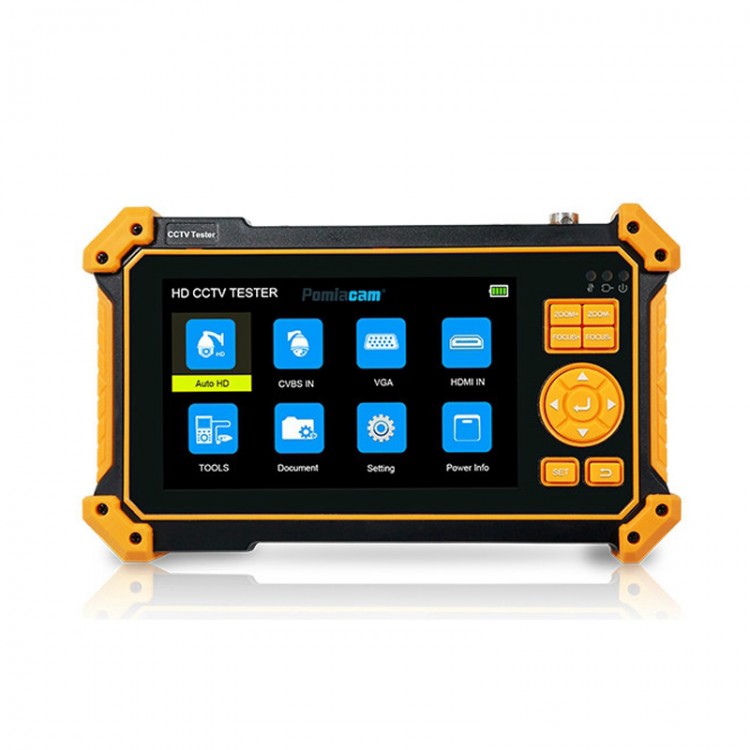

HD-3100 CCTV Tester 8MP CVI TVI AHD Analog 4 IN 1 VGA & 4K HDMI Input HD Coaxial Tester

HD-3100 CCTV Tester 8MP CVI TVI AHD Analog 4 IN 1 VGA & 4K HDMI Input HD Coaxial Tester

Features:
● 5 inch TFT-LCD screen, 800*480 resolution
● 8MP CVI/ TVI/ AHD camera test
● VGA input, support 1920 x 1200 60FPS
● HDMI input, support 4K 30FPS
● DC12V 1A power output
● DC 5V 1A power output, support reading USB disk
● Auto HD, auto recognize HD coax camera type and resolution
● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

Camera Test:
● 5 inch TFT-LCD screen, 800*480 resolution
● Analog camera test, PTZ controller
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu
● VGA input, up to 1920X1200 60FPS, support snapshot, video record & playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback
● Rapid ONVIF, Auto log in and display image, create testing report
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk

Cable Test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * (optional)

Other Functions:
● Media player, video files and MKV/MP4 media files play
● High brightness LED light
● Audio in, test whether sound normal.
● Power manager function, view 12V supply voltage and power in real time, can detect whether the voltage and power of DC 12V power output is normal.
● 4 hours charging

Specifications:
LCD:
- Display: New 5 inch TFT-LCD screen, 800*480 resolution

Video Mode:
- CVBS:
· 1 channel BNC input, NTSC/PAL (Auto adapt)
· PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. For PELCO-D/P, Samsung, Panasonic, etc.
- HD Coaxial Test:
· 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
· 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
· 8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu
· Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu
- HDMI Input:
· 1 channel HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/
· 1920x1080P /1920x1080i /720x480P /720x576P/1280x720P/1024x768P/1280x1024P /1280x900P /1440x900P, etc
- VGA Input:
· 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/
· 1920x1080P 60FPS /1792x1344P 60FPS /1680x1050P   60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P   60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P  60FPS/800x600P 60FPS/600x480P 60FPS

Power Output:
- DC12V 1A output: DC12V 1A power output, supply temporarily power for camera
- DC5V 1A output: DC5V 1A power output, support reading USB disk

Cable Test:
- Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * (Optional)
- UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end  and far-end fault point of the network cable crystal head.

Audio Test:
- 1 channel audio signal input, test whether sound normal.

Power management:
- Display DC 12V input & output voltage and power in real time

Data monitor:
- Catches and analyzes the command data from controlling device, also can send hexadecimal

External power supply:
- DC 5V 2A

Rechargeable:
- Charging 4 hour

Operation setting:
- OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc.

Other Parameters:
- Auto off: 1 to 30 (mins)
- Working Temperature: -10℃ to 50℃
- Working Humidity: 30%-90%
- Dimensions: 184mm x 110mm x 41mm

Package Included:
- 1 x Set of CCTV Tester Monitor
