Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $185.13 | $181.35 | $175.69 | $168.13 | Contact US |

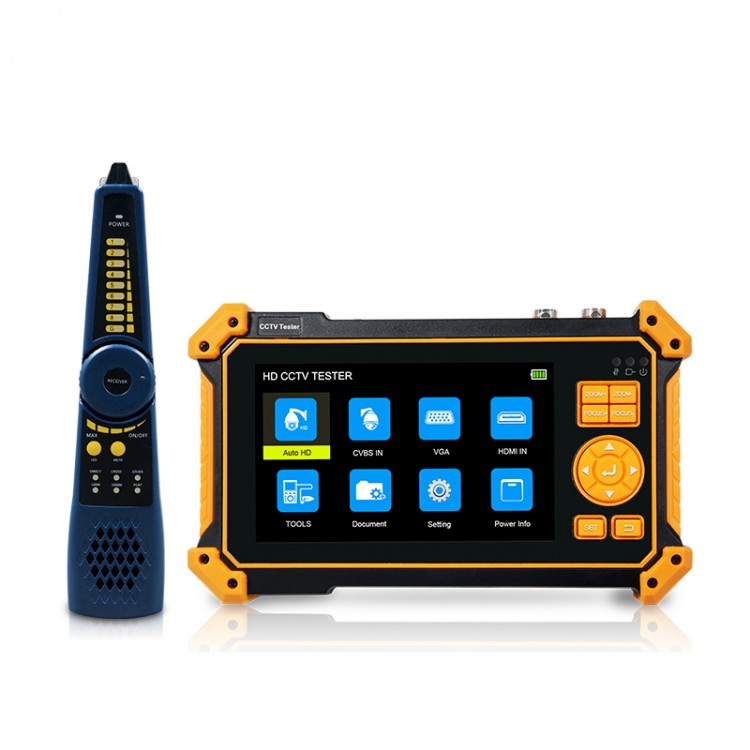

HD-3200 CCTV Tester Camera Tester 8MP CVI/TVI/AHD/SDI Support VGA Input HDMI Input 4K + Cable Tracker
Features:
● 5 inch TFT-LCD screen, 800*480 resolution
● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI camera test
● VGA input, support 1920 x 1200 60FPS
● HDMI input, support 4K 30FPS
● DC12V 1A power output
● DC 5V 1A power output, support reading USB disk
● Auto HD, auto recognize HD coax camera type and resolution
● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Camera Test:
● 5 inch TFT-LCD screen, 800*480 resolution
● Analog camera test, PTZ controller
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu
● VGA input, up to 1920X1200 60FPS, support snapshot, video record & playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback
● Rapid ONVIF, Auto log in and display image, create testing report
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable Test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time
Other Functions:
● Media player, video files and MKV/MP4 media files play
● High brightness LED light
● Audio in, test whether sound normal.
● Power manager function, view 12V supply voltage and power in real time, can detect whether the voltage and power of DC 12V power output is normal.
● 4 hours charging
Package Included:
- 1 x Set of CCTV Tester with Cable Tracker
