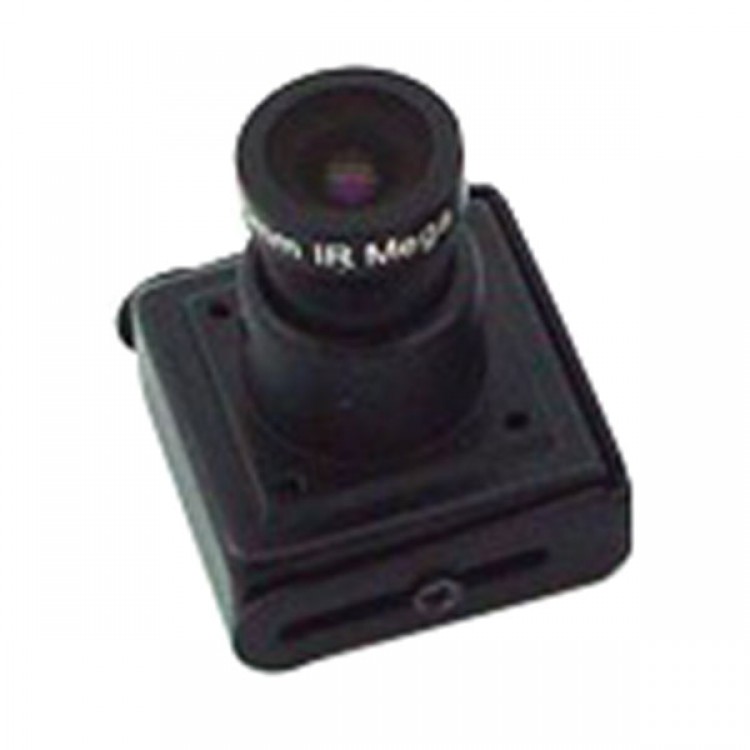

HD FPV SONY CCD Cables to 700 Micro Aerial Camera the Real 700 Low Illumination

HD FPV SONY CCD Cables to 700 Micro Aerial Camera the Real 700 Low Illumination

Description
- The real 700 line!Can withstand any test!
- SONY Effio E latest chip solutions, and support the OSD menu control, image clarity is exquisite, vivid, low intensity of illumination, wide voltage, micro power consumption.
- CCD type: a third "Sony 960 h Exview HAD CCD II
- Product name:SONY 700 line
- Shell size: 35 mm * 35 mm (32 circuit board), 50 grams of weight: (metal shell)
- Pixel:PAL: 752 * 582 (H) (V) NTSC: 768 (H) * 494 (V)
- Signal system: PAL/NTSC
- Level of resolution (center) : 700 TVL
- Digital noise reduction: 2 d digital noise reduction (DNR) support 16 grades can be adjusted from - 0 to 15
- The OSD menu: support
- Minimum illumination: 0.01 LUX/pro series
- Signal-to-noise ratio: 48 db or higher
- Video output range: 1.0 the Vp - p / 75 Ω
- Automatic gain control: 0.25/0.50/0.75/1.00 four level is adjustable, can be a maximum of 55 db
- The white balance method: open/close can choose
- Backlight compensation mode: high brightness backlight compensation(HLC)/ backlight compensation
- Exposure modes: electronic exposure
- Electronic shutter: 1/50 (1/60) - 1/100000 of a second
- Gamma correction: 0.45/1.0
- Synchronously, the synchronization
- Lens: the standard 3.6 mm lens
- Working voltage: DC12V(wide voltage, the measured 7.5 13 v can work normally)
- Working current: 70 ma(low power)
- Working temperature: - 20 °, 60 °
- Custom 3 d display links

Package includes:
- Camera x 1
- Connecting wire x 1
