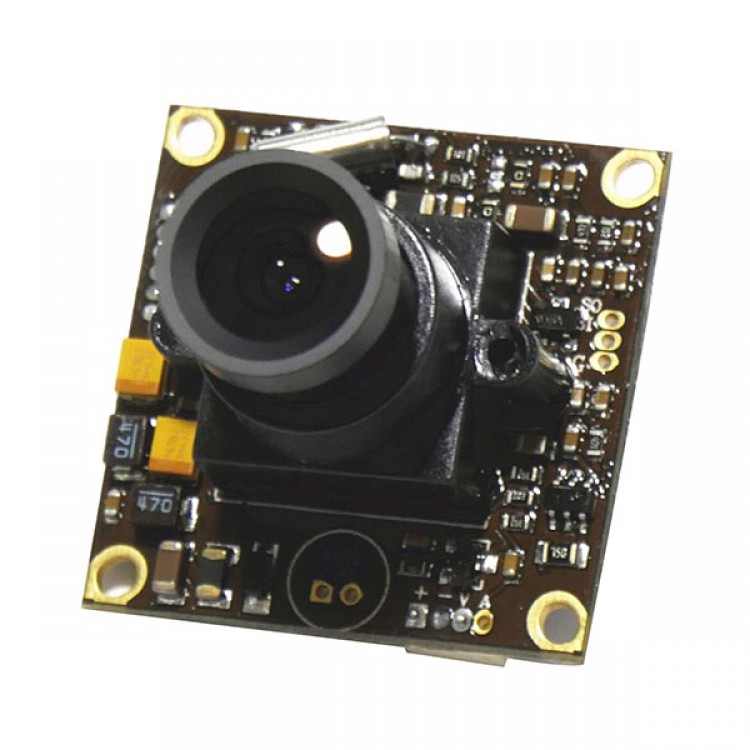

HD Light Weight Sony 700 Cable CCD 2.8mm Focus Camera for Fixed Wing Multicopter FPV Quadcopter
Description:
- Specially designed for fixed wing, multicopter, the super light weight Sony 700 cable CCD, can also be used at night
- Default adopting high quality 2.8mm camera
- OSD setting cable is not included
- Sony newest Effio-E chip, support OSD menu control, clear image, wide voltaeg, micro consumption, wide dynamic
- CCD type: 1/3" Sony 960H Exview HAD CCD II
- Dimension: 32*32mm,
- Weight: 13g
- Total pixel: 1020H×596V (0.61 million pixel ) NTSC: 1020H×508V (0.52 million pixel )
- Available pixel: PAL: 976H×582V (0.57 million pixel) NTSC: 976H×494V (0.48 million pixel )
- Signal format: PAL/NTSC (default PAL format, can choose NTSC format )
- Defintion (level center): 700TVL
- Digital reducing noises: 2DNR support 0-15 16 degree adjustable
- Wide dynamic: digital wide dynamic
- OSD menu: support
- Lowest illuminance: 0.01LUX/F1.2
- SNR: ≥48dB
- Video output range: 1.0Vp-p/75Ω
- Automatic gainning control: 0.25/0.50/0.75/1.00
- White balance way: ON/OFF
- Exposure mode: electric exposure
- Electric shutter: 1/50(1/60) - 1/100000 sec
- Gamma correction: 0.45/1.0
- Camera: 3.6mm
- Working voltage: DC12V
- Working current: 70mA
- Working temp: -20℃--60℃
- Humidity: 0-98 %
