HD242 40MHz Handheld Digital Oscilloscope Multimeter with 3.5-inch LCD Display for OWON HDS200 Series

Availability: In stock, usually dispatched in 1 business day

  • Price:$137.57
  • Price in reward points: 1376 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $134.82 $132.07 $127.94 $122.44 Contact US
Quantity:

HD242 40MHz Handheld Digital Oscilloscope Multimeter with 3.5-inch LCD Display Signal for OWON HDS200 Series

Function:

- Oscilloscope + multimeter , multifunction in one
- 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
- 18650 lithium battery, comprehensive power consumption ≤3W, can work continuously for about 6 hours
- USB Type-C interface, support power bank, support PC software connection
- Self-calibration function
- SCPI supported, facilitate secondary development

Features:
- The 2-in-1 versatile unit combines the function of oscilloscope and multimeter in one.
- 3.5 inches color LCD display, bright and clear to read for waveform details even out of doors.
2CH dual channels input, bandwidth up to 70 MHz, real-time sampling rate is 250MSa/s.

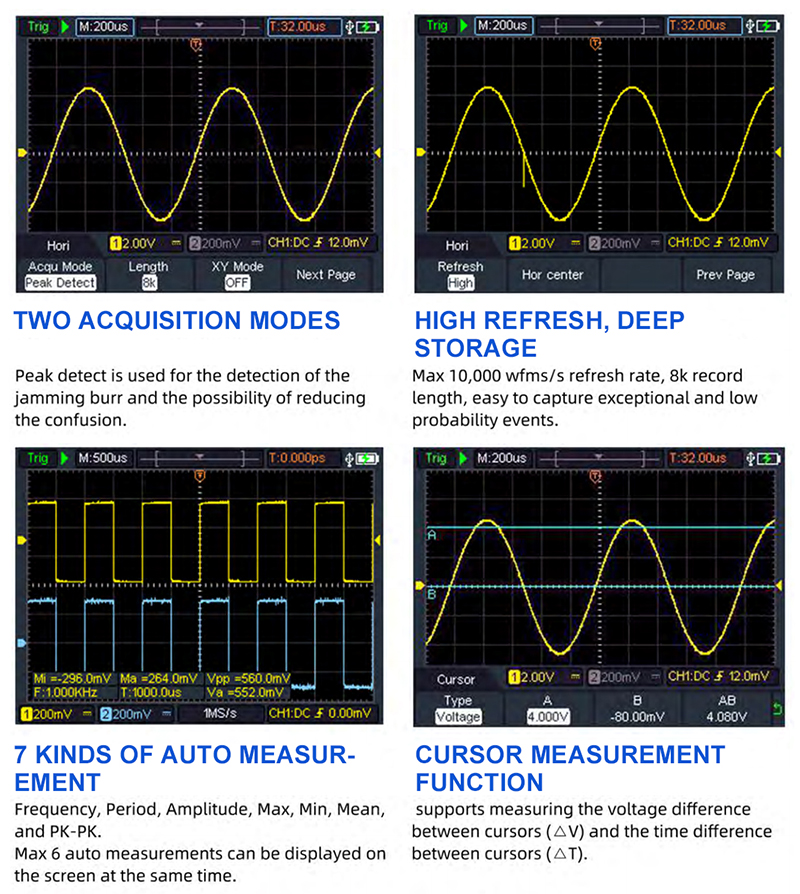

- Maximum 8K record length, and 10000wfms/s refresh rate, easy to capture exceptional and low probability events.
- Easy to use, provided with 7 kinds of auto measurement - frequency, period, amplitude, max, min, mean, and PK-PK, perfect for professionals and novices.
- More functions of the oscilloscope - cursor measurement, XY mode, and data save.
- 20,000 counts true-RMS multimeter able to measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and continuity.
- Support maximum AC 750V, DC 1000V input voltage. Auto-ranging function, easy to detect and debug.
- More functions of the multimeter - data hold, and relative measurement.

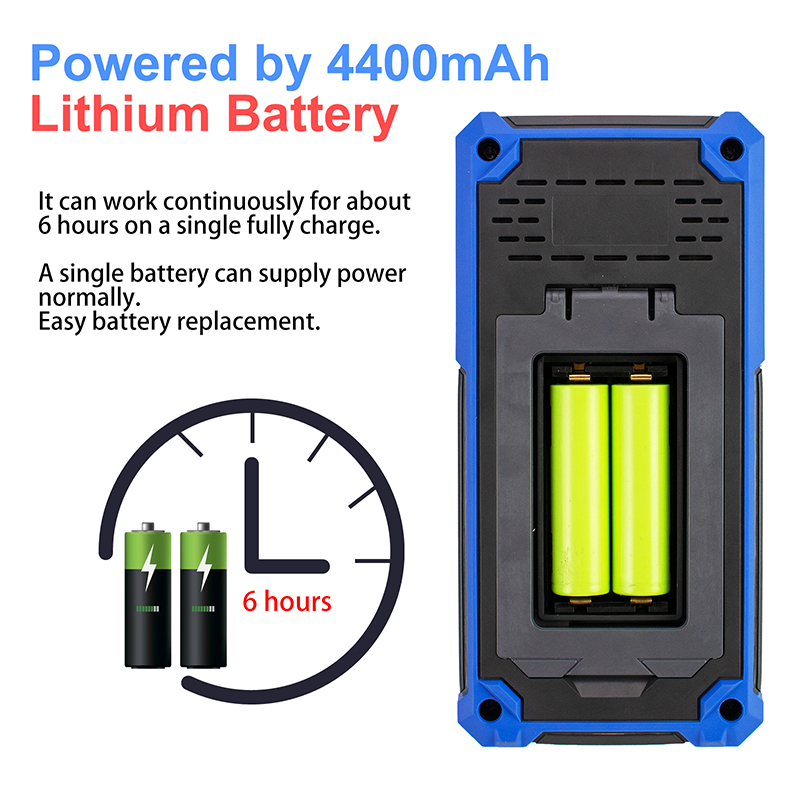

- Powered by 4400mAh lithium battery, it can work continuously for about 6 hours on a single fully charge.

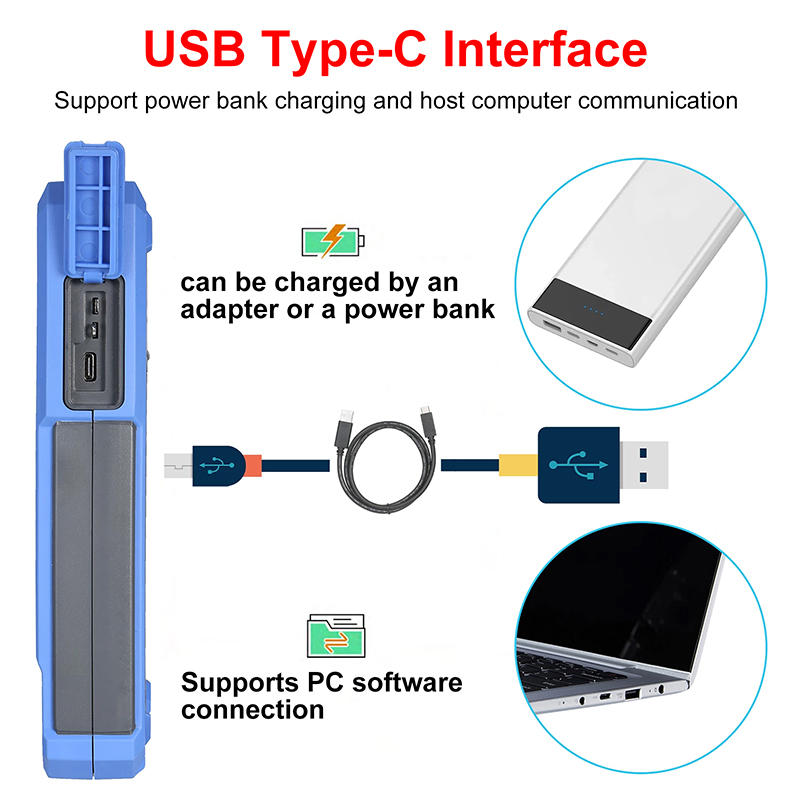

- USB type-C interface can be charged by an adapter or a power bank, and supports PC software connection.
- Compact and portable for travel, with solid kickstand on the back for easy reading on workbench.
- Applied for the maintenance of sound systems, electronics, automobile, transceiver, etc.

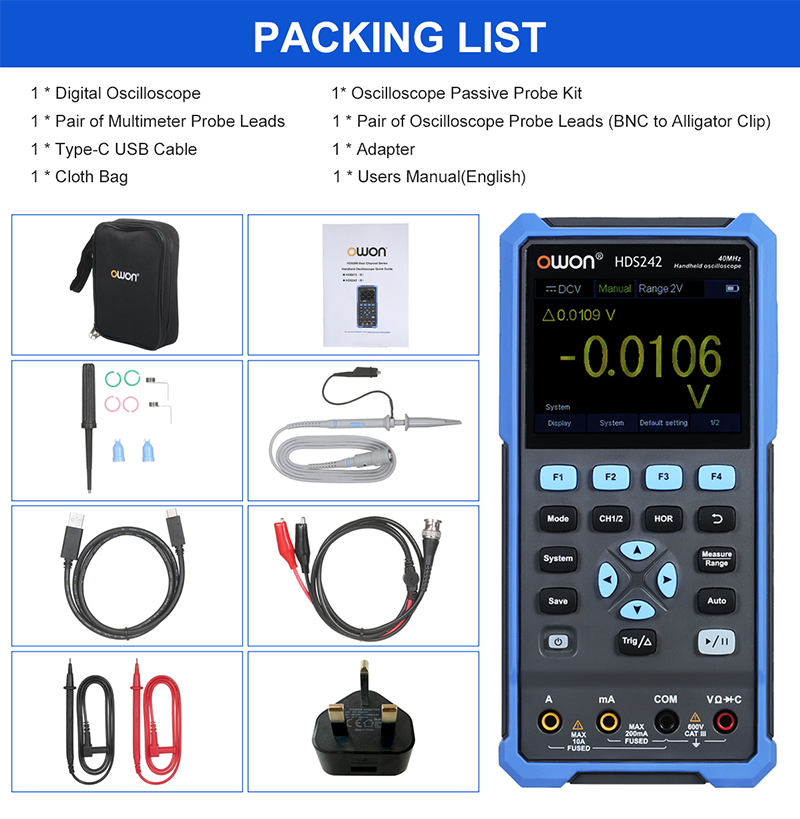

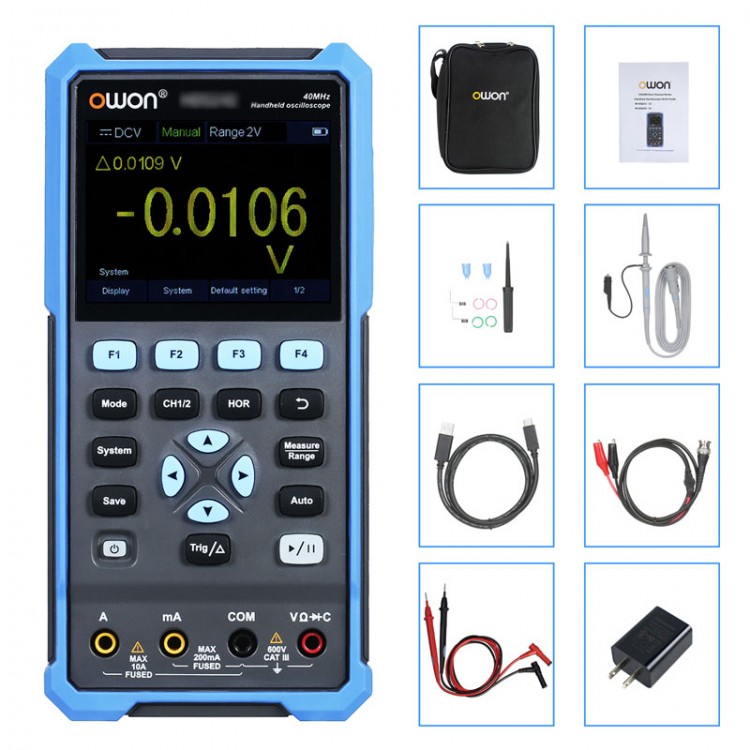

Package Included:
- 1 x Host
- 1 x Pair of Multimeter Probe Leads
- 1 x Type-C USB Cable

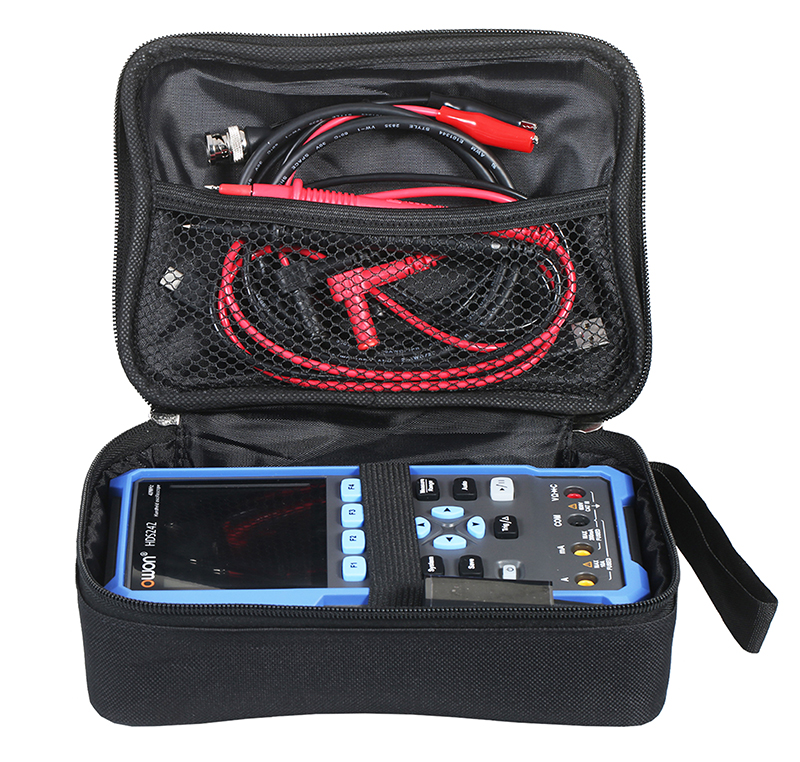

- 1 x Cloth Bag
- 1 x Oscilloscope Passive Probe Kit
- 1 x Pair of Oscilloscope Probe Leads (BNC to Alligator Clip)
- 1 x Adapter
- 1 x Users Manual
