HD702E 7" EDP HD Capacitive Touch Screen 800x1280 Display + Cable + Acrylic Shell For NanoPC-T4
Introduction:

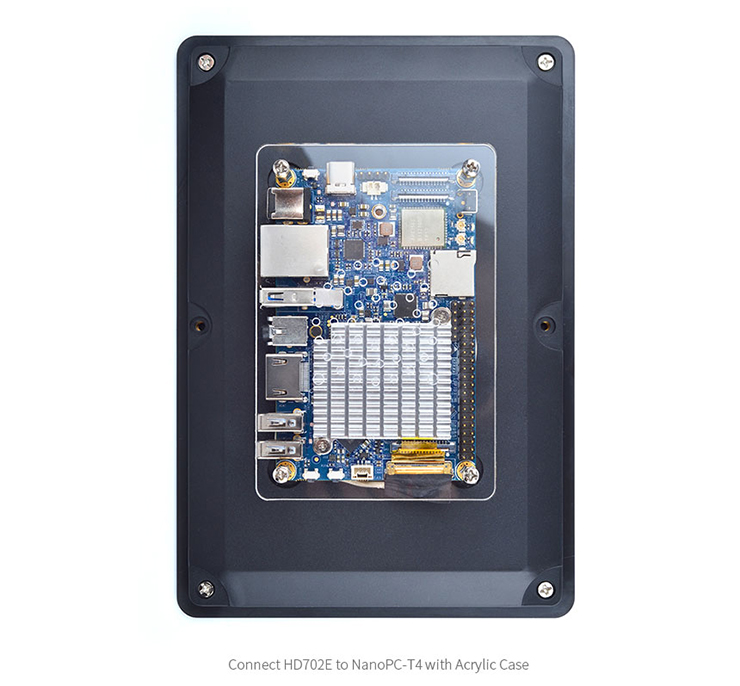

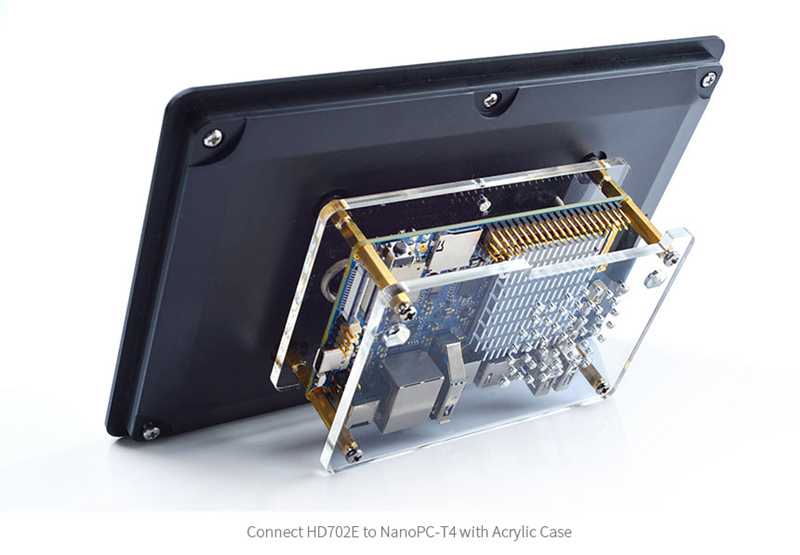

HD702E LCD is an eDP LCD with capacitive touch panel. Its resolution is800x 1280. Its backlight is adjustable via PWM. It is suitable for Friendly ELEC's NanoPC-T4 board for Android and Lubuntu. Its driver is open-source. It uses a regular 30-pin receptacle connector (I-PEX-20455-030E).
The HD702E has a black bezel with mounting holes making it easily deployed in various situations.
Specifications:
- Model: HD702E
- Interface: eDP
- Display Area: 94.2 (H) x 150.72 (V) (mm) (7-inch diagonal)
- CF Glass Dimension: 99.9 (H) x 155.42 (V) (mm)
- TFT Glass Dimension: 102.1 (H) x 158.92 (V)(mm)
- Number of Pixels: 800 x 3 (H) x 1280 (V)
- Pixel Pitch: 0.11775(H) x 0.11775(V) (mm)
- Color Pixel Arrangement: RGB vertical stripe
- Driving Method: TFT Active Matrix
- Display Mode: Normally black
- Number of Colors: 262, 144 (6bits) /16.7M (8bits)
- Transmittance: 3.37 (Min) /3.66 (Typ.)
- Response Time: 50ms (Max.)
- OS Support: for Android/Lubuntu
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
