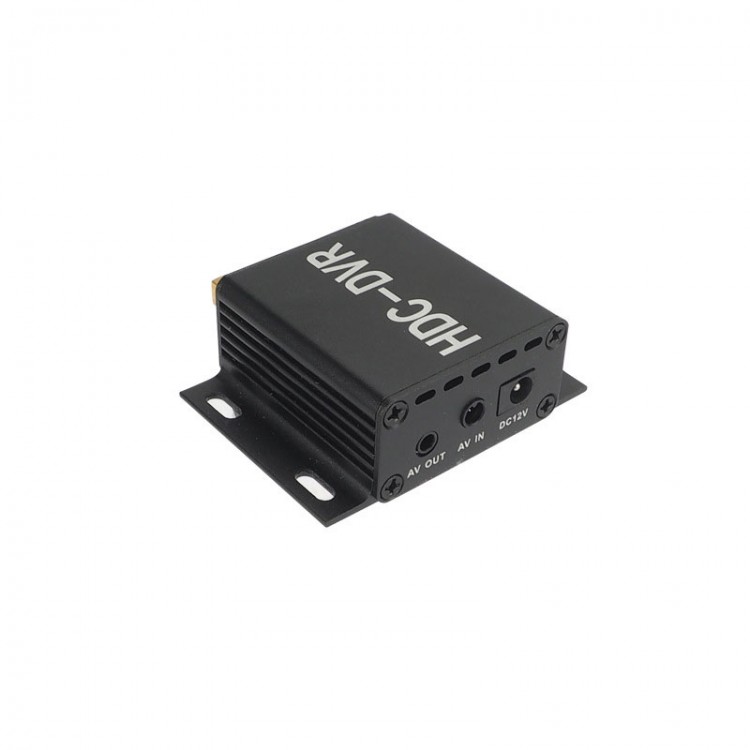

HDC-DVR HD Video Record DVR with Hotspot Support WiFi Remote Control Insertion Card Video Monitor

HDC-DVR HD Video Record DVR with Hotspot Support WiFi Remote Control Insertion Card Video Monitor

Features:
- WiFi function:
  If the device is connected to a router, and mobile phones and computers can remotely view real-time videos, replay and download recordings.
  If the device is not connected to a router, and mobile phones and computers can be connected through hotspots to view real-time videos, replay and download videos, and monitor without a network.
- Video input: 12 video input modes for device automatic recognition.
- The device is equipped with a backup battery. If the power is suddenly cut off, the recording will be saved first and then automatically shut down, which will not cause the last video data to be damaged and unable to be played back. After the power outage, the clock continued to operate. Sudden power outage does not change the parameter settings.

Specification:
- Model: HDC-DVR
- Processor system: for Linux
- Video encoder decoding: H.265 by default, H.264/H.265 can be set
- Video input: 1-channel arbitrary AHD/TVI/CVI, 720P/1080P, PAL/NSTC automatic recognition
- Video bit stream: (it can be set)
  Default main bitstream: H.265_1080P at 3000kbps/second
  +H.265_720P at 1500kbps/second, the resolution depends on the input camera
  Sub bitstream: H.265_640 x 360 at 368kbps/second
- Video frame rate: 30fps/25fps, depends on the input camera
- Recording resolution: 1080P/720P, main bitstream by default, which can be set.
- Video output: loop output
- Audio encoder decoding: G711A
- Audio sampling rate: 64kbps
- Audio sampling bit: 16-bit
- Audio input: analog audio source input
- Audio output: intercom output
- Memory card: maximum support 356GB TF card
- Video motion detection: support, trigger recording for 3 minutes
- Anthropomorphic detection: in developing
- Detection prerecording: 5 seconds before triggering prerecording
- Recording automatic coverage: support
- Onvif: support
- rtsp: support
- WiFi frequency: 2.4G
- WiFi transmission range: 100 square meter
- Power input: DC5-30V 1A
- Power output: same as input
- Host power consumption: 1.8W
- Size: 71 x 53.8 x 25mm
- Weight: 0.1KG

Resolution: 1920 x 1080
- Code rate: 3000kbps/s
- M/hour: 1024M/h
- 128G duration: about 5 days

Resolution: 1280 x 720
- Code rate: 1500kbps/s
- M/hour: 565M/h
- 128G duration: about 9 days

Resolution: 640 x 360
- Code rate: 368kbps/s
- M/hour: 92M/h
- 128G duration: about two months

Note:
- Please contact our customer service for providing the cellphone APP or PC software after you receiving the product.

Package Included:
- 1 x Host
- 1 x Antenna
- 2 x Adapter Cable
- 1 x User Manual
