HDM-944F Matrix Switcher 4x4 Video Processing HDMI/VGA/AV Mixed Inputs

HDM-944F Matrix Switcher 4x4 Video Processing  HDMI/VGA/AV Mixed Inputs

Product Description:
- The matrix switcher is a high-performance with seamless switching output and mixed input 4x4 matrix switcher,4 mixed input to support digital video signals and analog video signal,and 4 outputs with seamless switching function,seamless switching mode:fast switching,fade in/fade out,blinds and so on;the mixing matrix switcher adopts the advanced digital technology,with scaler function,and achieve a variety of formats to achieve a unified output signal, switching seamlessly perfect visual effects.
- At the same time it with infrared matrix function,analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control,RS-232 and TCP/IP control.
- As a video wall processor,the matrix switcher is able to zoom in one input image four times to the outputs.And as a Multi-viewer processor, the matrix switcher can mix inputs with any combos to one image, and then transfer to all the outputs.

Features:
- Compliant HDMI1.3,HDCP1.3 and DVI1.0
- Input video supports HDMI,VGA and C-video
- Supports output resolutions:1920x1080P@60Hz
- Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and so on
- The RS-232 for the firmware update
- Supports RS-232,remote control,on-panel control and TCP/IP Control
- Supports smart EDID management
- Picture Adjustment Settings
- Automatically adjust the VGA input video
- Supports power-off memory

Supports input resolutions:
- HDMI: 480i to 1080p
- VGA:1920 x 1080P@60Hz,1360 x 768P@60Hz,1280 x 1024P@60Hz,1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz,800 x 600@60Hz,
640 x 480P@60Hz
- CV:Supports PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats

Specifications:

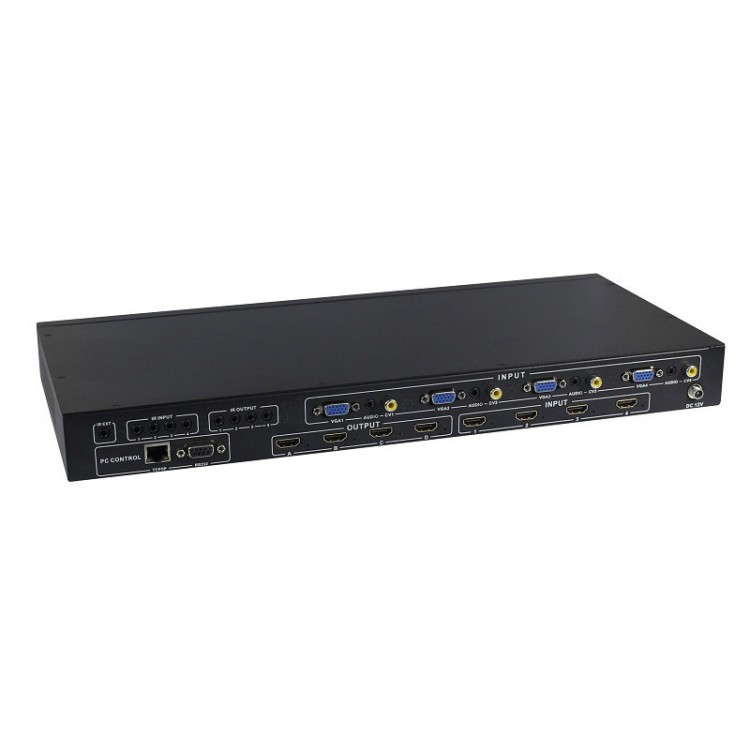

- Input Ports:4×HDMI,4xVGA,4xRCA,1×RS-232,1xRJ-45(Control),5×IR INPUT,4xAudio
- Output Ports:4×HDMI, 4xIR OUTPUT
- Input Resolutions Support:Up to 1920x1080P@60Hz
- Output Resolutions Support:Up to 1920x1080P@60Hz
- Control:IR,RS-232,TCP/TP,Buttons
- ESD Protection:Human-body Model:±8kV(Air-gap discharge);± 4kV (Contact discharge)
- Power Supply:12 V/2.5 A DC (US/EU standards,CE/FCC/UL certified)
- Dimensions:440X200X44.5mm (WxDxH)
- Weight:2380 g
- Chassis Material:Metal
- Silkscreen Color:Black
- Operating Temperature:0 ºC~40 ºC/32 ºF~104 ºF
- Storage Temperature:−20 ºC~60 ºC/−4 ºF~140 ºF
- Relative Humidity:20~90 % RH (non-condensing)
- Power Consumption:13.5 W(Max)/1.2W(Standby)

Package List:
- 1 x HDMI 4 x4 mixed inputs seamless matrix switcher
- 1 x 12V/2.5A DC power adaptor
- 1 x Operation Manual
- 4 x Wideband IR Tx cable
- 5 x Wideband IR Rx cable
- 1 x Mixed Matrix IR Remote
- 2 x Mounting ears
- 1 x RS232 cable
