Introduction
- The HDMI matrix 6x2 with 4kx2k supported which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/ sink scenarios can be operated easily through on-panel buttons, IR remote control.

Features
- Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0.
- HDMI 1.4 support: Audio Return Channel (ARC), 3D TV support, CEC1.4.
- Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
- Support MHL input, Share your smart phone photos, music and movies on the TV.
- Support PIP display function.
- Audio support: HDMI 1.4 compatible audio interface Dolby TrueHD DTS-HD Master Audio 7.1CH
- Full audio input and output support

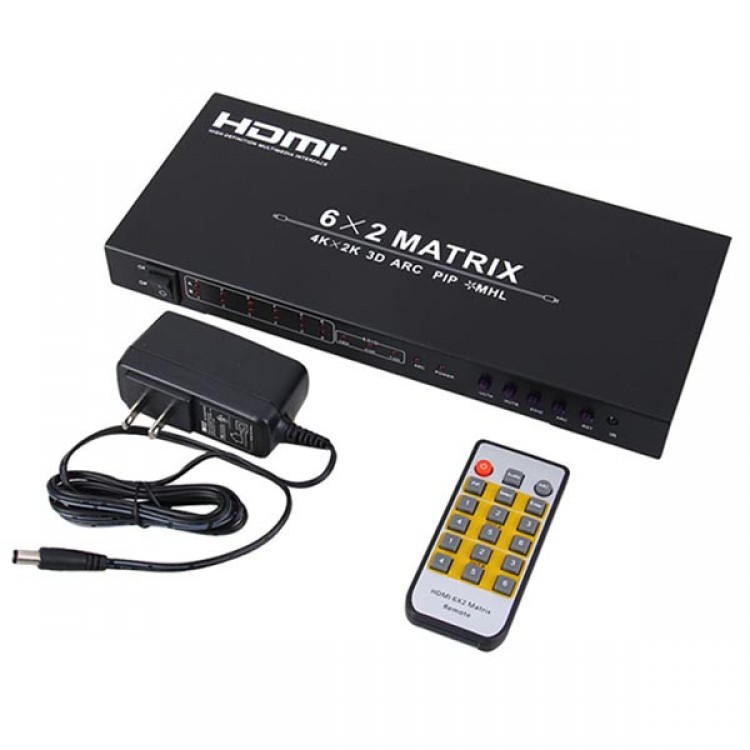

Package
- HDMI 1.4 Matrix 6*2------------------------------1PC
- 5V DC Power Supply Adapter---------------------1PC
- Remote control---------------------------------------1PC
- Operation Manual ----------------------------------1PC
- MHL to HDMI Cable (optional)

Specifications
- Frequency Bandwidth          2.97Gbps
- Input Ports                6 x HDMI  Female.
- Output port                2 x HDMI Female; 1x Toslink,1x Earphone
- HDMI Audio Output          PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
- Power Supply                5V/1A DC (US/EU standards, CE/FCC/UL certified)
- ESD Protection          Human Body Model:    ± 8kV (air-gap discharge)  ± 4kV (contact discharge)
- Dimensions (mm)          250(D) x110 (W) x 26(H)
- Weight (g)                720
- Power Consumption(max)    5W
- Operating Temperature      0˚C ~ 40˚C / 32˚F ~ 104˚F
- Storage Temperature          -20˚C ~ 60˚C / -4˚F ~ 140˚F

Operation controls and Functions
Front Panel
- ON/OFF: Power on/off switch.
- Input LED: These red LED illuminate when the output select to the corresponding input.
- Audio EDID LED: These red LED illuminate when the audio EDID select to corresponding audio.
- ARC LED: This red LED illuminate when the ARC function open.
- POWER LED: This red LED illuminate when the device is connected with power supply.
- OUTA: Press this button to select the input source to HDMI OUT A.
- OUTB: Press this button to select the input source to HDMI OUT B.
- EDID: Press this button to select the 2.0CH,5.1CH,7.1CH audio output mode.
- ARC：Press this button to open or close the ARC function.
- RST: Press this button the matrix will reset to factory state(INPUT1, 2.0CH AUDIO MODE,ARC function closed)

Rear Panel
- Input Source: These slots are where you connect the HDMI source output from DVD, PS3.
- HDMI OUT: This slot is where you connect the HDTV or monitor with HDMI cable.
- Toslink OUT: This slot is where you connect to the amplifier with optical fiber cable.
- Stereo OUT: This slot is where you connect to the speaker with 3.5mm earphone cable.
- DC IN: Plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.

Attention:
- The Toslink and Stereo audio follow the OUT A HDMI audio.
- The In6 support MHL input only,use MHL to HDMI Cable to connect smart phone and matrix.

Remote control
- STANDBY: Press this button will standby or power on the matrix.
- Audio EDID: Press this button will Select the audio output
- mode (2.0CH,5.1CH,7.1CH), and the LED will indicate the corresponding state .
- ARC: Press this button will Open or close the ARC function and the LED will indicate the corresponding state.
- PIP: Press this button will Open or close the PIP function. The PIP function can only work when OUTA and OUTB select the same input source.
- Select: Press this button will select the PIP source.
- Enter: Press this button will confirm the select PIP source.
- OUTA: Press these button will fast switch to select input source to HDMI OUTA. and the LED will indicate the corresponding input source.
- OUTB: Press these button will fast switch to select input source to HDMI OUTB. and the LED will indicate the corresponding input source.
- ARC function: If you need use ARC, your HDTV must support this function, When you open the ARC function, the Toslink of the Matrix will output the HDTV current display content audio. Otherwise will output the Matrix input source audio.
