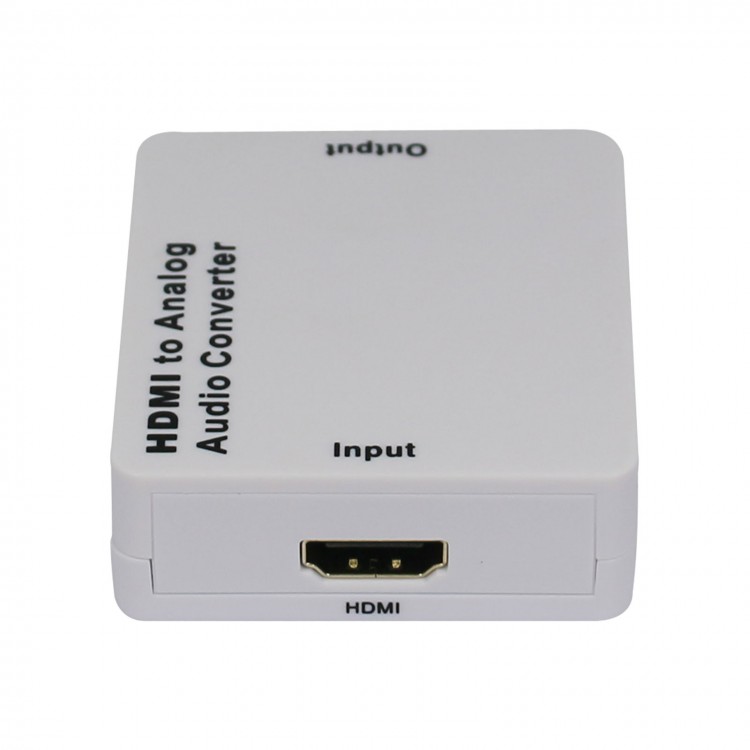

HDM to Analog Audio Converter for Home Professional Audio Switching

HDM to Analog Audio Converter for Home Professional Audio Switching

Introduction
- This HDMI to Analog Audio Converter is designed for either home or professional audio switching. It converts digital HDMI signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and an headphone via an earphone jacks. This Converter is small in size and quite easy to install.
Features
- Converts HDMI digital audio signals to analog L/R audio
- Support PCM 32K,44.1K,48K,88.2K,96K,176.4K,192KHz sample frequency audio
- Provides electromagnetic-noise-free transmission.
- Compliant with HDMI1.3.
- Easy to install and simple to operate.

Package
- HDMI to analog Audio Converter       1PCS
- USB to mini USB Cable               1PCS
- Operation Manual                    1PCS

Specifications
- Input Ports               1 x HDMI Female port.
- Output port               1x RCA,1x headphone
- Dimensions (mm)         66(D) x55(W) x20(H)
- Weight (g)                40
- Operating Temperature          0˚C ~ 40˚C / 32˚F ~ 104˚F
- Storage Temperature          -20˚C ~ 60˚C / -4˚F ~ 140˚F

Operation controls and Fuctions
- Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
- Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the Converter HDMI input.
- Connect an amplifier or headphone to the audio output on the Converter.
- Power on the device and display.
- Attention: The converter is a low-power product,it can work normally in most cases.But when the source power is not enough,the converter may work in abnormal condition,the audio output may be flicker，In this condition,please connect the USB cable from the convert mini USB port to source equipment USB port for Power in.
