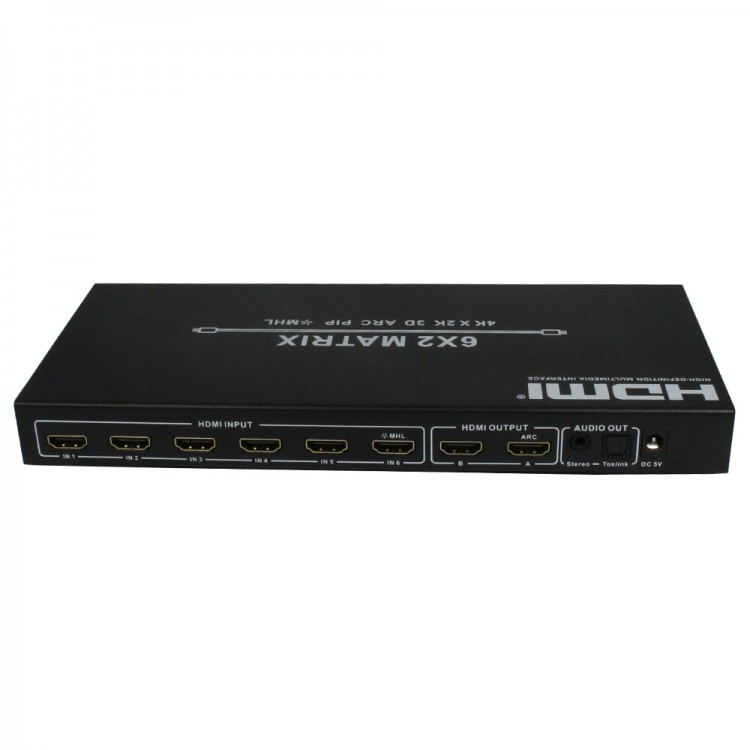

HDMI 1.4 Matrix 6x2 Switch Adapter 6 Input 2 Output 4K 3D PIP for XBOX STB HD Player Phone to HDMI Monitor HDM-962U

HDMI 1.4 Matrix 6x2 Switch Adapter 6 Input 2 Output 4K 3D PIP for XBOX STB HD Player Phone to HDMI Monitor HDM-962U

User manaul: Click here

Introduction
The HDMI matrix 6*2 with 4kx2k supported which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/ sink scenarios can be operated easily through on-panel buttons, IR remote control.

Features
- Compliant with HDMI 2.0; HDCP2.2
- Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0, 3D frame sequential video format up to 1080p@60
- Support MHL input, Share your smart phone photos, music and movies on the TV.
- Support PIP display function and ARC function.
- Audio support: HDMI 1.4 compatible audio interface Dolby TrueHD DTS-HD Master Audio 7.1CH

Specifications
- Frequency Bandwidth:  2.97Gbps
- Input Ports:  6 x HDMI Female.
- Output ports:  2 x HDMI Female; 1x Toslink; 1x Earphone
- HDMI Audio Output:  PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
- Power Supply:  5V/2A DC (US/EU standards, CE/FCC/UL certified)
- ESD Protection:  Human Body Model:    ± 8kV (air-gap discharge); ± 4kV (contact discharge)
- Dimensions (mm):  250(D) x110 (W) x 26(H)
- Weight (g):  720
- Power Consumption(max):  10W
- - Operating Temperature:  0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature:  -20˚C ~ 60˚C / -4˚F ~ 140˚F

Package
- HDMI 1.4 Matrix 6*2  1PC
- 5V/2A DC Power Supply Adapter   1PC
- Remote control   1PC
- Operation Manual  1PC
- Mounting ears    2PCS
