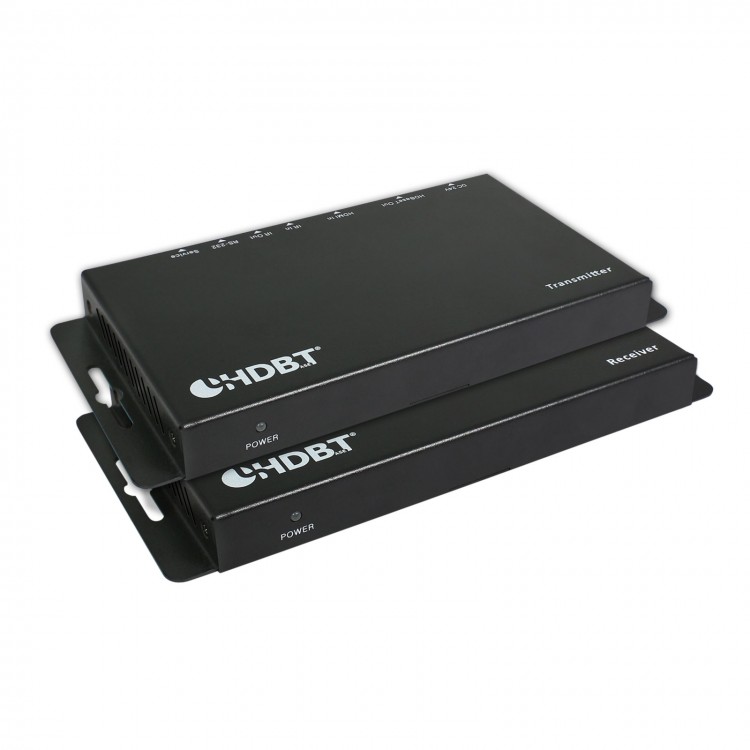

HDMI 18Gbps Extender over Cat5e/Cat6 Transmitter Receiver Signal Convert Transfer 70M HBT-B70

HDMI 18Gbps Extender over Cat5e/Cat6 Transmitter Receiver Signal Convert Transfer 70M HBT-B70

rtu

Introduction:
- The 18Gbps HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display.It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable.
- It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal,so you can control the Source in the Sink side which is 230fts outside,also you can control the Sink in the Source side which is 230fts outside by using the HDMI Extender.

Features:
1.HDMI 2.0b (18Gbps),HDCP 2.2 and DVI compliant
2.Video resolutions up to 4K2K@50/60Hz (YUV444)
3.10bits HDR (High Dynamic Range) pass through
4.Supports HDMI High Bit Rate(HBR) audio pass through
5.Supports CEC bypass
6.Optical audio supports LPCM 2CH,Dobly Digital 2/5.1CH, DTS 2/5.1CH
7.POC (Power Over Cable) function is supported,either TX or RX is powered by24V@1A power supply,the another does not need power supply from the DC jack.POC Power consumption is less than 10W.

Specifications:
- HDMI Compliance:HDMI 2.0b
- HDCP Compliance:HDCP 2.2 and HDCP 1.4
- Video Bandwidth:18 Gbps

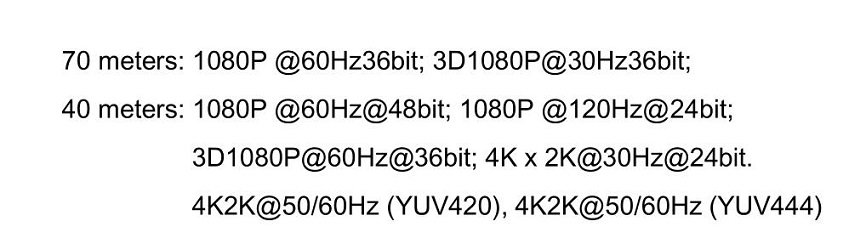

- Video Resolutions:up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
- Color Space:RGB,YCbCr 4:4:4,YCbCr 4:2:2
- Color Depth:10-bit, 12-bit
- Housing:Metal Enclosure
- Color:Black
- Dimensions:157x90x20mm(WxDxH)
- Weight:333G
- Power Supply:Input: AC100 - 240V 50/60Hz;Output: DC 24V/1A(US/EU standards,CE/FCC/UL certified)
- Power Consumption:24W (Max)
- Operation Temperature:32 -104°F/0- 40°C
- Storage temperature:-4 -140°F/-20- 60°C
- Relative Humidity:20 - 90% RH (no condensation)

HDMI Audio Formats: (Pass-through):LPCM 2/5.1/7.1CH,Dolby Digital,DTS 5.1,Dolby Digital+,Dolby TrueHD,DTS-HD Master Audio,Dolby Atmos, DTS:X

Optical Audio Formats: LPCM 2CH, LPCM 5.1,Dolby Digital 2/5.1CH,TS 2/5.1CH

ESD Protection: Human body model —;±8kV (air-gap discharge);±4kV (contact discharge)

Inputs:
- Transmitter:1x HDMI Type A [19-pin female]
              1x IR INPUT [3.5mm Stereo Mini-jack]
              1x RS232 [Phoenix jack]
              1x Service [Mini-USB jack
- Receiver: 1x HDBaseT In [RJ45]
                 1x IR INPUT [3.5mm Stereo Mini-jack]
                 1x RS232 [Phoenix jack]
                 1x Service [Mini-USB jack]

Outputs:
- Transmitter: 1x HDBaseT Out [RJ45]
                     1x IR OUTPUT [3.5mm Stereo Mini-jack]
- Receiver: 1x HDMI Type A [19-pin female]
                  1x IR INPUT [3.5mm Stereo Mini-jack]

Package List:
- 1 x HDMI 18Gbps Transmitter
- 1 x HDMI 18Gbps Receiver
- 2 x Wideband IR Tx
- 2 x Wideband IR Rx
- 1 x 24V/1A Power Adaptor
- 1 x User manual
